M75-SA300-CLBZ — Intelligent Collaborator (Z-Series, Battery)

Part Numbers: M75-SA300-CLBZ

Summary

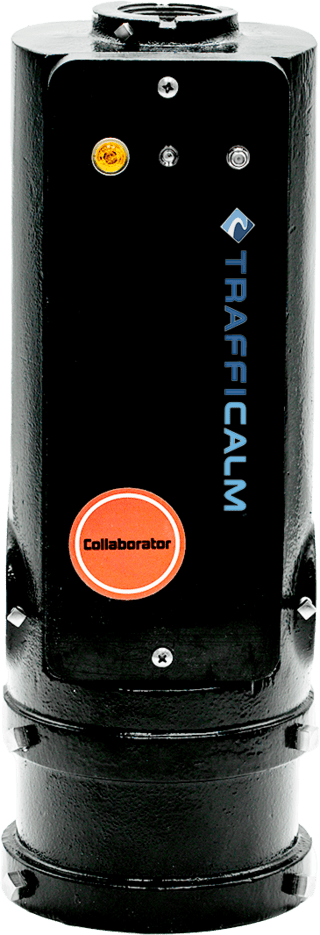

The M75-SA300-CLBZ is the Slimline Z-Series Intelligent Collaborator. It is used in multi-pole beacon installations where the CTLZ controller serves as the master and CLBZ units synchronize output across additional poles. It includes a concealed 43Ah AGM battery at the base of the pole.

Product Options

• M75-SA300-CLBZ

Specifications

Battery Storage

• 43Ah AGM battery stored in base of pole
• Battery tray and terminal mounting included

Collaborator Function

• Receives wireless commands from CTLZ controller
• Outputs: 2 outputs, 12W max total
• Mirrors the flash pattern of controller
• Supports confirmation light output if present

Connectivity / Interface

• Wireless activation
• Wireless range: 1000 ft line of sight
• TC-Connect interface with local access
• Synchronizes flash rate and dimming with controller
• Includes log reporting and system status monitoring

Housing & Mounting

• Slimline housing — mounts to top of 4.5” pole
• Hinged housing door
• Housing dimensions: 13.5”H × 13.5”W × 17”D
• Housing color options: black, yellow, or green
• Electronics are fully epoxy-potted

Environmental Rating

• Equipment operating range: −40°F to +140°F
• Battery operating range: −4°F to +122°F

Compatibility

• Works with all TraffiCalm Universal Beacons
• Integrates with RRFBs and LED rings
• Used for multi-pole synchronized beaconing

Warranty & Support

• 5-year limited warranty
• Unlimited US-based technical support

Ordering

• M75-SA300-CLBZ
