M75-SA300-CTLZ — Intelligent Controller (Z-Series, Battery)
Z-Series Slimline Controller: Wireless traffic beacon system with smart activation, 1000ft range, concealed battery
Updated
by Dylan Solberg
Part Numbers: M75-SA300-CTLZ
Summary

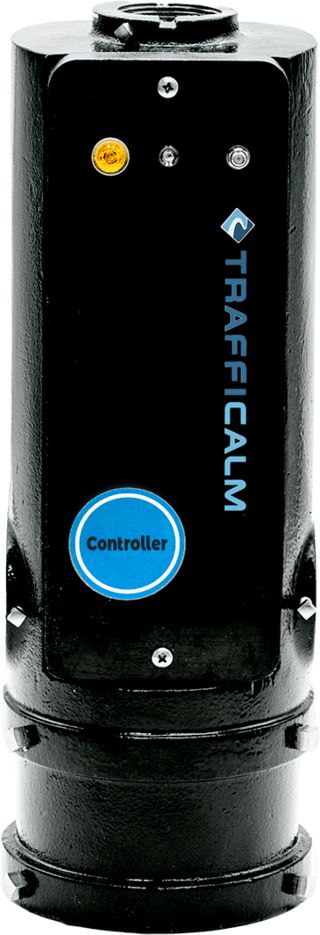

The M75-SA300-CTLZ is the Z-Series Slimline Intelligent Controller mounted at the top of the pole with internal electronics and wireless control capability. It includes a concealed 43Ah AGM battery located at the base of the pole and is designed to operate beacons and warning systems with minimal visual profile.
Product Options
- M75-SA300-CTLZ
Specifications
Battery Storage
- 43Ah AGM battery stored in base of pole
- Comes with battery tray and terminal wiring
Controller
- Inputs: 2 dry-contact input
- Outputs: 2 outputs, 12W max requirement
- Default flash: 1 flash/second to meet MUTCD
- Multiple flash pattern modes
- Accepts Smart Radar input
- Ambient light sensor — auto dimming
Connectivity / Interface
- TC-Connect Wi-Fi configuration
- Wireless activation
- Wireless range: 1000 ft line of sight
- On-screen status reporting
- Activation logs stored for at least 365 days
Housing & Mounting
- Slimline housing — mounts to top of 4.5” pole
- Hinged housing door
- Housing dimensions: 13.5”H × 13.5”W × 17”D
- Available in: black, yellow, or green
- All electronics fully epoxy-potted
Environmental Rating
- Equipment operating range: −40°F to +140°F
- Battery operating range: −4°F to +122°F
Compatibility
- Integrates with Universal Beacons, RRFBs, and LED sign rings
- Supports push button, radar, timer, and sensor activation
Warranty & Support
- 5-year limited warranty
- Unlimited US-based technical support
Ordering
- M75-SA300-CTLZ
