M75-SA30A-CTLZ — Intelligent Controller (Z-Series, AC Powered)
Slimline Z-Series AC Controller: Wireless traffic safety system w/ 1000 ft range, top-of-pole mounting
Updated
by Dylan Solberg
Part Numbers: M75-SA30A-CTLZ
Summary

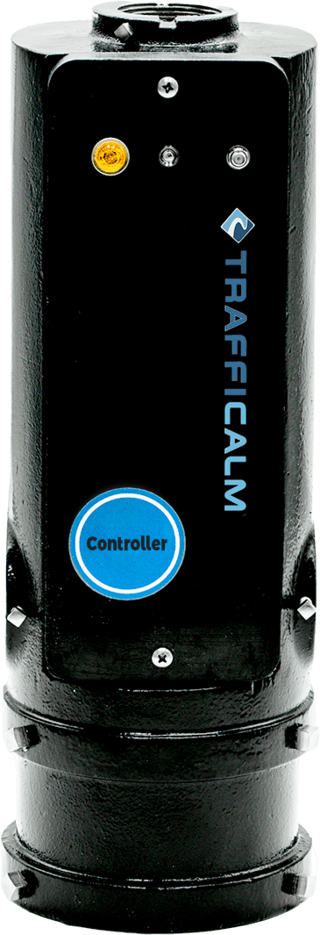

The M75-SA30A-CTLZ is the Slimline Z-Series Intelligent Controller configured for AC-powered installations. It operates without a battery or solar input and is designed for locations where wired AC power is available.
Product Options
- M75-SA30A-CTLZ
Specifications
Power
- AC powered
- No battery
- No solar panel
- Internal power conversion module
Controller
- Inputs: 2 dry-contact input
- Outputs: 2 outputs, 12W max requirement
- Default flash pattern: 1 flash/second
- Flash rate adjustment supported
- Accepts Smart Radar input
- Light-sensitive auto dimming supported
Connectivity / Interface
- TC-Connect local wireless setup
- Wireless beacon activation
- Wireless range: 1000 ft line of sight
- Local device diagnostics and reporting
- 365+ day activity logging
Housing & Mounting
- Slimline housing
- Top-of-pole mounted
- Housing dimensions: 13.5”H × 13.5”W × 17”D
- Enclosure available in black, yellow, or green
- Fully epoxy-potted electronics
Environmental Rating
- Equipment operating range: −40°F to +140°F
Compatibility
- Drives RRFB, Sign Rings, and Warning Beacon configurations
- Coordinates with Z-Series collaborators
Warranty & Support
- 5-year limited warranty
- Unlimited technical support
Ordering
- M75-SA30A-CTLZ
