M75-SA300-CLBE — Intelligent Collaborator (E-Series)

Part Numbers: M75-SA300-CLBE

MUTCD Sign Rings: If your controller is running firmware 401N or >, adjust brightness from 100% to 60%. Failure to do so will result in higher power draw and solar systems may fail.

Is my ring MUTCD?
There is a -M at the end of the model number for MUTCD compliant rings

Summary

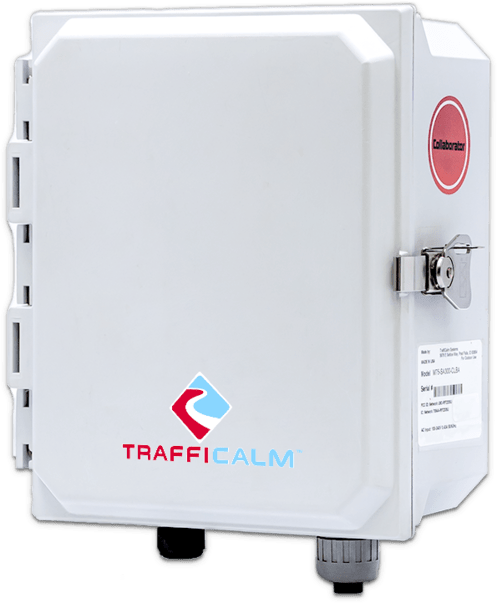

The M75-SA300-CLBE is the Intelligent Collaborator used in E-Series systems to extend multi-pole installations. It receives wireless activation from the Intelligent Controller and drives additional outputs, enabling synchronized flashing at additional posts.

Product Options

• M75-SA300-CLBE

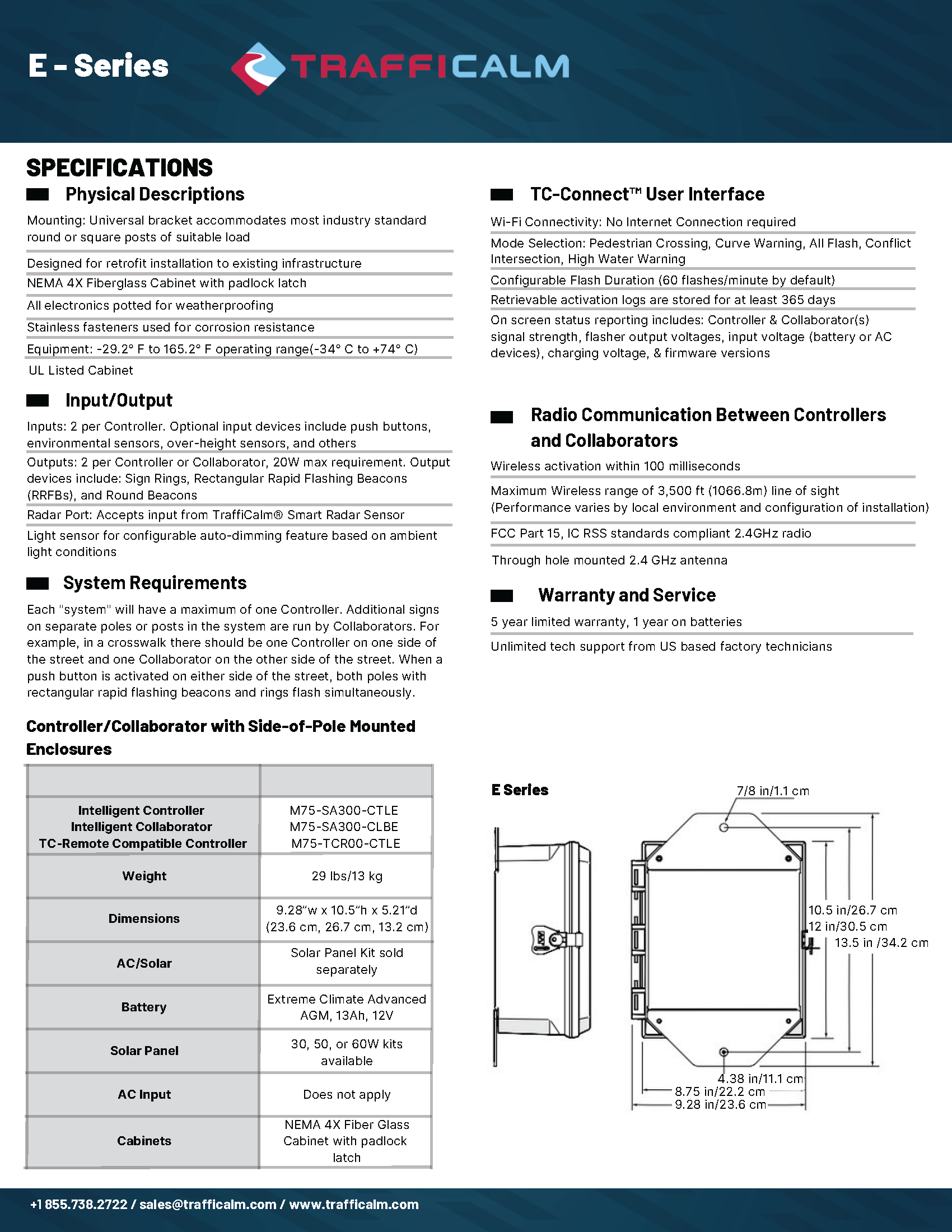

Specifications

Solar

• Solar panel kit sold separately
• Compatible with 30W / 50W / 60W solar kits

Battery Storage

• 13Ah, 12V AGM battery

Collaborator Function

• Receives wireless activation from master controller
• Drives local beacon or ring hardware
• Outputs: 2 output channels, 20W max requirement

Connectivity / Interface

• Communicates via 2.4 GHz wireless
• Wireless activation latency within 100 ms
• Wireless range up to 1000 ft, line of sight

Housing

• NEMA 4X fiberglass cabinet
• Fully potted electronics
• Stainless hardware
• Universal mounting bracket

Physical:

• Weight: 29 lb (13 kg)
• 9.28" W × 10.5" H × 5.21" D

Environmental Rating

• Operating range: −29.2°F to +165.2°F

Warranty & Support

• 5-year limited warranty
• 1-year on batteries
