M75-SA300-CLBW — Intelligent Collaborator (W-Series)
Wireless multi-pole system collaborator with 1000ft range, solar compatibility, and robust NEMA 3R housing
Updated
by Dylan Solberg
Part Numbers: M75-SA300-CLBW
Summary
The M75-SA300-CLBW is the W-Series Intelligent Collaborator used to expand multi-pole deployments. It mirrors the controller’s flashing output and drives additional mounted beacon or ring units for extended system coverage.
Product Options
- M75-SA300-CLBW

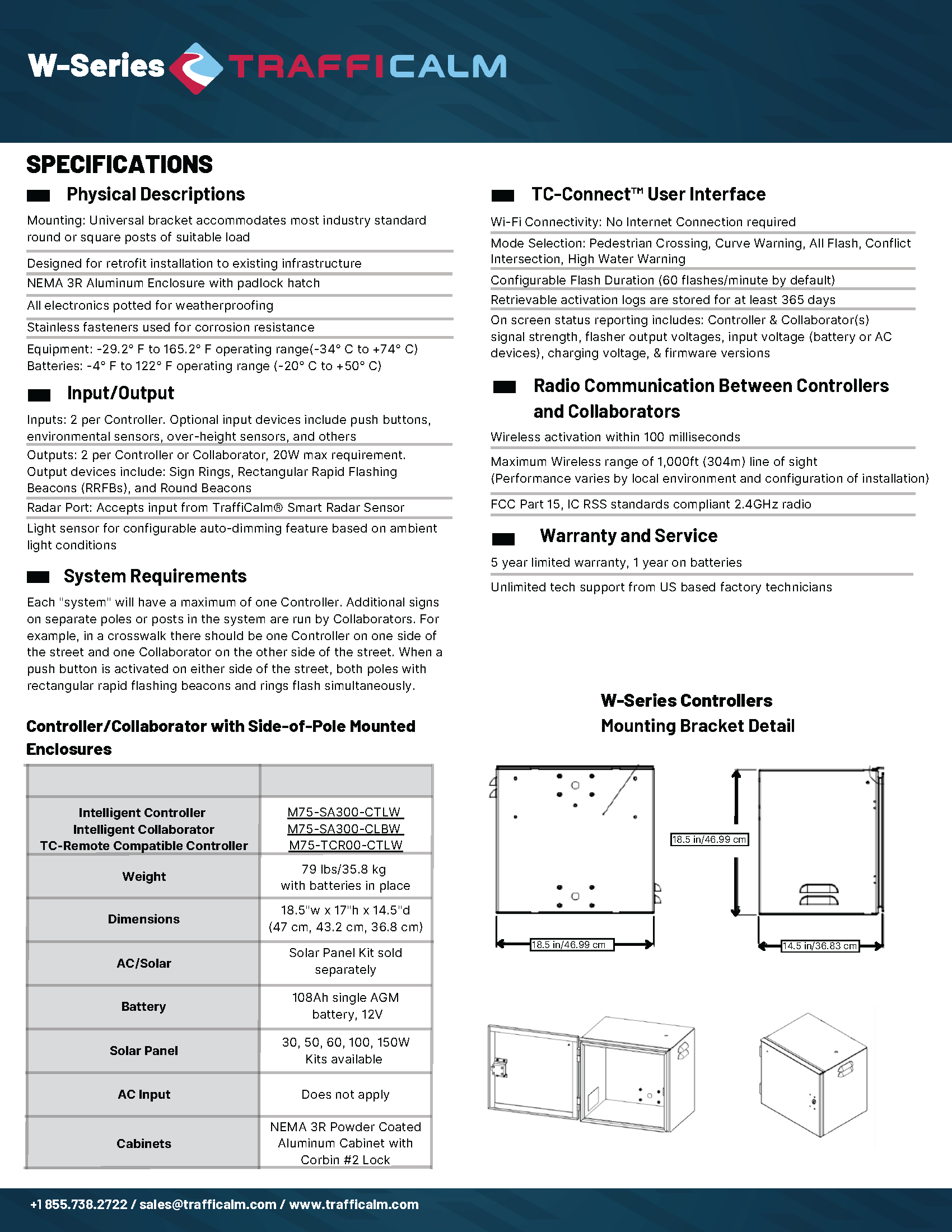

Specifications
Solar
- Solar panel kit sold separately
- Supported solar panels: 30W, 50W, 60W, 100W, 150W
Battery Storage
- 108Ah single AGM battery, 12V
Collaborator Function
- Receives wireless synchronization from Intelligent Controller
- Outputs: 2, 20W max
- Extends system coverage for additional poles
Connectivity / Interface
- Wireless activation
- Wireless latency: within 100 ms
- Wireless range: 1000 ft line of sight
- TC-Connect access
Housing

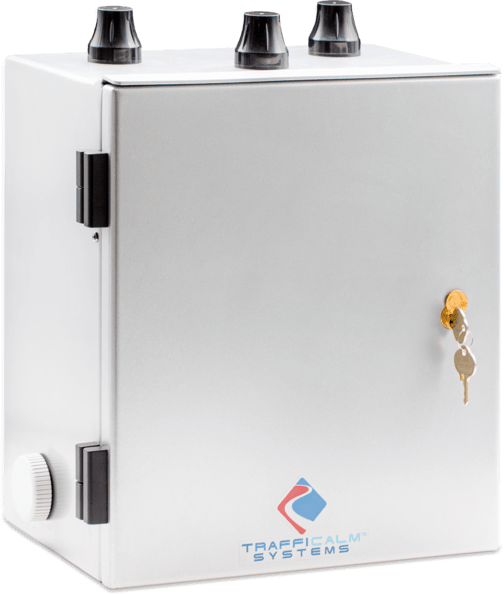

- NEMA 3R powder-coated aluminum enclosure
- Corbin #2 lock
- Fully potted electronics
- Stainless hardware
Physical:
- Weight: 79 lb
- Dimensions: 18.5" W × 17" H × 14.5" D
Environmental Rating
- Equipment operating range: −29.2°F to +165.2°F
- Battery operating range: −4°F to +122°F
Warranty & Support
- 5-year limited warranty
- 1-year on batteries
