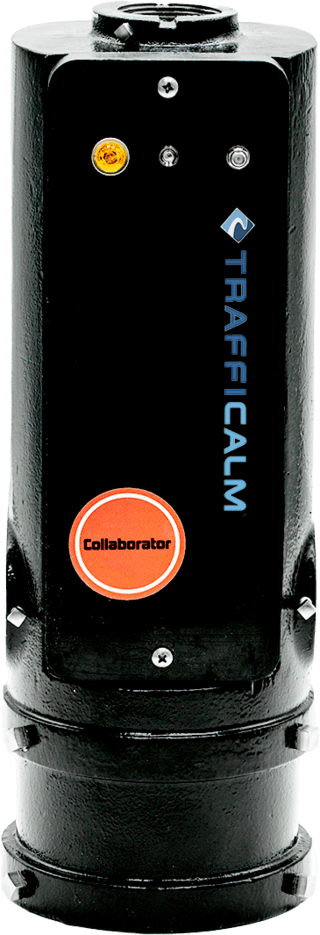

M75-SA30A-CLBZ — Intelligent Collaborator (Z-Series, AC Powered)

Part Numbers: M75-SA30A-CLBZ

Summary

The M75-SA30A-CLBZ is the Slimline Z-Series Intelligent Collaborator configured for AC-powered installations. It synchronizes with the AC-powered CTLZ controller to mirror all flashing activity at secondary poles without using any battery or solar storage.

Product Options

• M75-SA30A-CLBZ

Specifications

Power

• AC powered
• No battery
• No solar
• Internal AC supply and regulation

Collaborator Function

• Receives wireless activation from controller
• Outputs: 2 total, 12W max requirement
• Mirrors controller flash behavior
• Supports confirmation light output if system-configured

Connectivity / Interface

• Wireless synchronization with controller
• Wireless range: 1000 ft line of sight
• TC-Connect enabled for local diagnostics
• Local LED indicator and state feedback

Housing & Mounting

• Slimline housing
• Top-of-pole mounted
• Housing dimensions: 13.5”H × 13.5”W × 17”D
• Available in black, yellow, or green
• Fully epoxy-potted electronics

Environmental Rating

• Equipment operating range: −40°F to +140°F

Compatibility

• Operates in systems with:
  • M75-SA30A-CTLZ (AC Controller)
  • M75-TCR0A-CTLZ (AC TC-Remote Controller)
• Drives RRFB units, LED rings, and beacon assemblies

Warranty & Support

• 5-year limited warranty
• Unlimited technical support

Ordering

• M75-SA30A-CLBZ
