M75-TCR0A-CTLZ — Intelligent Controller (Z-Series, AC Powered, TC-Remote)

Part Numbers: M75-TCR0A-CTLZ

MUTCD Sign Rings: If your controller is running firmware 401N or >, adjust brightness from 100% to 60%. Failure to do so will result in higher power draw and solar systems may fail.

Is my ring MUTCD?
There is a -M at the end of the model number for MUTCD compliant rings

Summary

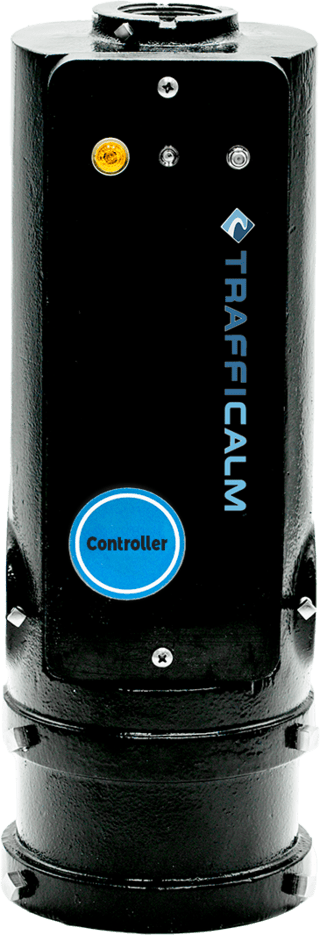

The M75-TCR0A-CTLZ is the Slimline Z-Series AC-powered Intelligent Controller with TC-Remote capability. It provides remote-access control, diagnostics, and monitoring for AC-powered Slimline installations without requiring any battery or solar input.

Product Options

• M75-TCR0A-CTLZ

Specifications

Power

• AC powered
• No battery
• No solar panel
• Integrated AC regulation module

Controller

• Inputs: 2 dry-contact input
• Outputs: 2 outputs, 12W max requirement
• Flash behavior conforms to MUTCD
• Multiple selection flash modes
• Supports Smart Radar activation
• Includes ambient light dimming sensor

Connectivity / Interface

• TC-Connect local wireless configuration
• TC-Remote capability for remote access
• Wireless communication
• Wireless range: 1000 ft line of sight
• Internal logging stored for minimum 365 days
• On-screen historical diagnostics available

Housing & Mounting

• Slimline form-factor
• Top-of-pole mounted
• Housing dimensions: 13.5”H × 13.5”W × 17”D
• Color options: black, yellow, green
• Fully epoxy-potted inner electronics

Environmental Rating

• Operating range: −40°F to +140°F

Compatibility

• Coordinates with Z-Series collaborators
• Suitable for RRFB, sign ring, and beacon applications
• Integrates with multi-pole activation systems

Warranty & Support

• 5-year limited warranty
• Unlimited US-based technical support

Ordering

• M75-TCR0A-CTLZ
