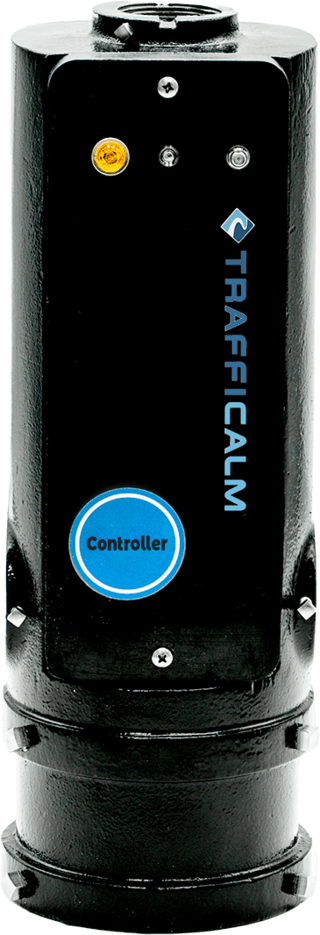

M75-TCR00-CTLZ — Intelligent Controller (Z-Series, Battery, TC-Remote)

Part Numbers: M75-TCR00-CTLZ

Summary

The M75-TCR00-CTLZ is the Slimline Z-Series Intelligent Controller with integrated TC-Remote capability. It supports remote management and monitoring of system status, logs, and activations while operating from a concealed 43Ah AGM battery at the base of the pole.

Product Options

• M75-TCR00-CTLZ

Specifications

Battery Storage

• 43Ah AGM battery stored in base of pole
• Includes battery tray and wiring harness

Controller

• Inputs: 2 dry-contact input
• Outputs: 2 outputs, 12W max requirement
• Default flash sequence: 1 flash/second (MUTCD compliant)
• Supports flash pattern selection
• Accepts Smart Radar activation
• Ambient light sensor for automatic dimming

Connectivity / Interface

• TC-Connect Wi-Fi setup
• TC-Remote remote connectivity capability
• Wireless activation
• Wireless range: 1000 ft line of sight
• System logging:
  • activations
  • voltage levels
  • diagnostics
  • firmware version
• Minimum 365-day log retention

Housing & Mounting

• Low-profile Slimline housing
• Top-of-pole mount
• Housing dimensions: 13.5”H × 13.5”W × 17”D
• Available housing colors: black, yellow, green
• Fully epoxy-sealed electronics

Environmental Rating

• Equipment operating range: −40°F to +140°F
• Battery operating range: −4°F to +122°F

Compatibility

• Can control:
  • RRFB systems
  • universal beacons
  • LED rings
  • confirmation indicators
• Controls additional Z-Series collaborators

Warranty & Support

• 5-year limited warranty
• Unlimited technical support

Ordering

• M75-TCR00-CTLZ
