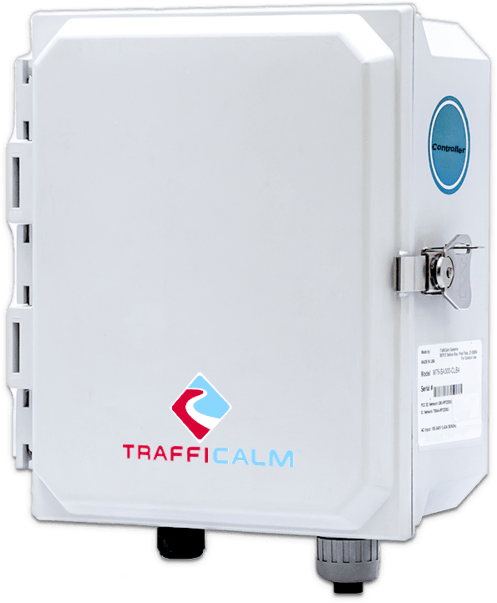

M75-TCR00-CTLA — TC-Remote Compatible Controller (AC Powered Series)

Part Numbers: M75-TCR00-CTLA

Summary

The M75-TCR00-CTLA is the AC-powered Intelligent Controller that supports TC-Remote capability. It provides full controller functionality with the added ability for remote system access and management when configured.

Product Options

• M75-TCR00-CTLA

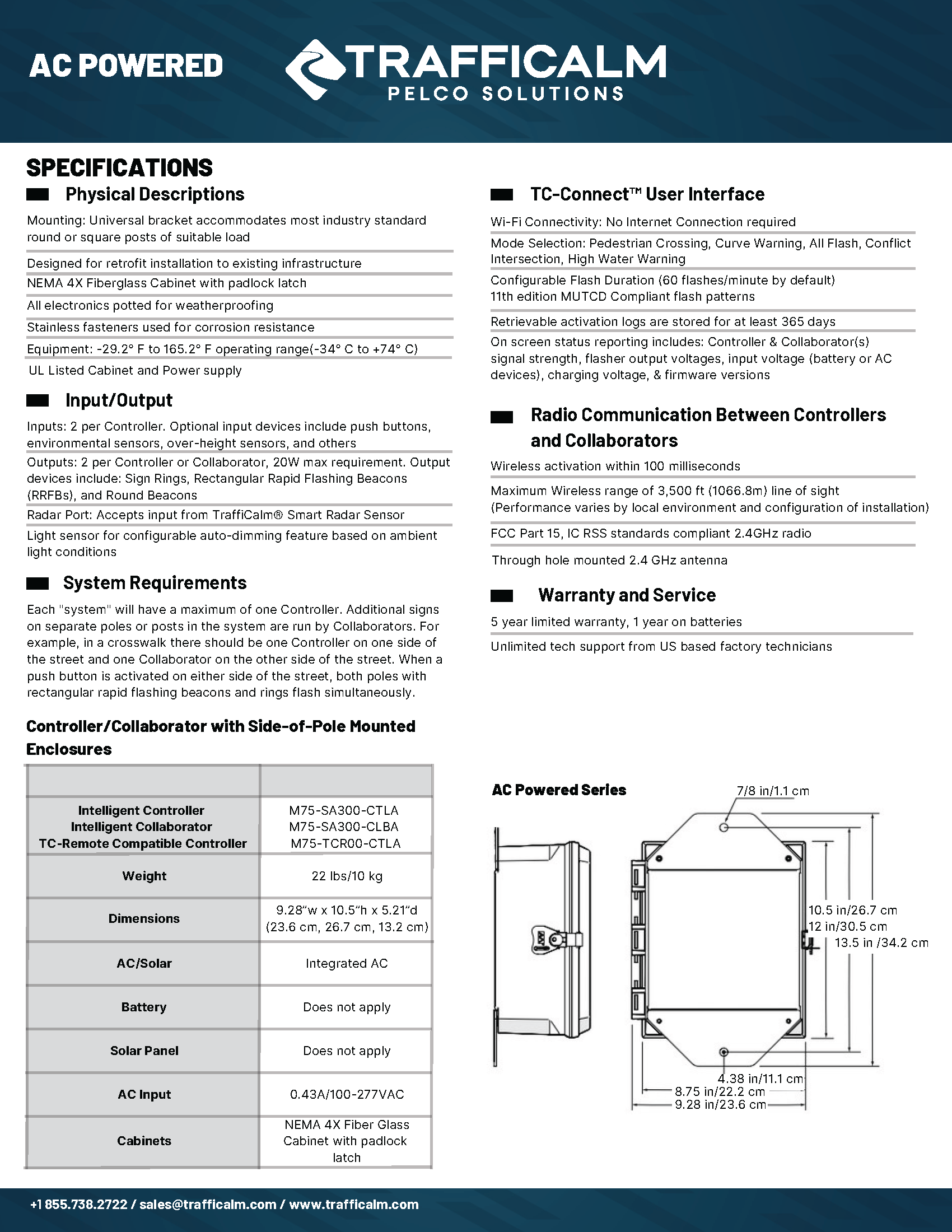

Specifications

Power

• Integrated AC power supply
• AC Input: 0.43A / 100–277 VAC

Controller

• Configurable flash duration: 60 flashes per minute
• 11th edition MUTCD compliant flash patterns
• Configurable for:
  • All-Flash System
  • Push-2-Cross System
  • Intelligent Beacon(s)
  • Sequencing Chevron System
  • Conflict Intersection
  • High Water Warning System
• Inputs and Outputs:
  • Inputs: 2
  • Outputs: 2, 20W max
• Radar input
• Ambient light sensor

Connectivity / Interface

• TC-Connect Wi-Fi configuration
• TC-Remote capable
• Wireless communication between units
• Wireless range: 1000 ft line of sight
• On-screen reporting and system diagnostics
• Activation logs stored for at least 365 days

Housing

• NEMA 4X fiberglass cabinet
• Fully potted electronics
• Stainless hardware
• Universal mounting bracket

Physical:

• Weight: 22 lb (10 kg)
• Dimensions: 9.28" W × 10.5" H × 5.21" D

Environmental Rating

• Operating range: −29.2°F to +165.2°F

Warranty & Support

• 5-year limited warranty
• 1-year on batteries
