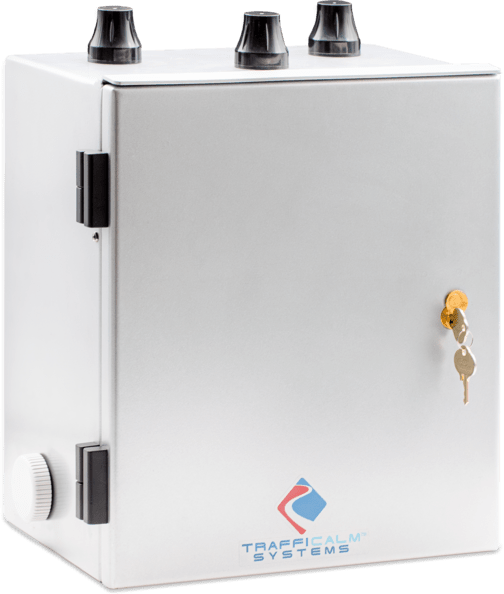

M75-TCR00-CTLW — TC-Remote Compatible Controller (W-Series)

Part Numbers: M75-TCR00-CTLW

Summary

The M75-TCR00-CTLW is the TC-Remote compatible Intelligent Controller variant in the W-Series. It combines heavy-duty power capacity with remote connectivity capability for long-term logging and monitoring applications.

Product Options

• M75-TCR00-CTLW

Specifications

Solar

• Solar panel kit sold separately
• Supported solar: 30W, 50W, 60W, 100W, 150W

Battery Storage

• 108Ah AGM battery, 12V

Controller

• Configurable flash duration: 60 flashes per minute
• Configurable as:
  • All-Flash System
  • Push-2-Cross System
  • Intelligent Beacon(s)
  • Sequencing Chevron System
  • Conflict Intersection
  • High Water Warning System
• Inputs and outputs:
  • Inputs: 2
  • Outputs: 2, 20W max
• Radar input
• Light-sensing auto-dimming

Connectivity / Interface

• TC-Connect configuration
• TC-Remote capable
• Wireless communication
• Wireless range: 1000 ft line of sight
• On-screen voltage and system reporting
• Activation logs stored for at least 365 days

Housing

• NEMA 3R powder-coated aluminum cabinet
• Corbin #2 lock
• Fully potted electronics

Physical:

• Weight: 79 lb
• Dimensions: 18.5" W × 17" H × 14.5" D

Environmental Rating

• Equipment operating range: −29.2°F to +165.2°F
• Battery operating range: −4°F to +122°F

Warranty & Support

• 5-year limited warranty
• 1-year on batteries
