M75-SA300-CLBA — Intelligent Collaborator (AC Powered Series)

Part Numbers: M75-SA300-CLBA

MUTCD Sign Rings: If your controller is running firmware 401N or >, adjust brightness from 100% to 60%. Failure to do so will result in higher power draw and solar systems may fail.

Is my ring MUTCD?
There is a -M at the end of the model number for MUTCD compliant rings

Summary

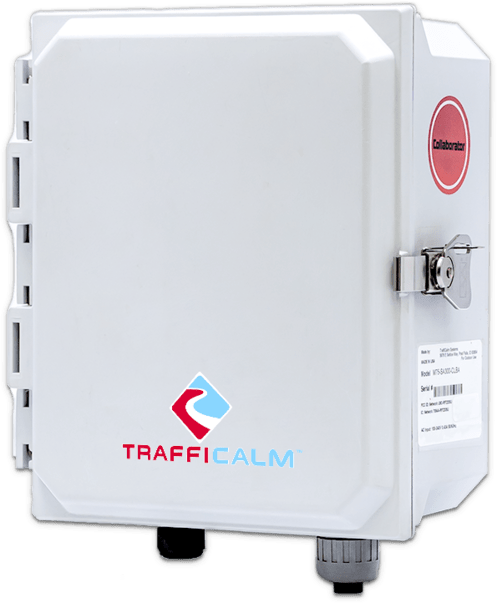

The M75-SA300-CLBA is the AC-powered Intelligent Collaborator used to extend a system managed by an Intelligent Controller. It receives wireless activation from the controller and drives additional beacon or ring outputs on additional poles.

Product Options

• M75-SA300-CLBA

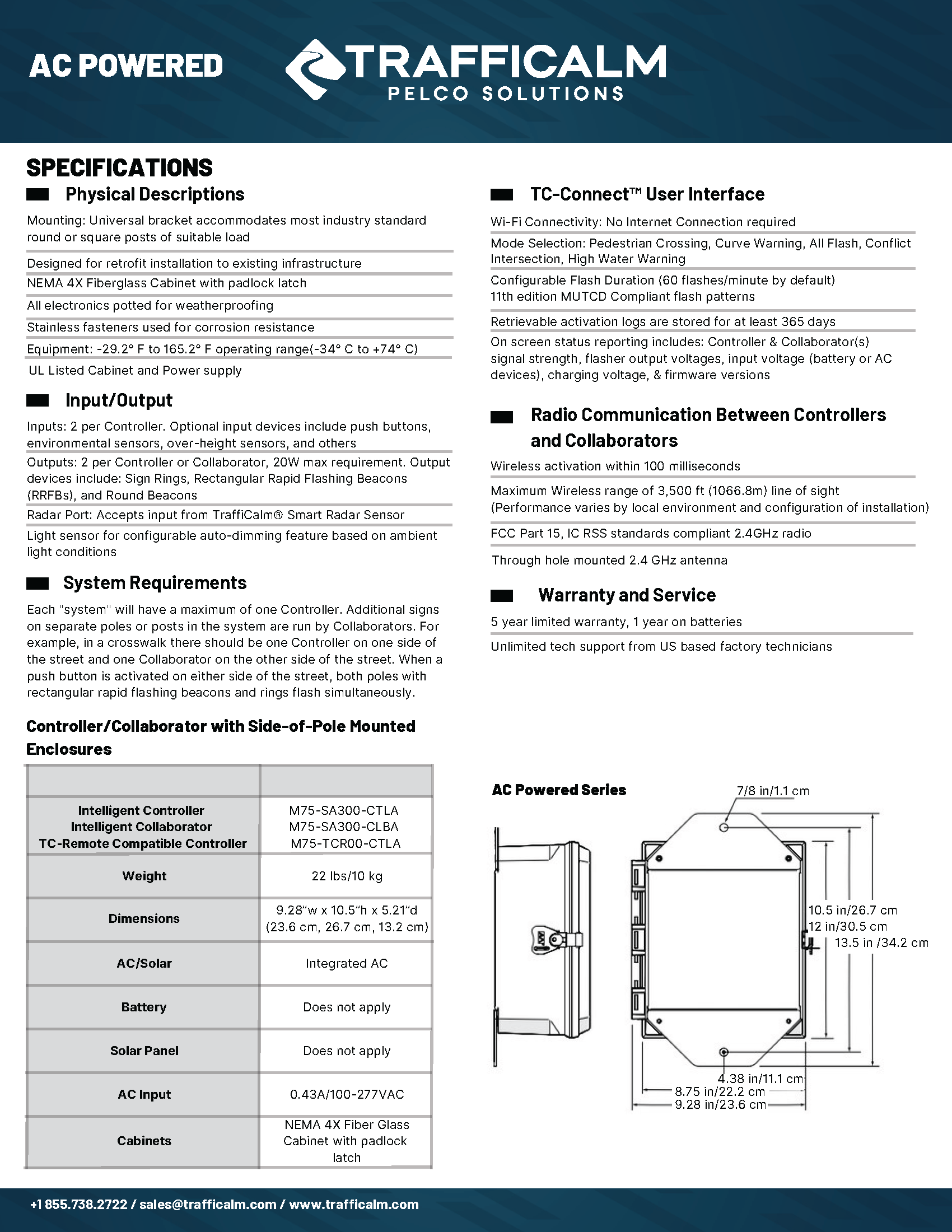

Specifications

Power

• Integrated AC power supply
• AC Input: 0.43A / 100–277 VAC

Collaborator Function

• Receives wireless activation from Controller
• Outputs: 2, 20W max
• Mirrors controller-driven flashing on secondary poles

Connectivity / Interface

• 2.4 GHz wireless communication
• Wireless activation latency: within 100 ms
• Wireless range: 1000 ft line of sight
• TC-Connect local configuration

Housing

• NEMA 4X fiberglass cabinet with padlock latch
• Electronics fully potted
• Stainless-steel fasteners
• Universal mounting bracket

Physical:

• Weight: 22 lb (10 kg)
• Dimensions: 9.28" W × 10.5" H × 5.21" D

Environmental Rating

• Operating range: −29.2°F to +165.2°F

Warranty & Support

• 5-year limited warranty
• 1-year on batteries
