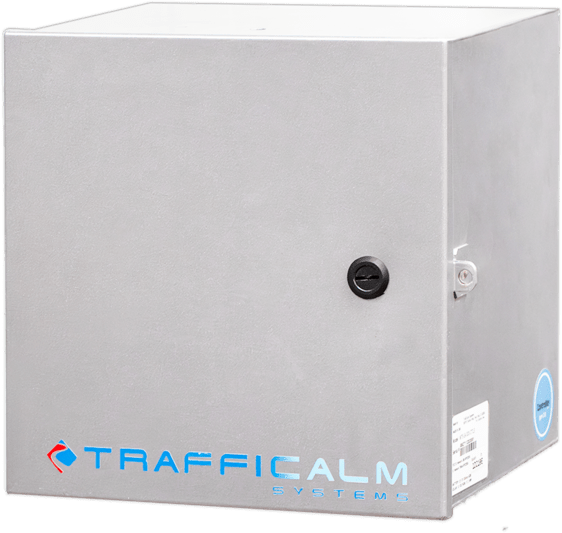

M75-TCR00-CTLS — TC-Remote Compatible Controller (S-Series)

Part Numbers: M75-TCR00-CTLS

Summary

The M75-TCR00-CTLS is the TC-Remote compatible Intelligent Controller version of the S-Series. It uses the same hardware platform as the CTLS but adds compatibility with remote monitoring and remote management capability when deployed with TC-Remote support.

Product Options

• M75-TCR00-CTLS

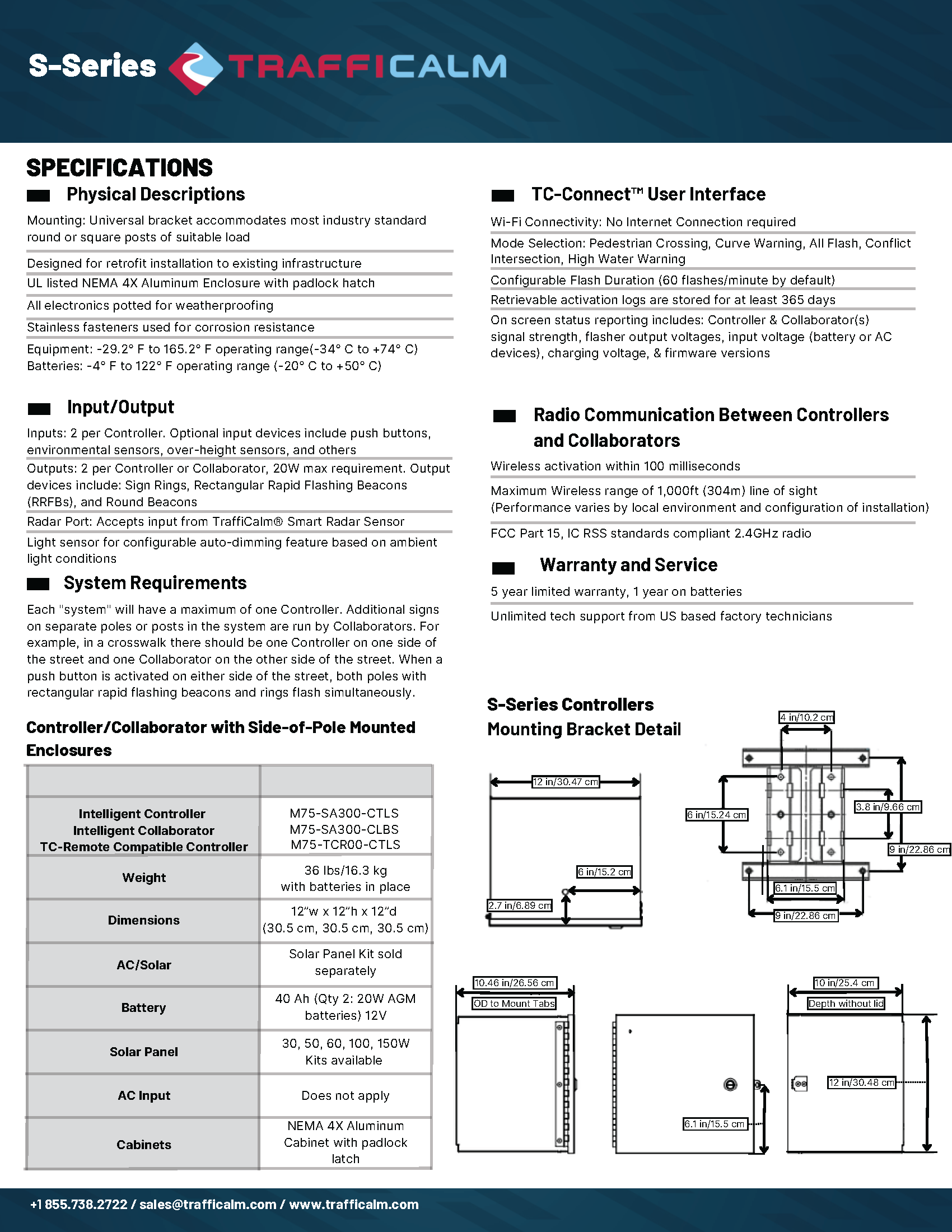

Specifications

Solar

• Solar panel kit sold separately
• Available solar sizes: 30W, 50W, 60W, 100W, 150W

Battery Storage

• 40Ah, 12V
• Two 20Ah AGM batteries

Controller

• Configurable flash duration: 60 flashes per minute
• Configurable for:
  • All-Flash System
  • Push-2-Cross System
  • Intelligent Beacon(s)
  • Sequencing Chevron System
  • Conflict Intersection
  • High Water Warning System
• Inputs and outputs:
  • Inputs: 2
  • Outputs: 2, 20W max
• Includes radar port
• Includes light sensor

Connectivity / Interface

• TC-Connect
• TC-Remote capable
• Wireless range: 1000 ft line of sight
• Activation logs stored for at least 365 days
• Diagnostic display includes:
  • Voltage levels
  • Communication signal
  • Charging state
  • Firmware versions

Housing

• NEMA 4X aluminum enclosure
• Fully potted electronics
• Stainless mounting hardware

Physical:

• Weight: 36 lb
• Dimensions: 12" × 12" × 12"

Environmental Rating

• Equipment operating range: −29.2°F to +165.2°F
• Battery operating range: −4°F to +122°F

Warranty & Support

• 5-year limited warranty
• 1-year on batteries
