M75-TCR00-CTLT — TC-Remote Compatible Controller (T-Series)

Part Numbers: M75-TCR00-CTLT

Summary

The M75-TCR00-CTLT is the TC-Remote compatible variant of the T-Series Intelligent Controller. It supports remote monitoring and control in addition to all standard controller modes and functions.

Product Options

• M75-TCR00-CTLT

Specifications

Solar

• Solar panel kit sold separately
• Available solar sizes: 30W, 50W, 60W, 100W, 150W

Battery Storage

• 70Ah total
• Two 35Ah AGM batteries

Controller

• Configurable flash duration: 60 flashes per minute
• Capable of:
  • All-Flash System
  • Push-2-Cross System
  • Intelligent Beacon(s)
  • Sequencing Chevron System
  • Conflict Intersection
  • High Water Warning System
• Inputs and outputs:
  • Inputs: 2
  • Outputs: 2, 20W max
• Radar input capability
• Ambient light sensor

Connectivity / Interface

• TC-Connect Wi-Fi configuration
• TC-Remote capable interface
• Wireless communication
• Wireless range: 1000 ft line of sight
• Activation log retention: 365+ days
• On-screen status monitoring

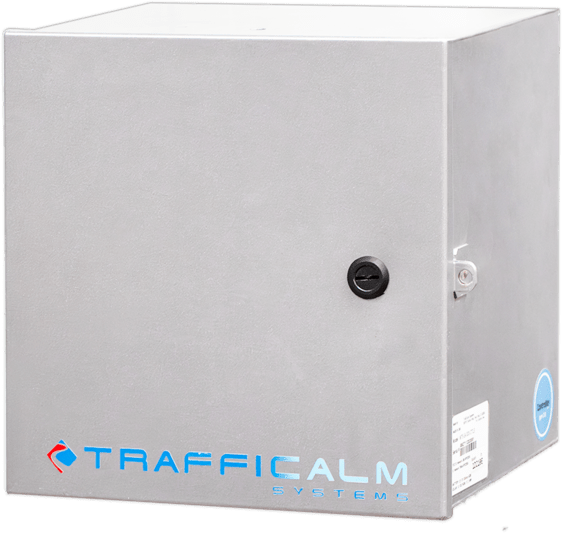

Housing

• NEMA 4X aluminum cabinet
• Fully potted electronics
• Stainless hardware

Physical:

• Weight: 56 lb
• Dimensions: 12" × 12" × 12"

Environmental Rating

• Equipment operating range: −29.2°F to +165.2°F
• Battery operating range: −4°F to +122°F

Warranty & Support

• 5-year limited warranty
• 1-year on batteries
