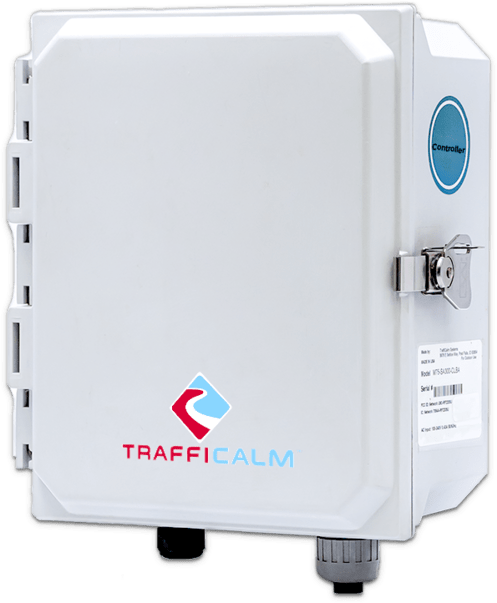

M75-TCR00-CTLE — TC-Remote Compatible Controller (E-Series)

Part Numbers: M75-TCR00-CTLE

Summary

The M75-TCR00-CTLE is an Intelligent Controller variant that supports TC-Remote connectivity for remote system monitoring and control. It retains all functions of the standard controller while adding remote-communication capability for agency-level fleet management.

Product Options

• M75-TCR00-CTLE

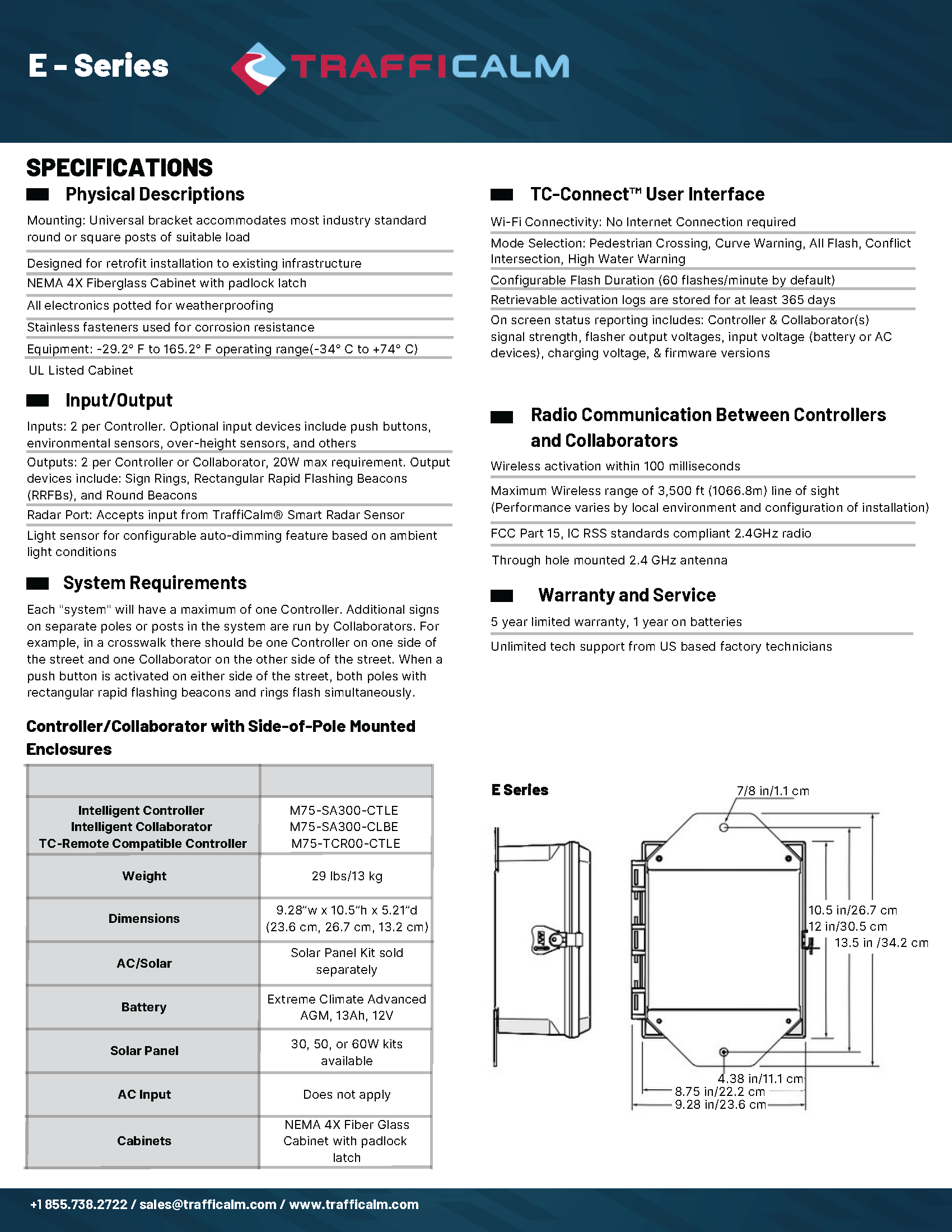

Specifications

Solar

• Solar panel kit sold separately
• Available solar kit sizes: 30W, 50W, 60W

Battery Storage

• 13Ah, 12V AGM battery

Controller

• Configurable flash duration (60 flashes per minute by default)
• Supports:
  • All-Flash System
  • Push-2-Cross System
  • Intelligent Beacon(s)
  • Sequencing Chevron System
  • Conflict Intersection
  • High Water Warning System
• Inputs and Outputs:
  • Inputs: 2
  • Outputs: 2, 20W max
• Radar input port
• Ambient light sensor

Connectivity / Interface

• TC-Connect Wi-Fi configuration
• TC-Remote compatible
• On-screen status reporting
• Activation logs stored for at least 365 days

Housing

• NEMA 4X fiberglass cabinet
• Fully potted electronics
• Stainless hardware
• Universal mounting bracket

Physical:

• Weight: 29 lb (13 kg)
• 9.28" W × 10.5" H × 5.21" D

Environmental Rating

• Operating range: −29.2°F to +165.2°F

Warranty & Support

• 5-year limited warranty
• 1-year on batteries
