M75-SA300-CTLP — Intelligent Controller (CTLP-Series)

Part Numbers: M75-SA300-CTLP

Summary

The M75-SA300-CTLP is the AC-powered CTLP-Series Intelligent Controller, designed for installations requiring secure lock access and sealed environmental protection. It manages flash activation, dimming control, system timing, sensor inputs, and wireless communication with collaborators.

Product Options

• M75-SA300-CTLP

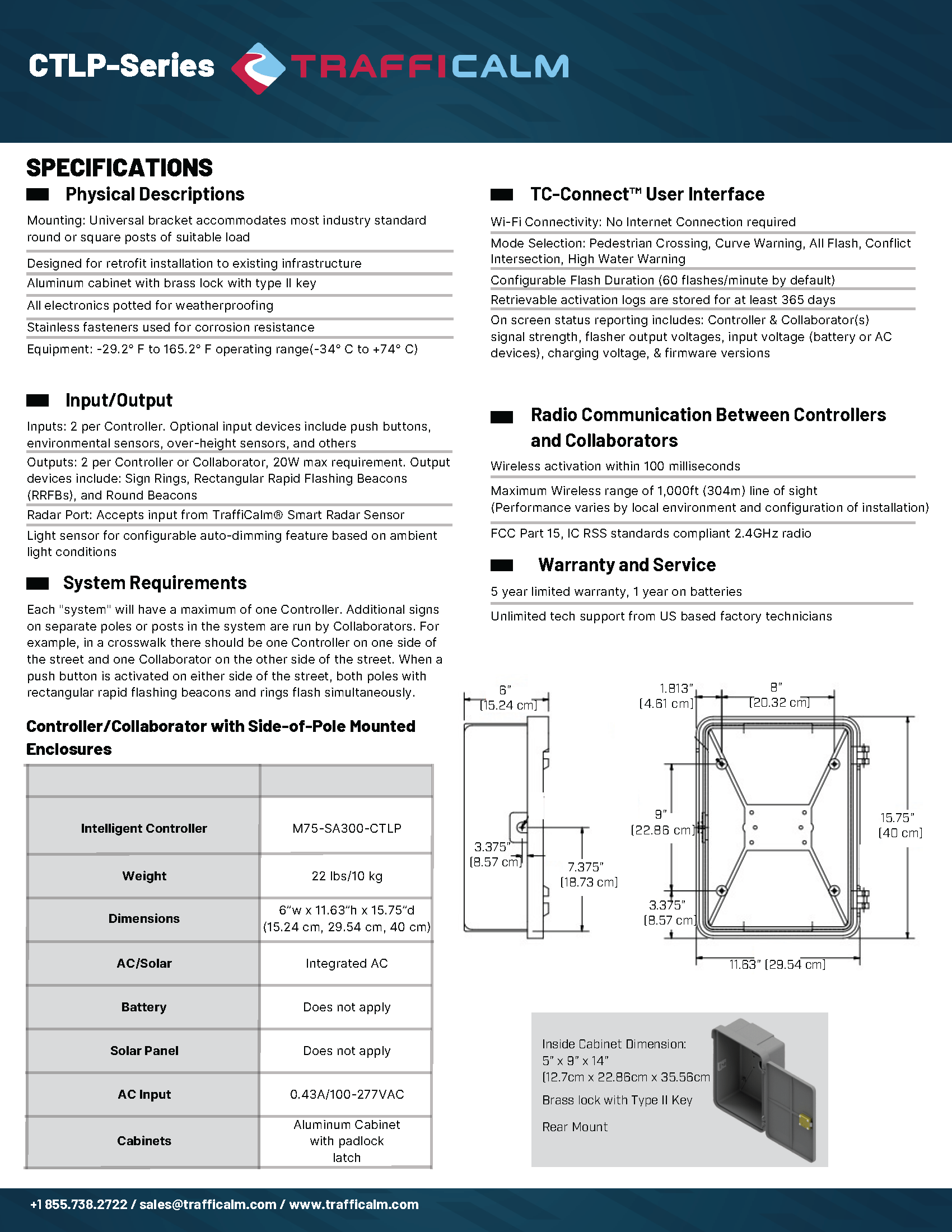

Specifications

Power

• Integrated AC powering
• AC Input: 0.43A / 100–277 VAC
• No solar panel
• No battery

Controller

• Configurable flash duration: 60 flashes per minute
• Configurable for:
  • All-Flash System
  • Push-2-Cross System
  • Intelligent Beacon(s)
  • Sequencing Chevron System
  • Conflict Intersection
  • High Water Warning System
• Inputs / outputs:
  • Inputs: 2
  • Outputs: 2, 20W max
• Radar port for Smart Radar input
• Light sensor for auto-dimming

Connectivity / Interface

• TC-Connect Wi-Fi setup
• Local configuration with no internet required
• Wireless activation between units
• Wireless range: 1000 ft line of sight
• Activation logs stored for at least 365 days
• On-screen system status reporting including:
  • signal strength
  • output voltages
  • AC input voltage
  • charging state (if applicable)
  • firmware versions

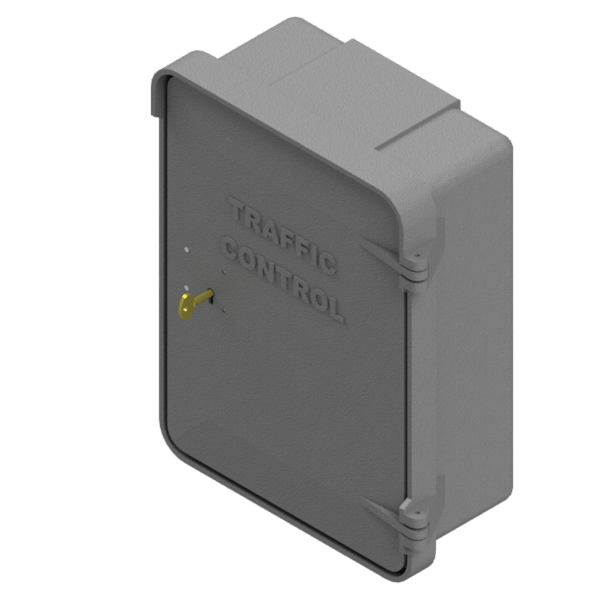

Cabinet Construction

• Aluminum cabinet
• Brass lock with Type II key (police access compatible)
• All electronics fully epoxy-potted
• Stainless fasteners for corrosion resistance
• Universal mounting bracket for pole/post installation

Physical:

• Weight: 22 lb (10 kg)
• Dimensions: 6" W × 11.63" H × 15.75" D

Inside Cabinet Space:

• 5" × 9" × 14"

Environmental Rating

• Equipment operating range: −29.2°F to +165.2°F

Warranty & Support

• 5-year limited warranty
• 1-year on batteries (not applicable for CTLP)
