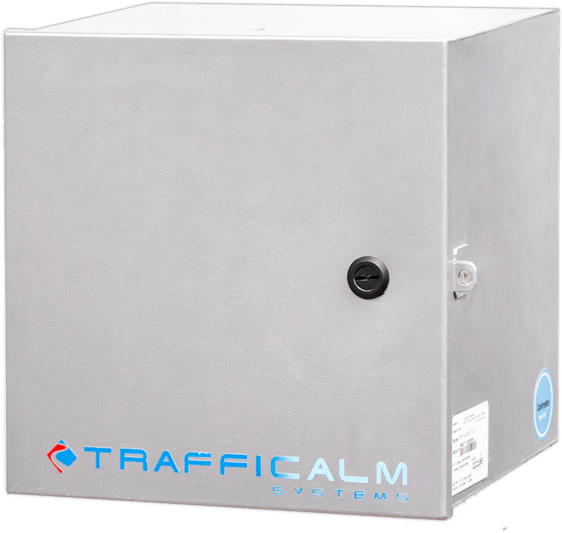

M75-SA300-CTLT — Intelligent Controller (T-Series)

Part Numbers: M75-SA300-CTLT

Summary

The M75-SA300-CTLT is the T-Series Intelligent Controller for high-capacity installations requiring extended battery storage and larger panel support. It handles flash rate, brightness control, activation sources, and communication with collaborator devices, utilizing a heavy-duty enclosure and extended AGM battery system.

Product Options

• M75-SA300-CTLT

Specifications

Solar

• Solar panel kit sold separately
• Supported solar panel sizes: 30W, 50W, 60W, 100W, 150W

Battery Storage

• 70Ah total battery capacity
• Two 35Ah AGM batteries

Controller

• Configurable flash duration: 60 flashes per minute
• Configurable for:
  • All-Flash System
  • Push-2-Cross System
  • Intelligent Beacon(s)
  • Sequencing Chevron System
  • Conflict Intersection
  • High Water Warning System
• Inputs / outputs:
  • Inputs: 2
  • Outputs: 2, 20W max
• Includes radar input
• Includes ambient light sensor for auto-dimming

Connectivity / Interface

• TC-Connect wireless configuration
• Local Wi-Fi access, no internet required
• Wireless activation and control
• Wireless range: 1000 ft line of sight
• On-screen status reporting
• Activation logs stored for at least 365 days

Housing

• NEMA 4X aluminum enclosure with padlock latch
• Electronics are fully epoxy-potted
• Stainless hardware

Physical:

• Weight: 56 lb
• Dimensions: 12" × 12" × 12"

Environmental Rating

• Equipment operating range: −29.2°F to +165.2°F
• Battery operating range: −4°F to +122°F

Warranty & Support

• 5-year limited warranty
• 1-year on batteries
