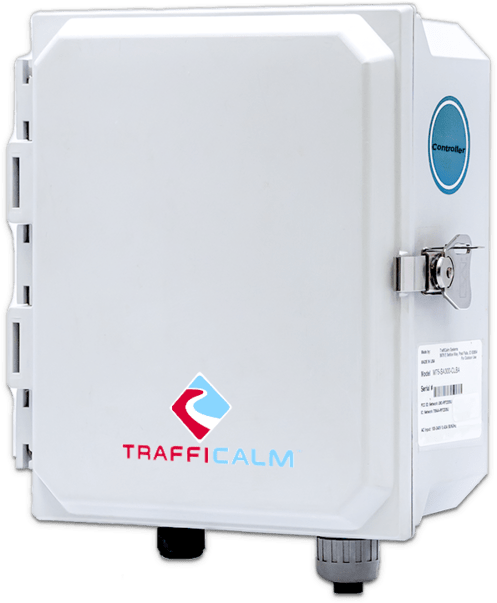

M75-SA300-CTLE — Intelligent Controller (E-Series)

Part Numbers: M75-SA30M-CTLE

Summary

The M75-SA300-CTLE is the primary Intelligent Controller in the E-Series product family. It manages flash activation, automatic brightness control, scheduling, communication with additional devices, and operational modes in a sealed, environmentally protected enclosure.

Product Options

• M75-SA300-CTLE

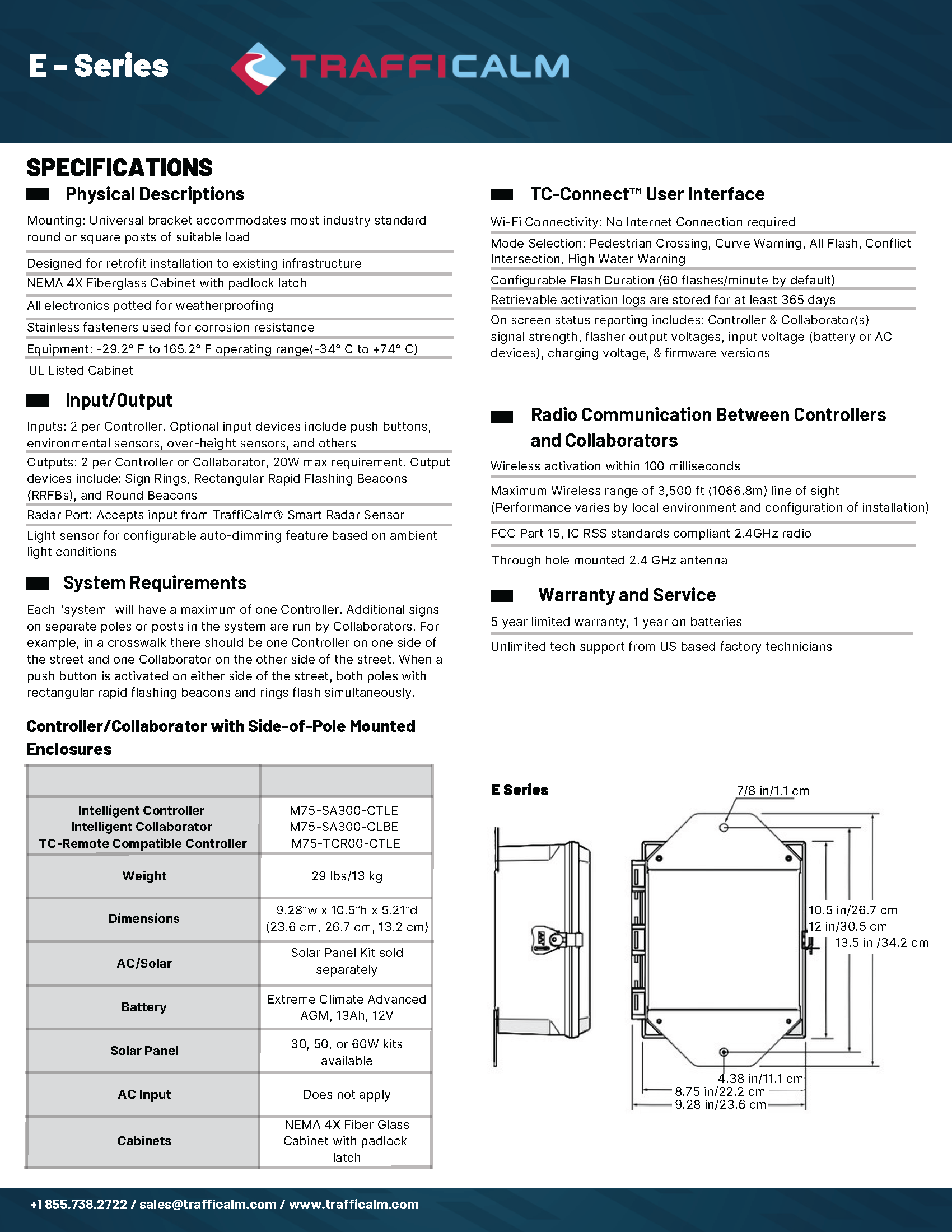

Specifications

Solar

• Solar panel kit sold separately
• Available solar kit sizes: 30W, 50W, 60W

Battery Storage

• 13Ah, 12V AGM battery

Controller

• Configurable flash duration (60 flashes per minute by default)
• Configurable as:
  • All-Flash System
  • Push-2-Cross System
  • Intelligent Beacon(s)
  • Sequencing Chevron System
  • Conflict Intersection
  • High Water Warning System
• Inputs and Outputs:
  • Inputs: 2 per Controller
  • Outputs: 2 per Controller, 20W max requirement
• Includes radar input port
• Includes ambient light sensor for auto-dimming

Connectivity / Interface

• TC-Connect Wi-Fi configuration
• No internet connection required
• On-screen status monitoring
• Activation history stored for at least 365 days

Housing

• Side-of-pole NEMA 4X fiberglass cabinet
• Stainless hardware
• Fully potted electronics
• Universal mounting bracket

Physical:

• Weight: 29 lb (13 kg)
• 9.28" W × 10.5" H × 5.21" D

Environmental Rating

• Operating range: −29.2°F to +165.2°F

Warranty & Support

• 5-year limited warranty
• 1-year on batteries
