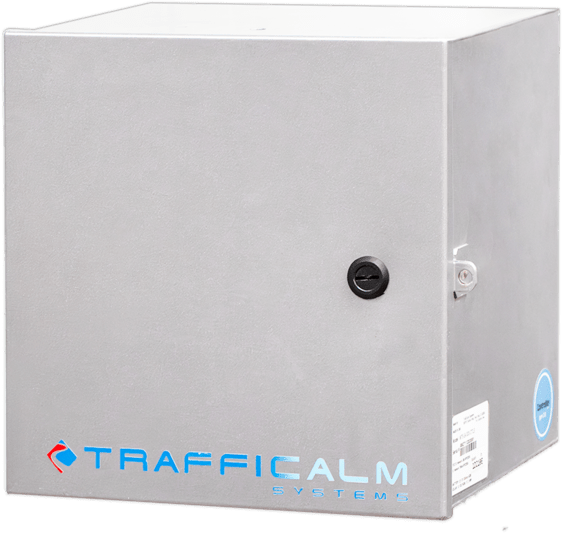

M75-SA300-CLBS — Intelligent Collaborator (S-Series)

Part Numbers: M75-SA300-CLBS

Summary

The M75-SA300-CLBS is the S-Series Intelligent Collaborator used to expand multi-post systems. It receives wireless activation from the Intelligent Controller and drives additional outputs for synchronized flashing on additional poles.

Product Options

• M75-SA300-CLBS

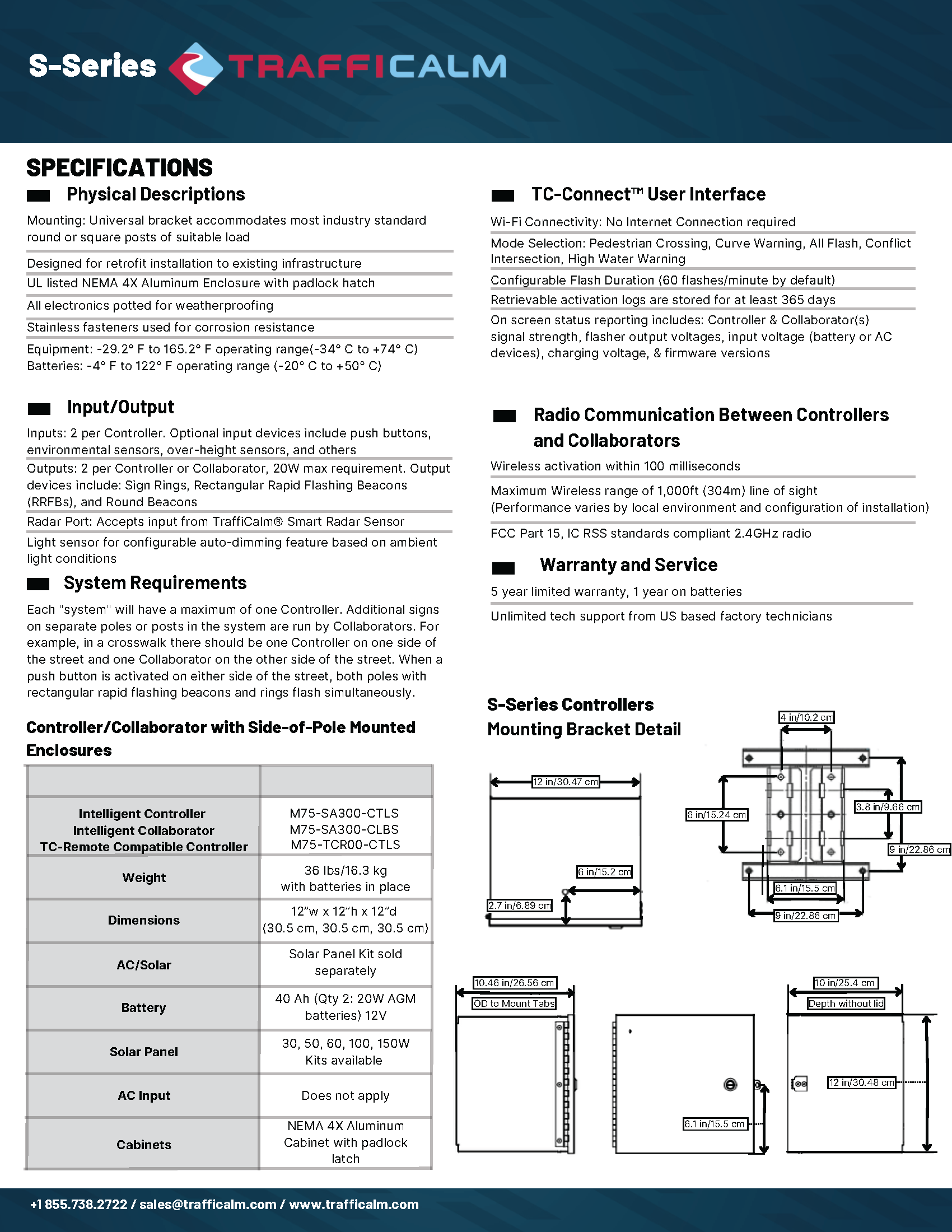

Specifications

Solar

• Solar panel kit sold separately
• Available solar options: 30W, 50W, 60W, 100W, 150W

Battery Storage

• Dual-battery system: 2 × 20Ah batteries
• Total: 40Ah, 12V

Collaborator Function

• Receives wireless activation from master Controller
• Outputs: 2, 20W max
• Used to replicate flashing across additional hardware poles

Connectivity / Interface

• 2.4 GHz wireless communication
• Communication latency: within 100 ms
• Wireless range: 1000 ft line of sight
• TC-Connect configuration

Housing

• NEMA 4X aluminum enclosure
• Fully potted electronics
• Stainless-steel fasteners

Physical:

• Weight: 36 lb
• Dimensions: 12" × 12" × 12"

Environmental Rating

• Operating range (equipment): −29.2°F to +165.2°F
• Operating range (batteries): −4°F to +122°F

Warranty & Support

• 5-year limited warranty
• 1-year on batteries
