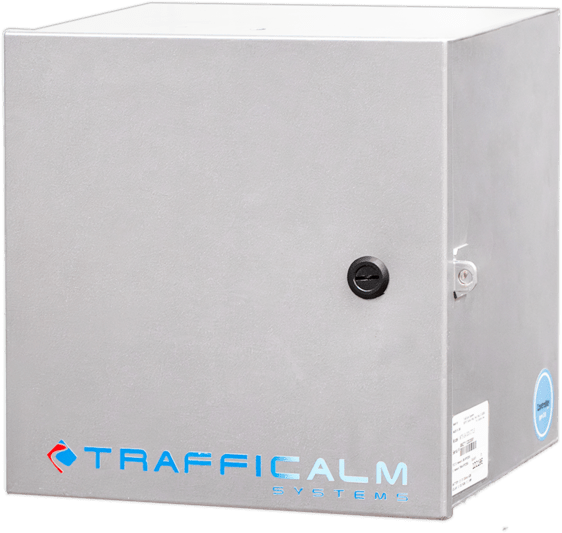

M75-SA300-CLBT — Intelligent Collaborator (T-Series)
Wireless T-Series Intelligent Collaborator expands sign systems with 1000 ft range, solar options, 70Ah storage
Updated
by Dylan Solberg
Part Numbers: M75-SA300-CLBT
Summary
The M75-SA300-CLBT is the T-Series Intelligent Collaborator used to expand multi-pole systems. It receives activation wirelessly from the Intelligent Controller to drive additional outputs across extended sign arrays using the same high-capacity T-Series platform.
Product Options
- M75-SA300-CLBT

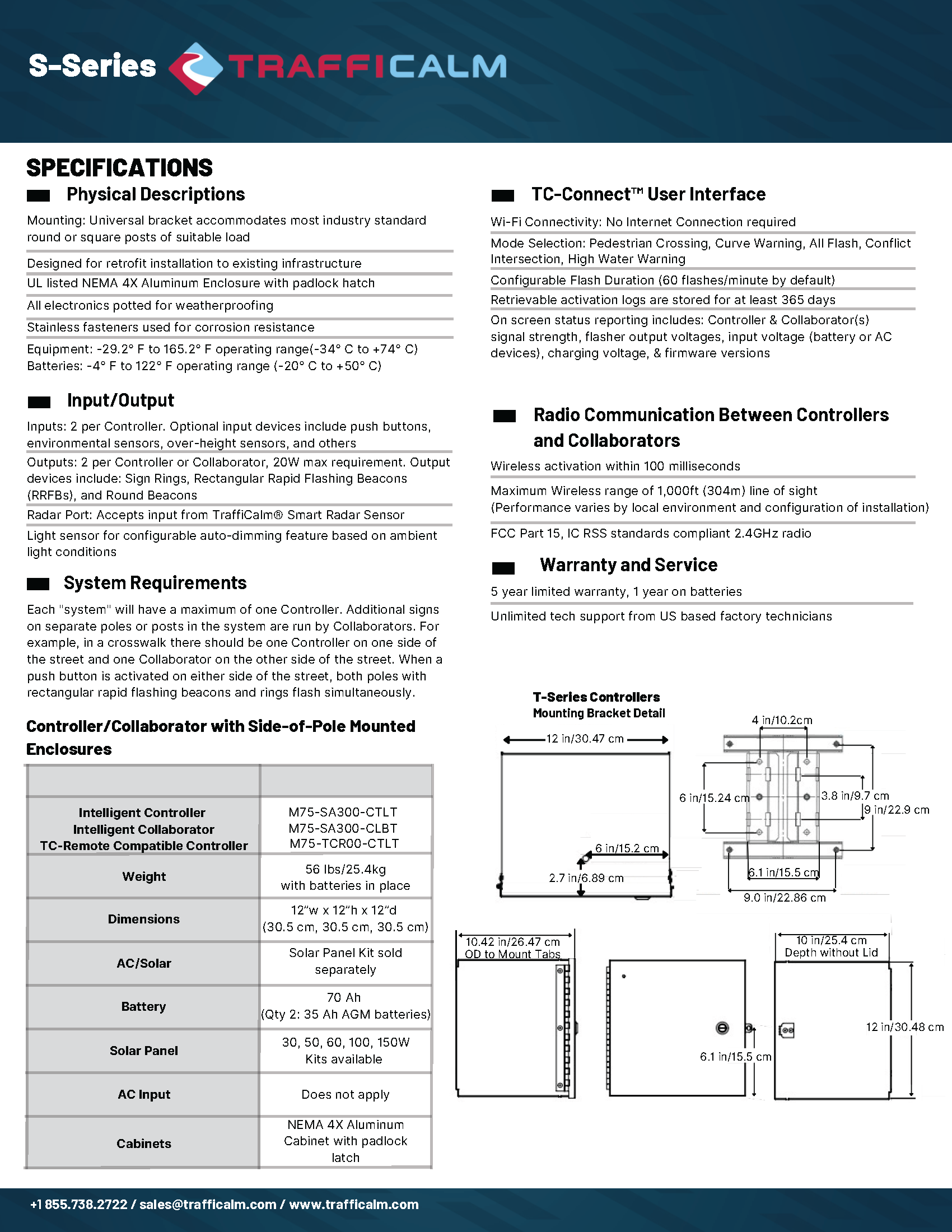

Specifications
Solar
- Solar panel kit sold separately
- Supported solar sizes: 30W, 50W, 60W, 100W, 150W
Battery Storage
- 70Ah total capacity
- Two 35Ah AGM batteries
Collaborator Function
- Receives wireless activation from Controller
- Outputs: 2, 20W max
- Used to synchronize flashing with the controller unit
Connectivity / Interface
- 2.4 GHz wireless communication
- Wireless latency: within 100 ms
- Wireless range: 1000 ft line of sight
- TC-Connect local interface
Housing
- NEMA 4X aluminum cabinet
- Fully potted electronics
- Stainless-steel corrosion-resistant fasteners
Physical:
- Weight: 56 lb
- Dimensions: 12" × 12" × 12"
Environmental Rating
- Equipment operating range: −29.2°F to +165.2°F
- Battery operating range: −4°F to +122°F
Warranty & Support
- 5-year limited warranty
- 1-year on batteries
