M75-SA300-CLBP — Intelligent Collaborator (CTLP-Series)

Part Numbers: M75-SA300-CLBP

Summary

The M75-SA300-CLBP is the AC-powered CTLP-Series Intelligent Collaborator with integrated Type II police lock. It receives wireless activation from the CTLP controller and drives local flashing outputs on installations where controlled access to the cabinet is required.

Product Options

• M75-SA300-CLBP

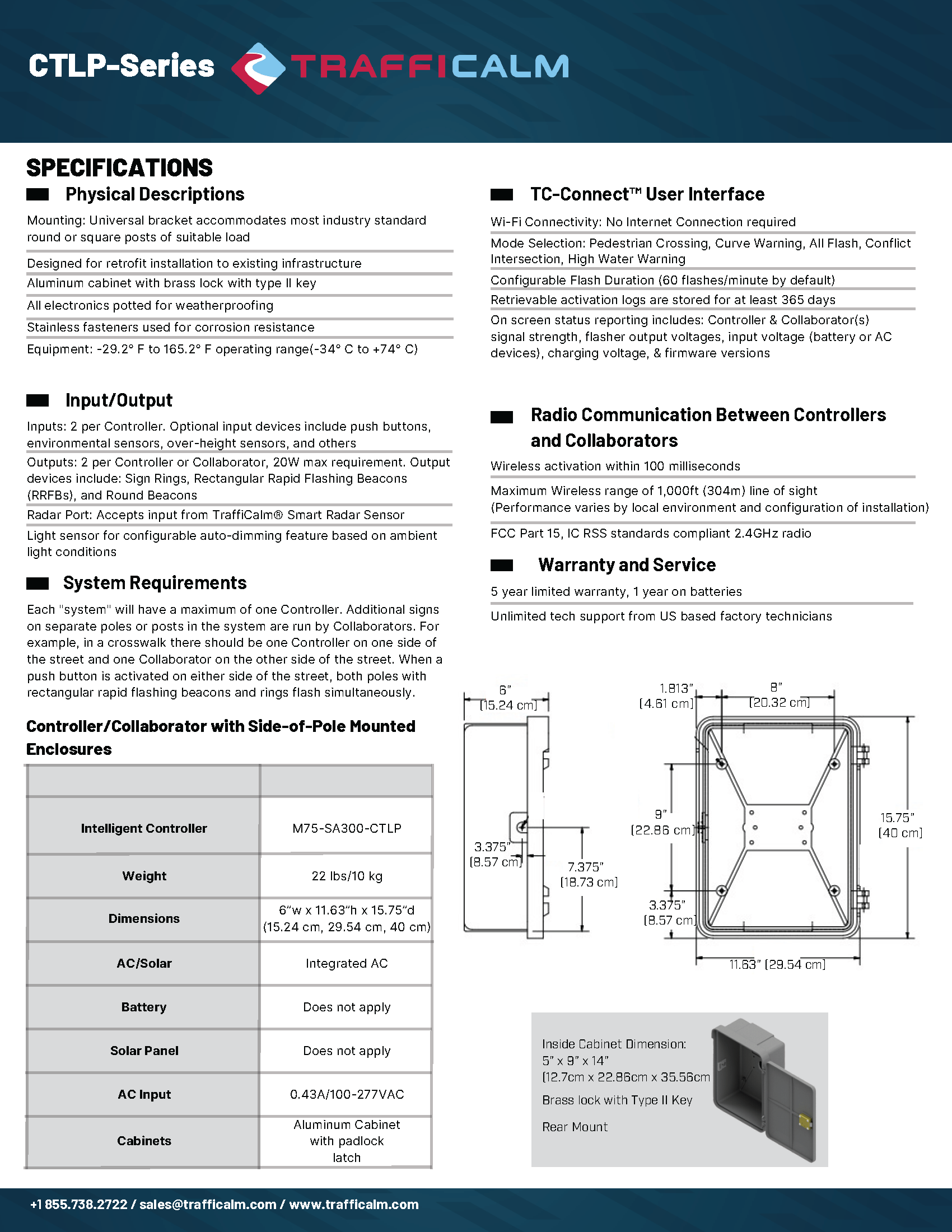

Specifications

Power

• Integrated AC powering
• AC Input: 0.43A / 100–277 VAC
• No solar panel
• No battery

Collaborator Function

• Receives wireless activation from CTLP controller
• Outputs: 2, 20W max requirement
• Drives sign rings, RRFBs, or round beacons

Connectivity / Interface

• Wireless activation within 100 ms
• Wireless range: 1000 ft line of sight
• TC-Connect Wi-Fi setup
• On-screen system reporting and diagnostics

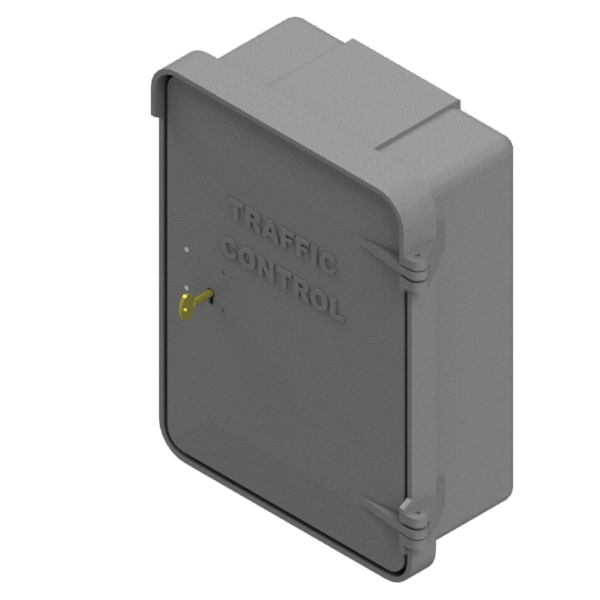

Cabinet Construction

• Aluminum cabinet
• Integrated brass police lock with Type II key
• All electronics fully epoxy-potted
• Stainless hardware for corrosion resistance

Physical:

• Weight: 22 lb (10 kg)
• Dimensions: 6" W × 11.63" H × 15.75" D

Inside Cabinet Space:

• 5" × 9" × 14"

Environmental Rating

• Operating range: −29.2°F to +165.2°F

Warranty & Support

• 5-year limited warranty
• 1-year on batteries (not applicable for CLBP)
