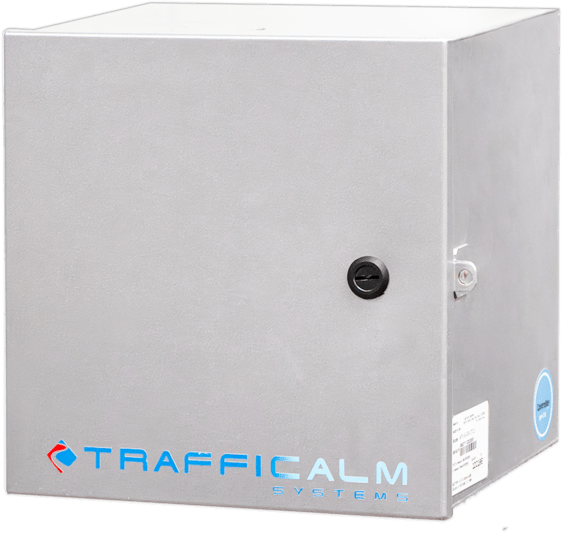

M75-SA300-CTLS — Intelligent Controller (S-Series)

Part Numbers: M75-SA300-CTLS

Summary

The M75-SA300-CTLS is the S-Series Intelligent Controller used for large-capacity installations requiring extended battery storage and higher-power solar configurations. It drives output devices while managing flash rate, configuration settings, activation logic, and dimming control.

Product Options

• M75-SA300-CTLS

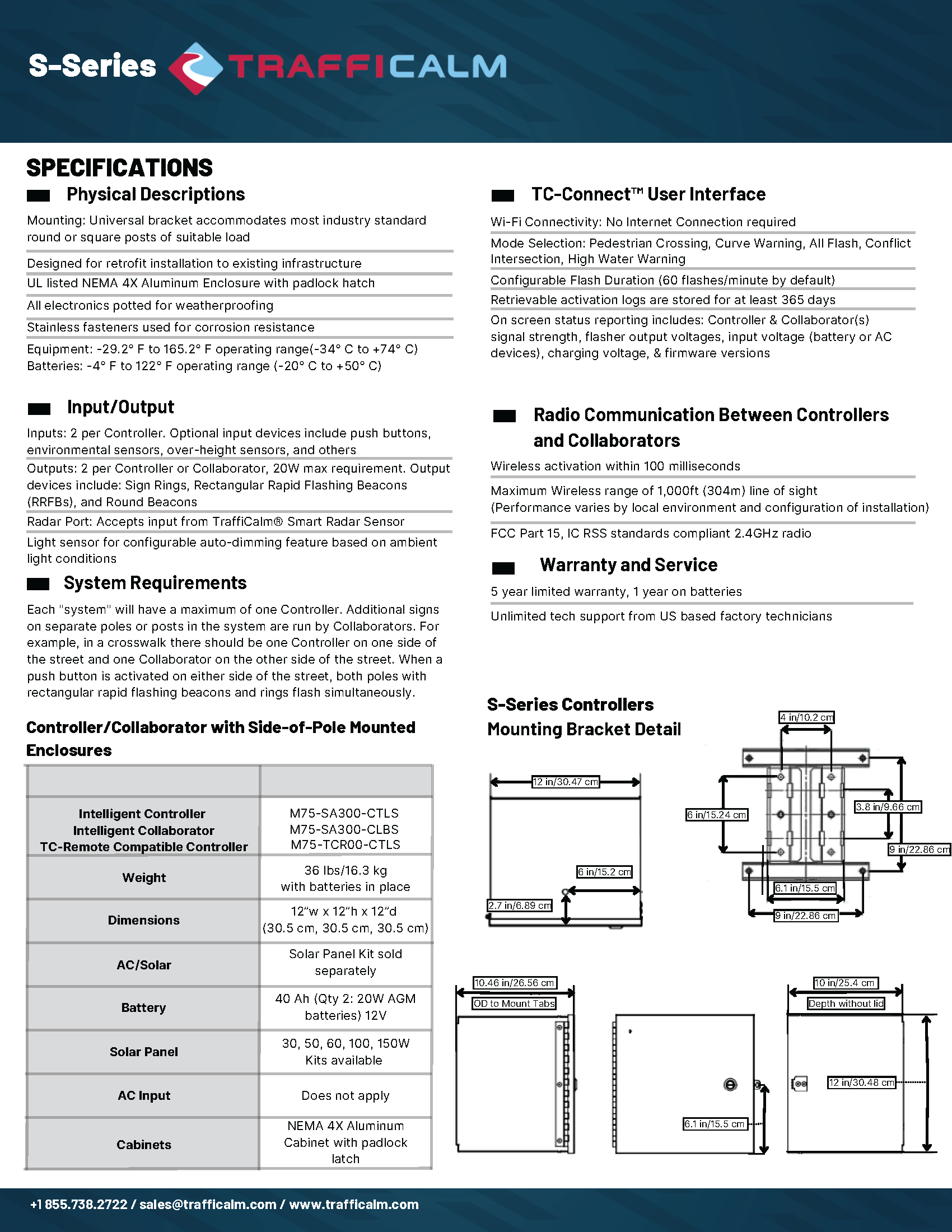

Specifications

Solar

• Solar panel kit sold separately
• Available solar options: 30W, 50W, 60W, 100W, 150W

Battery Storage

• Dual-battery configuration: 2 × 20Ah AGM batteries
• Total: 40Ah, 12V

Controller

• Configurable flash duration: 60 flashes per minute
• Configurable for:
  • All-Flash System
  • Push-2-Cross System
  • Intelligent Beacon(s)
  • Sequencing Chevron System
  • Conflict Intersection
  • High Water Warning System
• Inputs and outputs:
  • Inputs: 2
  • Outputs: 2, 20W max
• Accepts Smart Radar Sensor input
• Ambient light sensor for auto-dimming

Connectivity / Interface

• TC-Connect Wi-Fi configuration
• Wireless communication
• Wireless range: 1000 ft line of sight
• On-screen reporting includes:
  • Signal strength
  • Output voltages
  • Input voltage
  • Charging voltage
  • Firmware versions
• Activation logs stored for at least 365 days

Housing

• NEMA 4X aluminum enclosure with padlock latch
• Fully potted electronics
• Stainless-steel hardware

Physical:

• Weight: 36 lb with batteries
• Dimensions: 12" × 12" × 12"

Environmental Rating

• Operating range (equipment): −29.2°F to +165.2°F
• Operating range (batteries): −4°F to +122°F

Warranty & Support

• 5-year limited warranty
• 1-year on batteries
