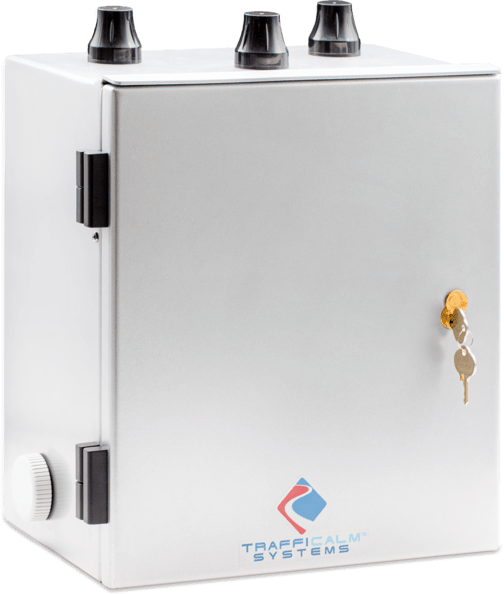

M75-SA300-CTLW — Intelligent Controller (W-Series)

Part Numbers: M75-SA300-CTLW

Summary

The M75-SA300-CTLW is the W-Series Intelligent Controller used for rugged, high-end installations requiring large-capacity battery storage in a weather-resistant NEMA 3R aluminum enclosure. It manages flash activation, dimming control, configuration inputs, and system coordination for multi-pole flashing applications.

Product Options

• M75-SA300-CTLW

Specifications

Solar

• Solar panel kit sold separately
• Supported solar panel sizes: 30W, 50W, 60W, 100W, 150W

Battery Storage

• 108Ah single AGM battery, 12V

Controller

• Configurable flash duration: 60 flashes per minute
• Configurable for:
  • All-Flash System
  • Push-2-Cross System
  • Intelligent Beacon(s)
  • Sequencing Chevron System
  • Conflict Intersection
  • High Water Warning System
• Inputs / outputs:
  • Inputs: 2
  • Outputs: 2, 20W max
• Radar input port
• Ambient light sensor for auto-dimming

Connectivity / Interface

• TC-Connect Wi-Fi configuration
• Wireless activation between units
• Wireless range: 1000 ft line of sight
• On-screen system reporting
• Activation logs stored for at least 365 days

Housing

• NEMA 3R powder-coated aluminum enclosure
• Corbin #2 lock
• Electronics fully potted
• Stainless fasteners

Physical:

• Weight: 79 lb
• Dimensions: 18.5" W × 17" H × 14.5" D

Environmental Rating

• Equipment operating range: −29.2°F to +165.2°F
• Battery operating range: −4°F to +122°F

Warranty & Support

• 5-year limited warranty
• 1-year on batteries
