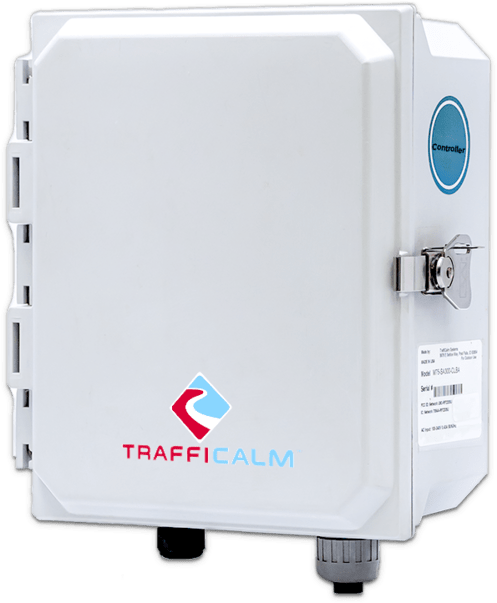

M75-SA300-CTLA — Intelligent Controller (AC Powered Series)

Part Numbers: M75-SA300-CTLA

Summary

The M75-SA300-CTLA is the AC-powered Intelligent Controller for TraffiCalm flashing systems. It manages flash activation, brightness control, operation modes, and timing while communicating with collaborators through sealed, ruggedized electronics.

Product Options

• M75-SA300-CTLA

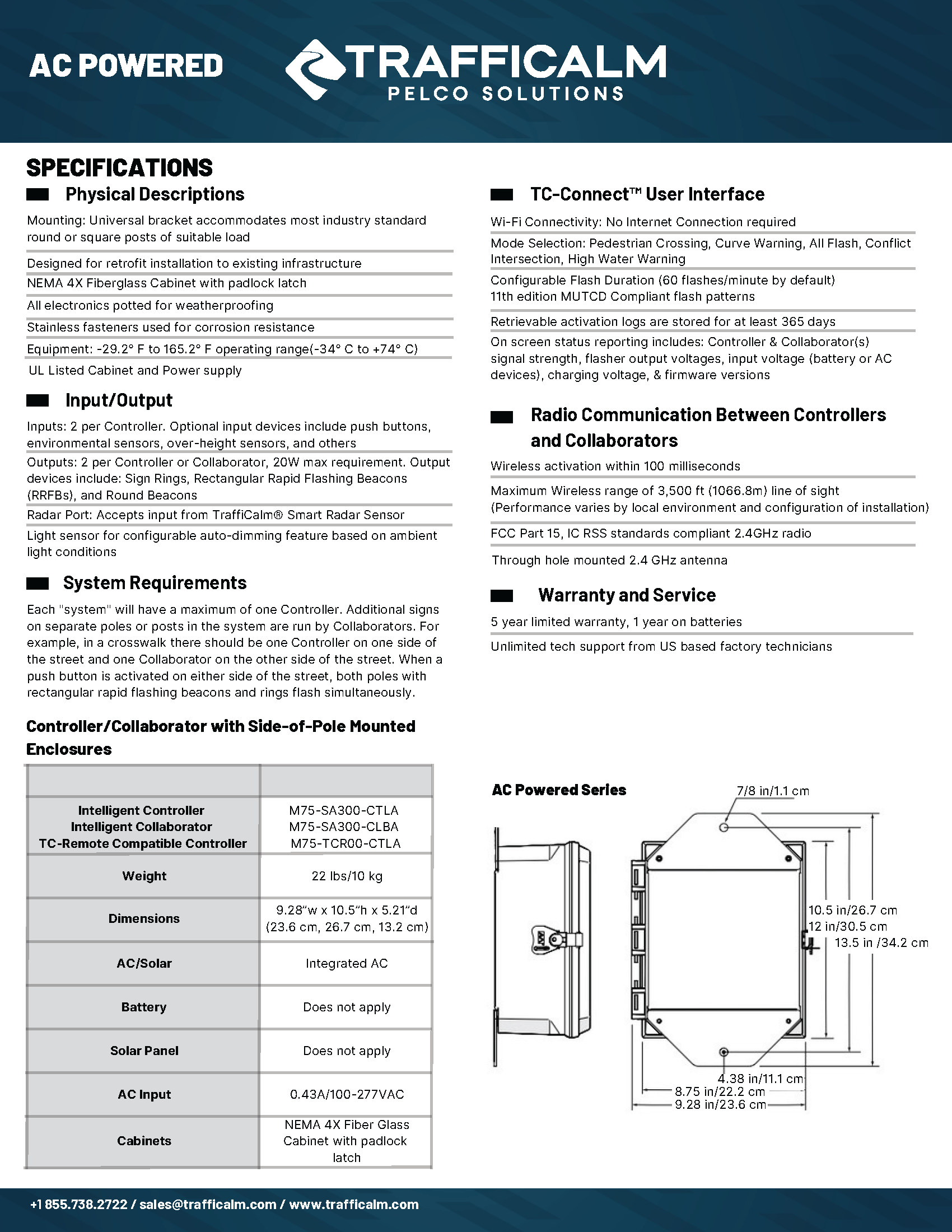

Specifications

Power

• Integrated AC power supply
• AC Input: 0.43A / 100–277 VAC

Controller

• Configurable flash duration: 60 flashes per minute (default)
• Compliant flash patterns: 11th edition MUTCD
• Configurable for:
  • All-Flash System
  • Push-2-Cross System
  • Intelligent Beacon(s)
  • Sequencing Chevron System
  • Conflict Intersection
  • High Water Warning System
• Inputs and Outputs:
  • Inputs: 2
  • Outputs: 2, 20W max
• Accepts Smart Radar Sensor input
• Ambient light sensor for dimming

Connectivity / Interface

• TC-Connect Wi-Fi configuration
• No internet required
• Wireless communication between units
• Wireless range: 1000 ft line of sight
• Activation logs stored for at least 365 days
• On-screen diagnostics and status reporting

Housing

• NEMA 4X fiberglass cabinet with padlock latch
• Electronics are fully potted
• Stainless-steel hardware
• Universal pole/post mounting bracket

Physical:

• Weight: 22 lb (10 kg)
• Dimensions: 9.28" W × 10.5" H × 5.21" D

Environmental Rating

• Operating range: −29.2°F to +165.2°F

Warranty & Support

• 5-year limited warranty
• 1-year on batteries
