M75-DE0TS-CTLS — Intelligent Controller (Dual-Radar Wrong-Way Detection, S-Series)

Part Numbers: M75-DE0TS-CTLS

Summary

The M75-DE0TS-CTLS is the S-Series dual-radar Intelligent Controller for wrong-way mitigation. It supports extended battery capacity for longer operational autonomy and uses multi-zone radar validation to suppress false activations and ensure high-integrity wrong-way event logging. This model is intended for roadway installations where long-term solar operation is required and notification systems are not permitted.

Product Options

• M75-DE0TS-CTLS

Specifications

Solar / Power

• Same solar compatibility as standard S-Series
• Supports 30W / 50W / 60W / 100W / 150W solar modules
• 40Ah total battery capacity (two 20Ah AGM batteries)

Dual-Radar Controller

• Two independent radar channels
• Target must be verified by both sensors
• Speed and directional comparison required
• Prevents false activations caused by:
  • single-sensor reflections
  • nearby traffic in adjacent lanes
  • geometrical drift
  • transient targets

Inputs / Outputs

• Radar port
• Standard controller inputs: 2 total
• Controller outputs:
  • 2 outputs
  • 20W max total
• Suitable for RRFB, LED rings, Wrong-Way sign panels, beacon strobes

Detection Zones & Event Validation

• Pre-Alert Zone
  • Early object detection
  • System flashes signs in all zones
  • No logged violation
• Confirmation Zone
  • Object must meet criteria:
    • same detection signature
    • same directional vector
    • correlated speed and movement
  • If validated — system logs a wrong-way incident
• Flash-Only Behavior
  • Flashing may occur without log creation
  • Prevents cluttering event history with false activations

Wrong-Way Event Handling

• Confirmed events recorded with timestamp
• Notification and outbound messaging disabled: Per SafePath requirement
• This model is used where confirmation is needed, but dispatch notification is not

Connectivity / Interface

• TC-Connect configuration
• Wireless communication with other system devices
• Wireless range: 1000 ft line of sight
• Local diagnostics viewable at controller
• Activation history stored at least 365 days

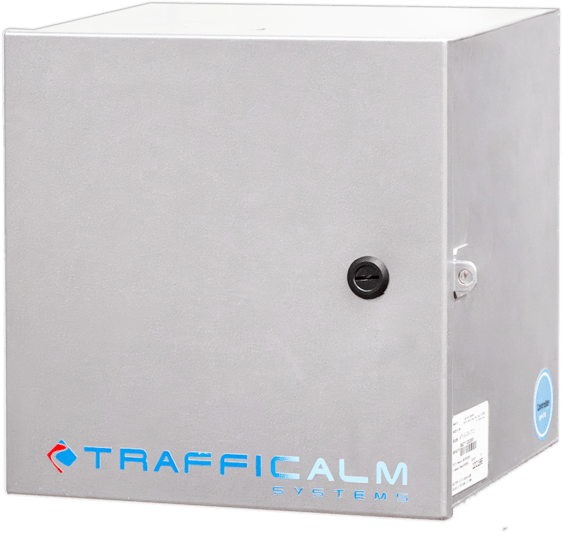

Housing

• S-Series aluminum cabinet
• Stainless-steel hardware
• Electronics fully epoxy-potted

Physical:

• Weight: 36 lb
• Dimensions: 12" × 12" × 12"

Environmental Rating

• Equipment operating range: −29.2°F to +165.2°F
• Battery operating range: −4°F to +122°F

Warranty & Support

• 5-year warranty
• 1-year battery warranty

Ordering

• M75-DE0TS-CTLS
