TC Mini Trailer

Part Number: M75-TRLER-TM00

Summary

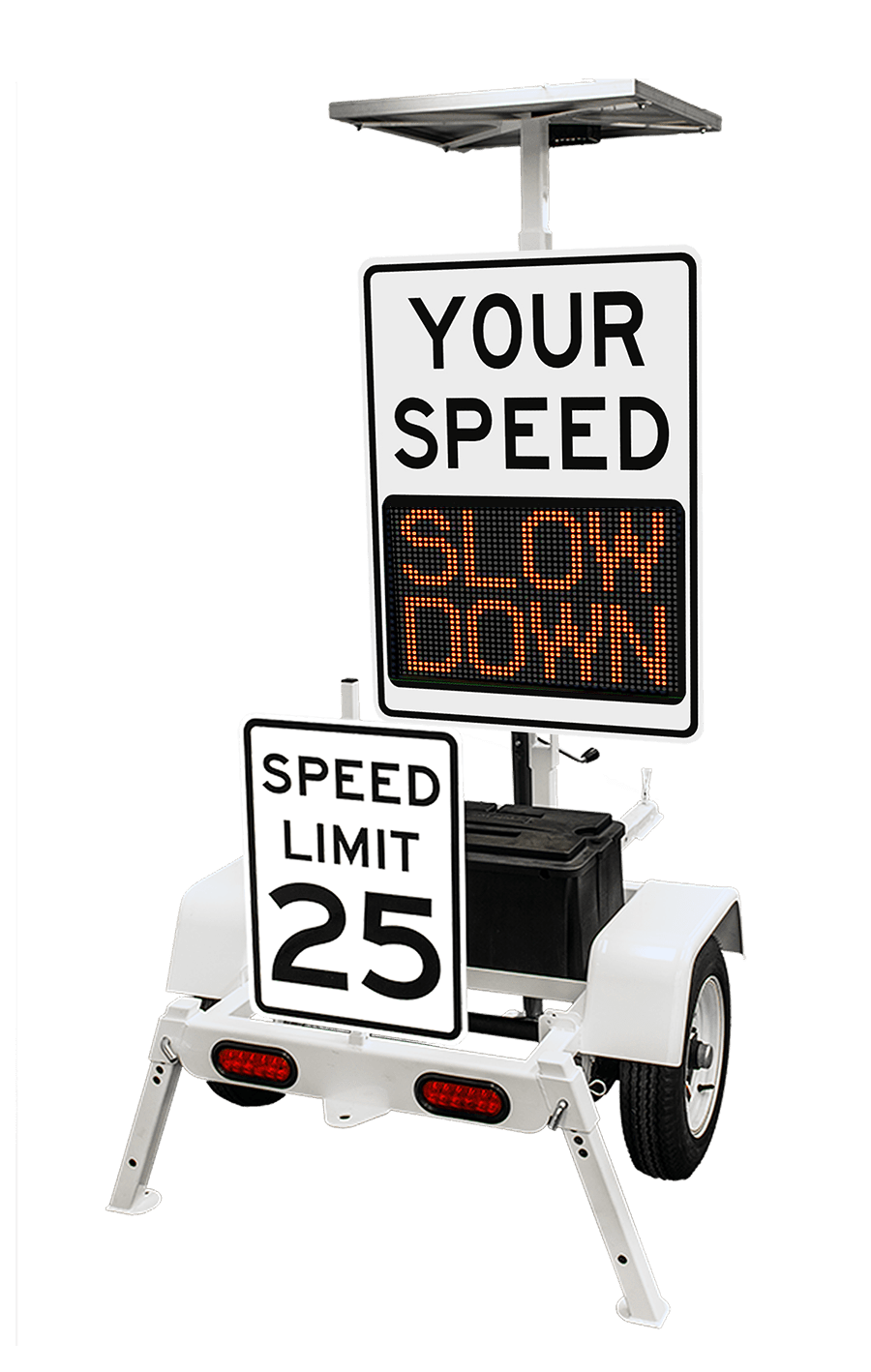

The TC Mini Trailer is a compact, lightweight, and highly portable deployment platform for TraffiCalm full-matrix radar speed signs. Designed for rapid setup by a single operator, the trailer is ideal for temporary traffic calming, school zones, work zones, enforcement points, and rotating deployment locations. Its rugged steel construction, integrated mast, onboard battery system, and optional solar charging make it suitable for long-duration field operation while remaining simple and cost-effective to deploy.

Product Options

The TC Mini Trailer is available in a single core configuration under part number M75-TRLER-TM00.

Battery, solar, and sign packages are selected at time of order.

Specifications

Construction

• Heavy-duty welded steel trailer frame
• Standard powder-coated white finish; custom colors available upon request
• Integrated adjustable mast designed for iQ1200 and iQ1500 radar speed displays
• High-impact polycarbonate enclosures for component protection
• LED DOT-compliant lighting for safe towing visibility
• 4-pin flat trailer connector for universal tow-vehicle compatibility
• Rear stabilizer jacks for secure stationary deployment
• Safety chain included for compliant road transport
• Weather-resistant wiring and sealed electrical components

Dimensions

• Transport Mode: 46″ L × 48″ W × 38″ H
• Transport Mode with Tongue Extended: 46″ L × 48″ W × 86″ H
• Deployed Mode (Mast Raised): 46″ L × 48″ W × 86″ H
• Trailer Weight with 150Ah Batteries: 328 lb
• Trailer Weight with Solar Option: 353 lb
• Tire Size: 12″

Power

• Battery bank consists of (2) 75Ah deep-cycle batteries wired in parallel for a total capacity of 150Ah
• Internal wiring rated for 90 °C, wet locations, and sunlight resistance
• Lockable battery compartment secures and protects power storage
• Integrated charge controller manages charging and load distribution
• Designed to operate TraffiCalm full-matrix radar displays for extended periods

Solar

• Optional 60W solar panel maintains charge on the 150Ah battery bank
• Solar panel ratings:
  • Operating voltage (Vmp): 17.2 V
  • Operating current (Imp): 1.16 A
  • Open-circuit voltage (Voc): 21.6 V
  • Short-circuit current (Isc): 1.31 A
• Minimum recommended blocking diode rating: 6 A
• Solar panel dimensions: 14.06″ W × 22.68″ H × 1.18″ D
• Solar panel weight: 6.17 lb
• Adjustable mount optimizes charging angle and sunlight exposure

Environmental

• Operating temperature range: −29 °F to +165 °F (−34 °C to +74 °C)

Warranty

• 3-year limited warranty on trailer hardware
• 1-year warranty on batteries

Why Choose the TC Mini Trailer?

• Provides a fully portable radar speed sign deployment solution
• Compatible with iQ1200 and iQ1500 full-matrix radar displays
• Long-duration operation supported by a 150Ah battery bank
• Optional 60W solar charging extends field deployment time
• Compact footprint makes towing, storage, and placement easy
• Rugged design ensures reliable performance in demanding roadside environments
• Ideal for agencies needing temporary, mobile, or rotating traffic-calming systems
