M75-DE0TS-CTLE — Intelligent Controller (Dual-Radar Wrong-Way Detection)

Part Numbers: M75-DE0TS-CTLE

Summary

The M75-DE0TS-CTLE is a specialized Intelligent Controller designed for wrong-way mitigation. Based on the E-Series platform, it incorporates dual-radar verification logic and multi-zone activation behavior to ensure only true wrong-way violations are logged. This controller is intended for applications where incorrect activations must be minimized and notification systems are not required.

Product Options

• M75-DE0TS-CTLE

Specifications

Solar / Power

• Same solar compatibility as E-Series controllers
• Supports 30W / 50W / 60W solar
• 13Ah, 12V AGM battery

Dual-Radar Controller

• Dual radar calibration working in correlation
• Target must be detected by both radars
• Controllers compare speed, direction, and vector alignment
• Reduces false triggers caused by:
  • vehicle reflections
  • median turns
  • arterial crossings
  • environmental conditions

Inputs / Outputs

• Radar inputs: dual verified
• Standard controller inputs: 2 total
  • push buttons (if used)
  • vehicle detection
  • external triggering
  • legacy activation sources
• Controller outputs:
  • 2 total
  • 20W max
  • Used for RRFBs, LED rings, beacons, or signs

Detection Zones & Event Logic

• Pre-Alert Zone
  • Initial detection
  • Flashes wrong-way indicators in all defined zones
  • Does not create logged incident
• Confirmation Zone
  • Must detect the same object
  • Must correlate with Pre-Alert detection
  • Must match speed profile
  • Must match vector direction
  • If valid — a wrong-way event is logged
• Flash-Only Mode
  • Flashing may occur without event logging
  • Event logging only occurs when both radars confirm

Wrong-Way Event Handling

• Confirmed events: Date, time, duration, and triggering data stored
• Notification and back-channel reporting are disabled
  • Required by SafePath agreement
  • This is the only TraffiCalm controller that has dual-radar verification and intentionally no notification feature

Connectivity / Interface

• TC-Connect local wireless setup
• Wireless communication between controllers and collaborators
• Wireless range: 1000 ft line of sight
• On-device diagnostics
• Activation log retention: 365+ days

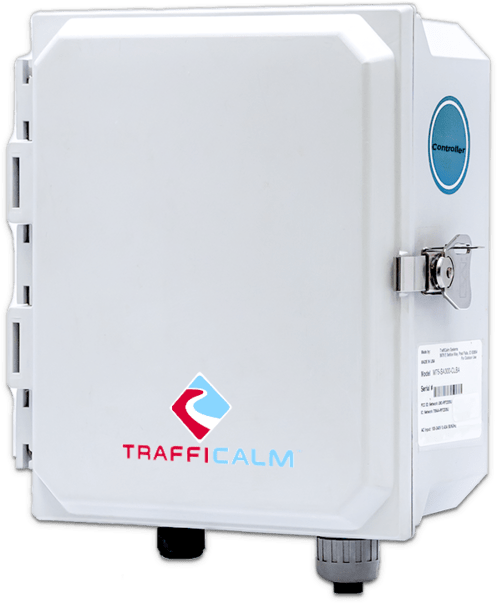

Housing

• E-Series standard enclosure
• NEMA 4X fiberglass
• Fully potted electronics
• Stainless hardware

Physical:

• Weight: 29 lb
• Dimensions: 9.28" W × 10.5" H × 5.21" D

Environmental Rating

• Operating range: −29.2°F to +165.2°F

Warranty & Support

• 5-year warranty
• 1-year on batteries

Ordering

• M75-DE0TS-CTLE
