M75-DE0TS-CTLA — Intelligent Controller (Dual-Radar Wrong-Way Detection, AC Powered)

Part Numbers: M75-DE0TS-CTLA

Summary

The M75-DE0TS-CTLA is the AC-powered version of the dual-radar Intelligent Controller for wrong-way mitigation. It provides correlated radar validation, multi-zone detection, and false-trigger reduction. It is intended for installations with available AC infrastructure where outbound reporting and messaging are not required.

Product Options

• M75-DE0TS-CTLA

Specifications

Power

• AC powered
• No battery
• No solar input
• Integrated AC input conversion: 0.43A / 100–277 VAC

Dual-Radar Controller

• Two radar inputs working in dual-validation
• Both radars must detect same object
• Speed and direction consistency required
• Designed to eliminate false positives from:
  • lane curvature
  • roadside objects
  • one-radar reflections
  • nearby traffic anomalies

Inputs / Outputs

• Radar ports: dual
• Standard controller inputs: 2 total
• Outputs:
  • 2 total
  • 20W max total
• Supports: RRFBs, beacons, LED rings, and wrong-way sign activation

Detection Zones & Logic

• Pre-Alert Zone
  • Initial object detection
  • System flashes indicators in all zones
  • No logged event
• Confirmation Zone
  • Secondary validation
  • Object ID match
  • Speed correlation within allowable tolerance
  • If confirmed — wrong-way event logged
• Flash-Only Behavior
  • Visual warning only
  • No archival event if no confirmation occurs

Wrong-Way Event Handling

• Event is logged with timestamp and capture data
• Notification is disabledIn compliance with SafePath agreement
• This model retains dual-radar confirmation as its distinguishing safety mechanism

Connectivity / Interface

• TC-Connect local configuration
• Wireless communication between controllers/collaborators
• Wireless range: 1000 ft line of sight
• On-screen diagnostics and system visualization
• Activation data retained for minimum 365 days

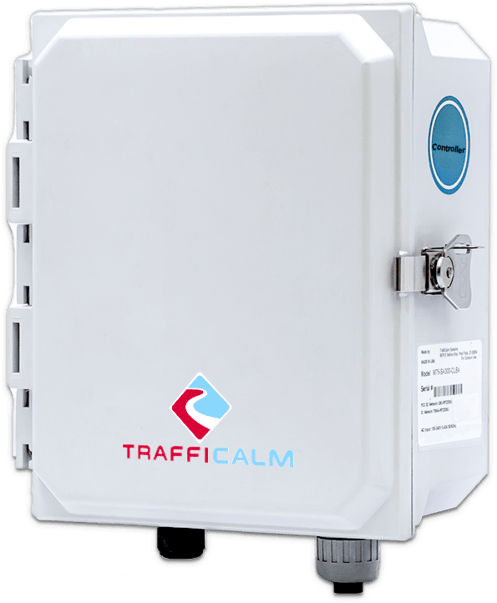

Housing

• Same enclosure as AC-Series controllers
• NEMA 4X fiberglass
• Fully epoxy-potted electronics
• Stainless hardware

Physical:

• Weight: 22 lb (approx., same as CTLA)
• Dimensions: 9.28" W × 10.5" H × 5.21" D

Environmental Rating

• Operating range: −29.2°F to +165.2°F

Warranty & Support

• 5-year warranty
• No battery — so no battery warranty section

Ordering

• M75-DE0TS-CTLA
