CTL3 / CLB3 — 30W Solar / 12Ah Battery Systems

Part Numbers: M75-SA300-CTL3, M75-SA300-CLB3, M75-TCR00-CTL3

MUTCD Sign Rings: If your controller is running firmware 401N or >, adjust brightness from 100% to 60%. Failure to do so will result in higher power draw and solar systems may fail.

Is my ring MUTCD?
There is a -M at the end of the model number for MUTCD compliant rings

Summary

This 30W Solar / 12Ah configuration increases solar capacity for improved charging performance and greater reliability in shaded or cloudy conditions. Suitable for heavier activation cycles while maintaining the compact 12Ah battery format.

Product Options

• M75-SA300-CTL3 – 30W Solar / 12Ah
• M75-SA300-CLB3 – 30W Solar / 12Ah
• M75-TCR00-CTL3 – 30W Solar / 12Ah (TC-Remote enabled)

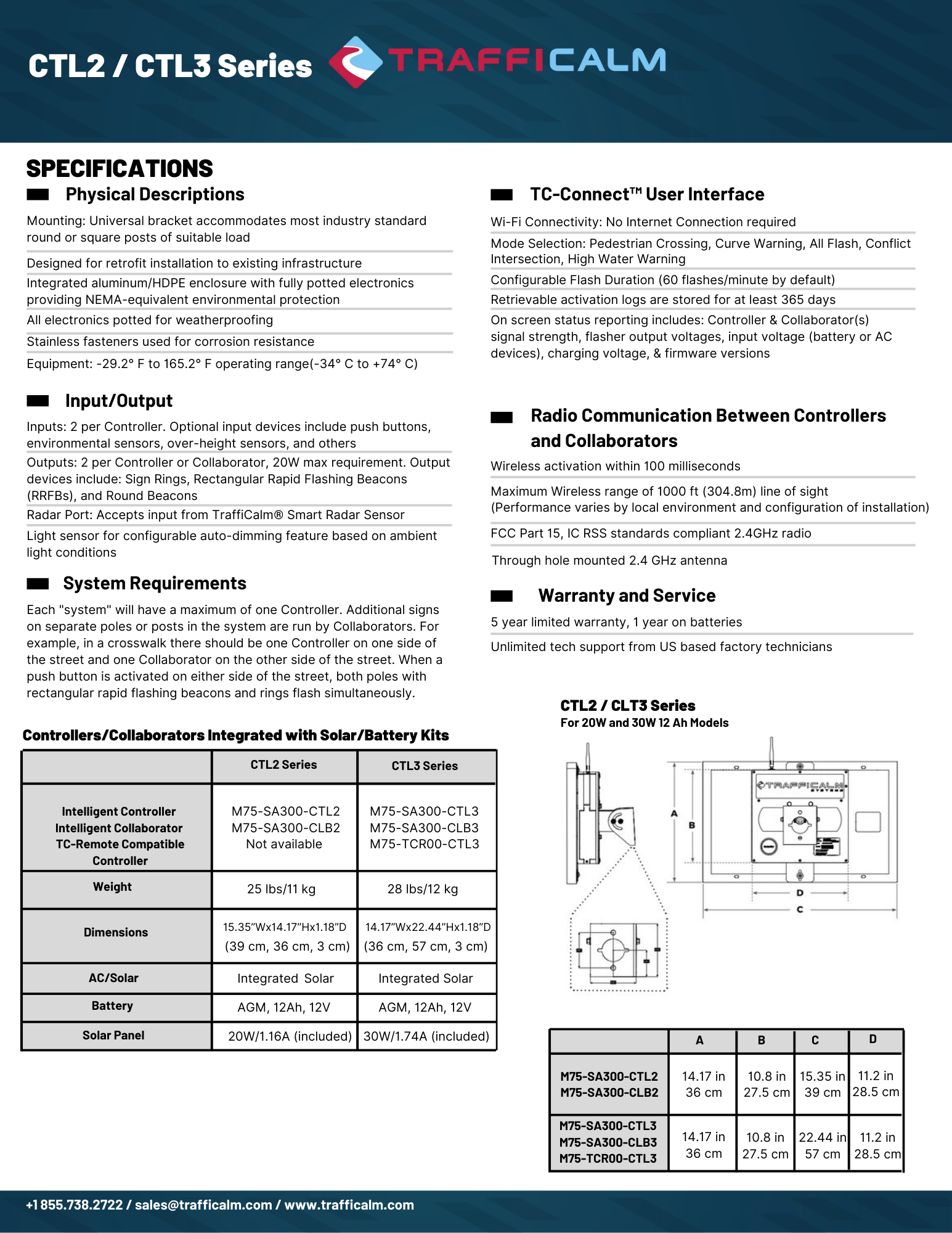

Specifications

Solar

• 30W solar panel
• Increased solar charging capacity
• Improved low-light performance

Battery Storage

• 12Ah AGM battery
• Sealed design

Controller

• CTL3 series activation controller
• Designed for LED flash systems

Connectivity

• Wired or push-button activation
• TC-Remote-enabled model available for remote unit access

Housing

• Environmental sealing
• Solar engine built-in

Environmental

• Operating temperature: −29.2°F to +165.2°F (−34°C to +74°C)

Warranty

• 5-year limited warranty
• Unlimited technical assistance

Why Choose the 30W / 12Ah CTL3 System?

• Improved solar collection
• Higher system uptime in heavily shaded conditions
• TC-Remote option enables remote system administration
• Manufactured in the United States
• Build America / Buy America compliant
