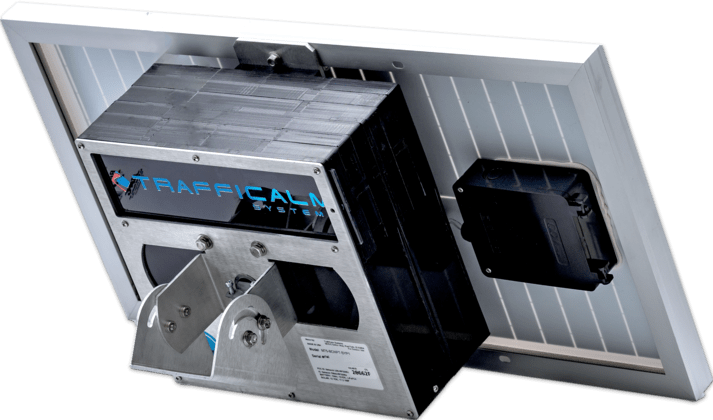

Duplex — 20W Solar / 24Ah Battery Systems

Part Numbers: M75-SA30M-CTL2, M75-SA30M-CLB2

Summary

The Duplex 20W / 24Ah configuration provides expanded battery storage for extended nighttime operation and increased activation cycles. Intended for installations where consistent solar exposure is present, but longer runtime is required.

Product Options

• M75-SA30M-CTL2 – 20W Solar / 24Ah Battery
• M75-SA30M-CLB2 – 20W Solar / 24Ah Battery

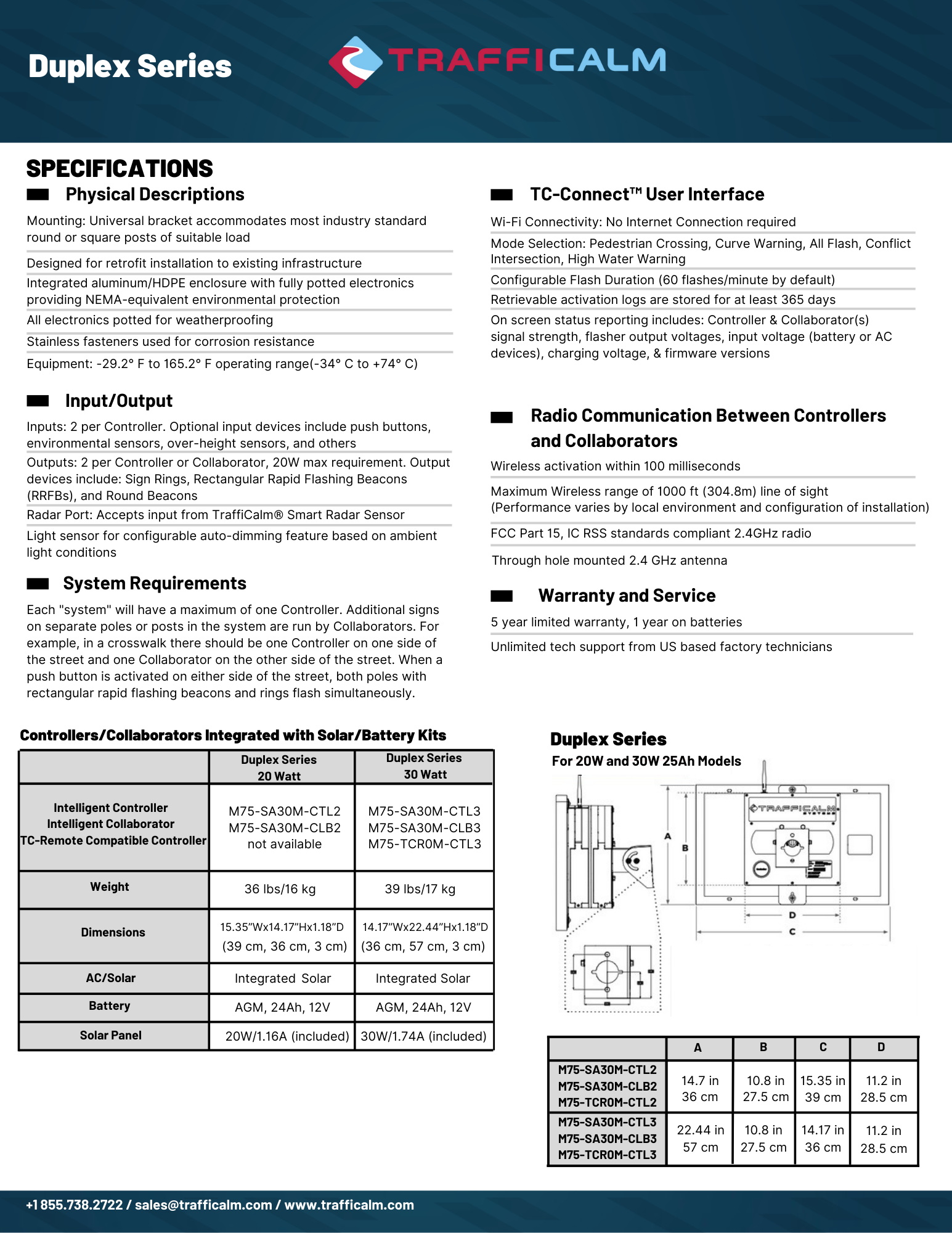

Specifications

Solar

• 20W solar panel
• Configurable mounting

Battery Storage

• 24Ah AGM battery
• Increased energy reserve

Controller

• Duplex controller platform
• Multi-output device support

Connectivity

• Pushbutton or wired activation

Housing

• weather-sealed enclosure

Environmental

• Operating range: −29.2°F to +165.2°F (−34°C to +74°C)

Warranty

• 5-year limited warranty
• Unlimited factory technical support

Why Choose the 20W / 24Ah Duplex System?

• Larger battery storage for longer operational duration
• Supports multi-device installations
• TC-Remote version available
• Built in an ISO certified U.S. facility
• Build America / Buy America compliant
