12″ Radar Speed Value Sign – 60 W Solar System
12" solar-powered radar speed sign: High-visibility LED display for municipal streets, 600 ft range
Updated
by Dylan Solberg
Part Number: M75-012SE-002x
Summary

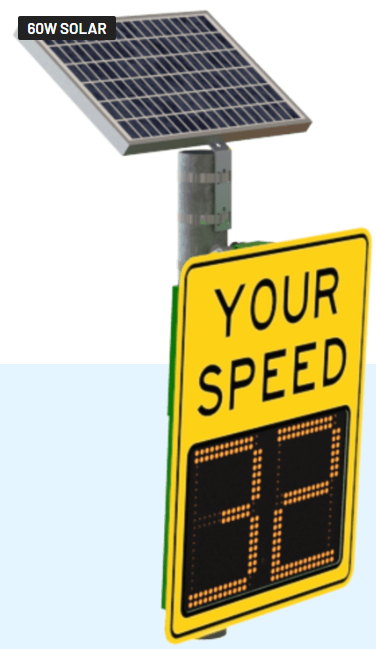

The Value Series features bright 12″ (30.5 cm) LED characters that are legible from up to 600 feet (182.9 m) away. Designed for neighborhood and municipal streets where visibility matters, this sign includes a 60 W solar system for robust power performance in less sunny environments.
Product Options
- M75-012SE-0021: 12″ Radar Speed Value Sign – White – 60 W Solar System
- M75-012SE-0022: 12″ Radar Speed Value Sign – Fluorescent Yellow-Green – 60 W Solar System
- M75-012SE-0023: 12″ Radar Speed Value Sign – Orange – 60 W Solar System
- M75-012SE-0024: 12″ Radar Speed Value Sign – Yellow – 60 W Solar System

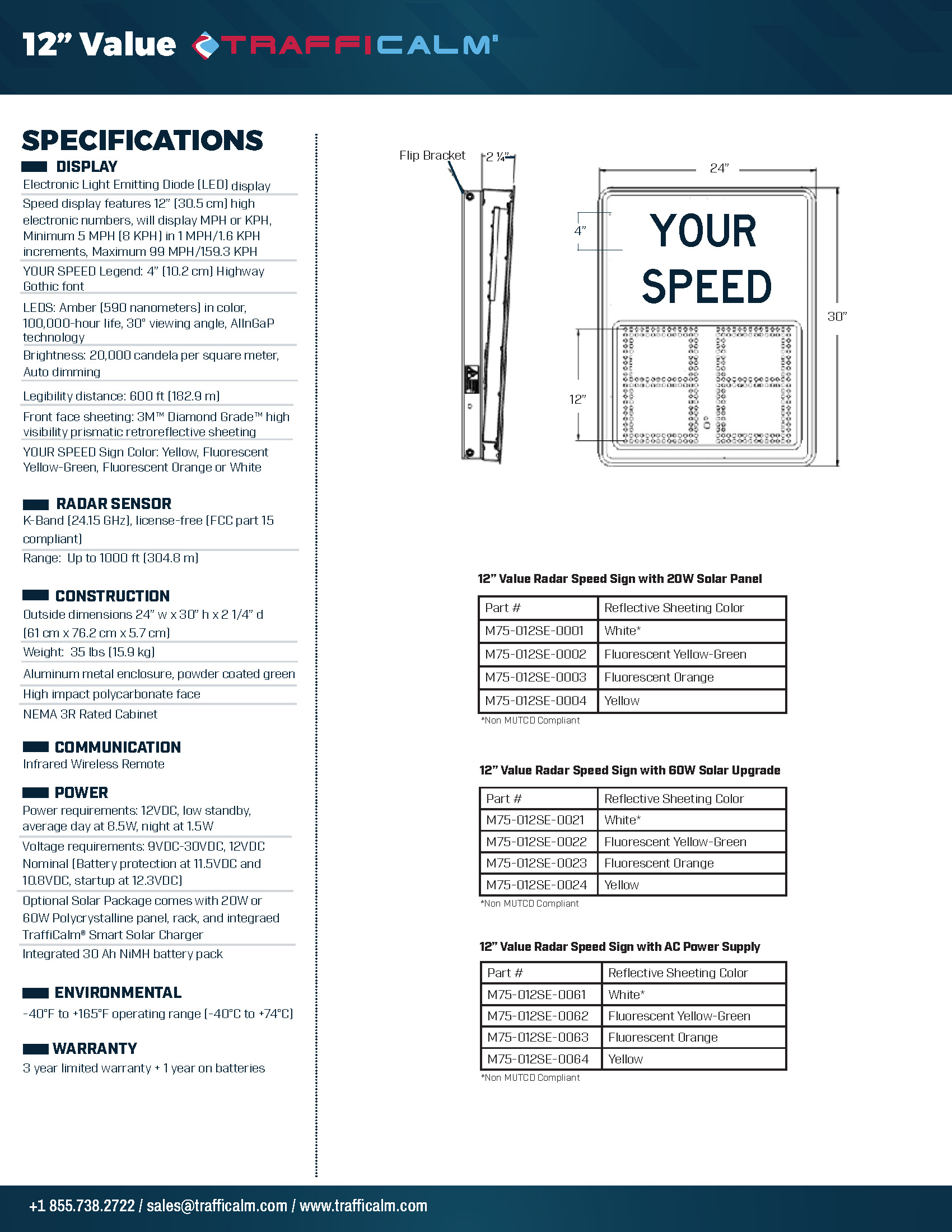

Specifications
Display
- 12″ (30.5 cm) high electronic numbers
- Displays from 5 mph (8 kph) in 1 mph / 1.6 kph increments up to 99 mph (159.3 kph)
- “YOUR SPEED” legend uses 4″ (10.2 cm) Highway Gothic font
- Amber LEDs (590 nm), rated life 100,000 hours
- Viewing angle approximately 15°
- Brightness up to 20,000 cd/m² with auto-dimming
- Legibility range up to 600 ft (182.9 m)
- Front face uses high-visibility prismatic retroreflective sheeting
Radar Sensor
- K-Band (24.15 GHz), license-free (FCC Part 15 compliant)
- Detection range up to approximately 1000 ft (304.8 m)
Construction
- Size: 24″ W × 30″ H × 2¼″ D (61 cm × 76.2 cm × 5.7 cm)
- Weight: 35 lb (15.9 kg)
- Aluminum enclosure, powder-coated finish
- High-impact polycarbonate face
- Cabinet rated NEMA 3R
Communication
- Infrared wireless remote control
Power
- Nominal: 12 VDC
- Low standby consumption: ~8.5 W daytime, ~1.5 W nighttime
- Operating voltage range: 9 VDC to 30 VDC
- Battery protection disconnects at ~11.5 V and ~10.8 V
- Auto-startup above 12.3 V
- 60 W solar package included: solar panel, rack, and integrated smart solar charger
- Integrated ~30 Ah NiMH battery pack
Environmental
- Operating temperature range: −29 °F to +165 °F (−34 °C to +74 °C)
Warranty
- 3-year limited warranty on electronics
- 1-year warranty on the battery pack
Why Choose This Model?
- Larger 12″ display ensures high visibility from longer distances
- 60 W solar kit offers stronger autonomy in less ideal solar exposure
- Ideal for municipal streets, permanent installations, and higher-volume traffic zones
- Rugged design, simple setup, and proven performance
