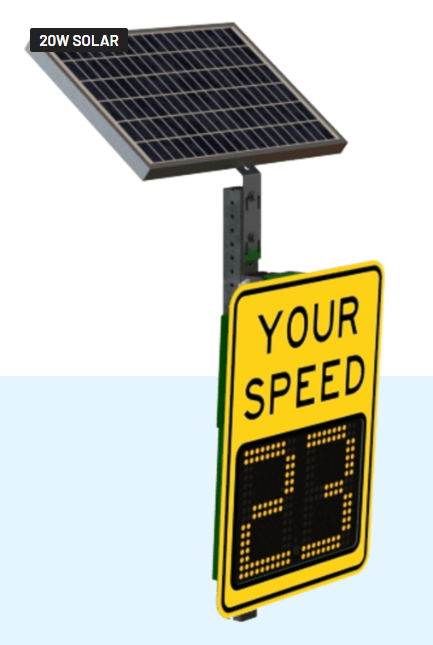

9″ Radar Speed Value Sign – 20 W Solar System

Part Number: M75-009SE-000x (various color options)

Summary

The Value Series features bright 9″ (22.9 cm) LED characters that are legible from up to 450 ft (137 m). Designed to increase driver awareness and improve safety on neighborhood streets, this sign provides an economical and effective way to reduce speeding in residential areas where a large percentage of crashes occur each year.

Product Options

• M75-009SE-0001: 9″ Radar Speed Value Sign – White – 20W Solar System
• M75-009SE-0002: 9″ Radar Speed Value Sign – Fluorescent Yellow-Green – 20W Solar System
• M75-009SE-0003: 9″ Radar Speed Value Sign – Orange – 20W Solar System
• M75-009SE-0004: 9″ Radar Speed Value Sign – Yellow – 20W Solar System

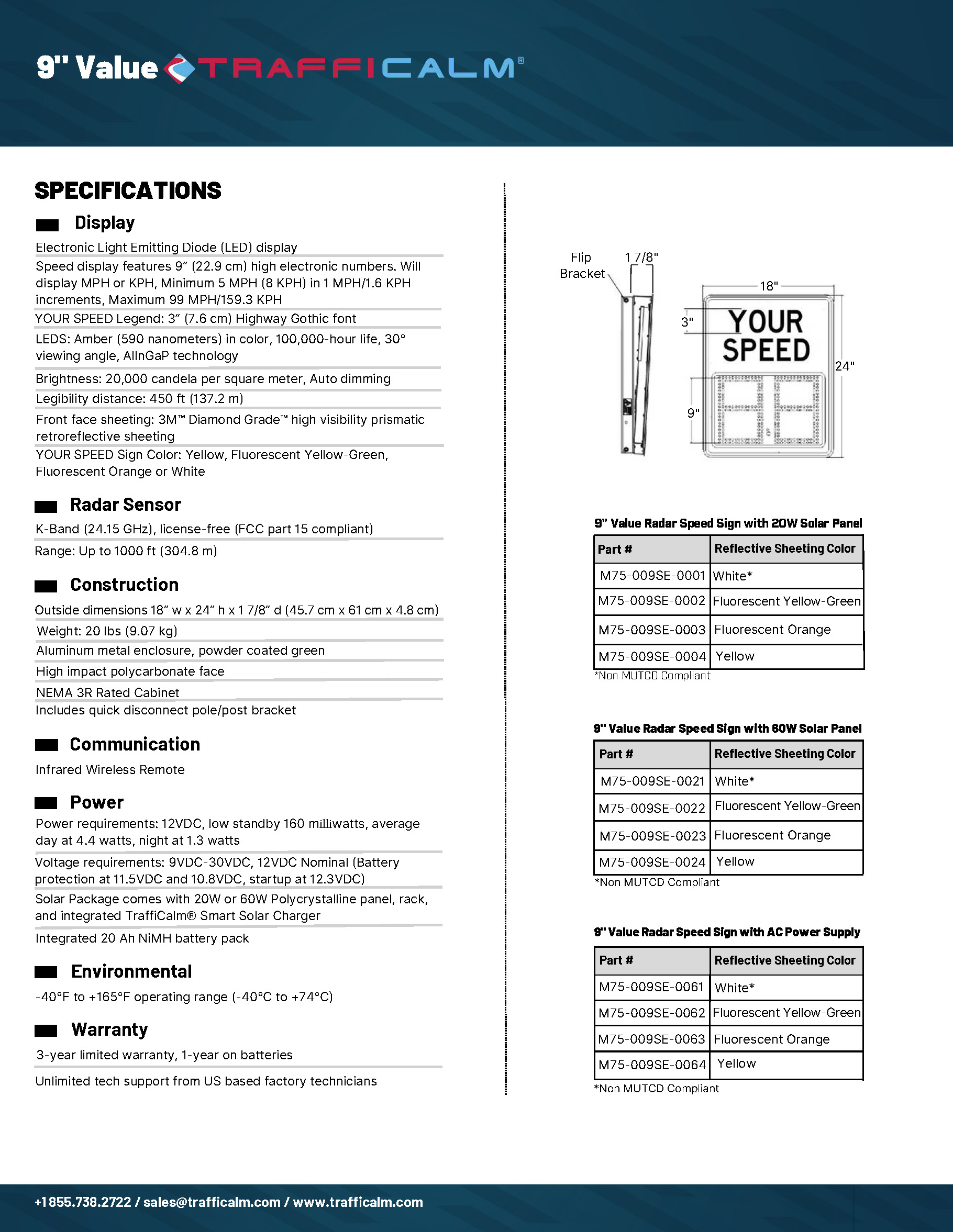

Specifications

Display

• 9″ (22.9 cm) high electronic numbers
  • Minimum display of 5 mph (8 kph)
  • Maximum display of 99 mph (159 kph)
  • Shown in 1 mph / 1.6 kph increments
• “YOUR SPEED” legend uses 3″ (7.6 cm) Highway Gothic font
• Amber LEDs (590 nm), 100,000-hour life, 30° viewing angle, AlInGaP technology
• Brightness up to 20,000 cd/m² with automatic ambient dimming
• Legibility up to 450 ft (137 m)
• Front face uses 3M Diamond Grade high-visibility prismatic sheeting

Radar Sensor

• K-Band (24.15 GHz), unlicensed FCC Part 15 compliant
• Detection range up to 1000 ft (305 m)

Construction

• Dimensions: 18″ W × 24″ H × 1 7/8″ D
• Weight: 20 lb (9.07 kg)
• Enclosure: Powder-coated aluminum with high-impact polycarbonate front
• Cabinet: NEMA 3R rated for outdoor installations
• Includes quick-disconnect mounting bracket

Power

• Nominal 12 VDC system
• Very low standby consumption
  • Day operation ~8.5 W
  • Night operation ~1.5 W
• Voltage operating range: 9–30 VDC
• Battery protection thresholds:
  • Disconnect at 11.5 V and 10.8 V
  • Startup at ≥12.3 V
• Solar package includes 20W polycrystalline panel, rack, and integrated smart solar charger
• Integrated 20 Ah NiMH battery pack

Environmental

• Operating temperature: −29 °F to +165 °F (−34 °C to +74 °C)

Warranty

• 3-year limited warranty on the sign electronics
• 1-year warranty on batteries
• U.S.-based technical support included

Why Choose the Value Series?

• Most cost-effective radar speed sign solution
• Simple configuration using a handheld IR remote
• Durable metal cabinet designed for long-term field performance
• Bright, clear LED display improves driver awareness and speed compliance
