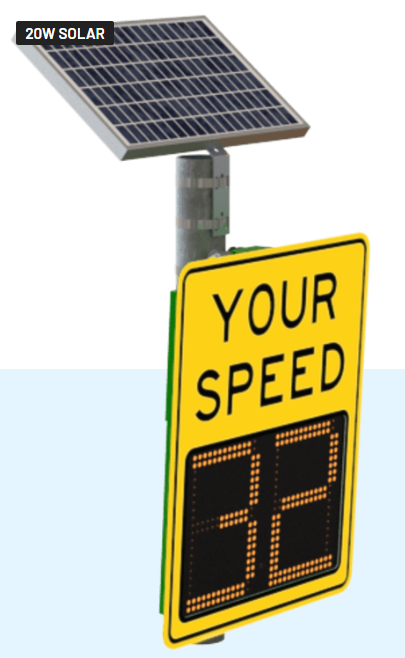

12″ Radar Speed Value Sign – 20 W Solar System
12" solar radar speed sign: High-visibility LED display reduces speeding with intelligent traffic management
Updated
by Dylan Solberg
Part Number: M75-012SE-000x
Summary
The Value Series features bright 12″ (30.5 cm) LED characters that can be legible from up to 600 ft (182.9 m) away. Designed for neighborhood streets where high-visibility messaging helps reduce speeding, this sign includes a 20 W solar system for permanent installation.
Product Options
- M75-012SE-0001: 12″ Radar Speed Value Sign – White – 20 W Solar System
- M75-012SE-0002: 12″ Radar Speed Value Sign – Fluorescent Yellow-Green – 20 W Solar System
- M75-012SE-0003: 12″ Radar Speed Value Sign – Orange – 20 W Solar System
- M75-012SE-0004: 12″ Radar Speed Value Sign – Yellow – 20 W Solar System
Specifications
Display
- 12″ (30.5 cm) high electronic numbers; displays from 5 mph (8 kph) in 1 mph/1.6 kph increments up to 99 mph (159.3 kph)
- “YOUR SPEED” legend uses 4″ (10.2 cm) Highway Gothic font
- Amber LEDs (590 nm), rated 100,000 hours, 15° viewing angle, AlInGaP technology
- Brightness: 20,000 cd/m² with auto-dimming
- Legibility distance up to 600 ft (182.9 m)
- Front face sheeting: high-visibility prismatic material
Radar Sensor
- K-Band (24.15 GHz), license-free FCC Part 15 compliant
- Detection range up to 1,000 ft (304.8 m)
Construction
- Size: 24″ W × 30″ H × 2 ¼″ D (61 cm × 76.2 cm × 5.7 cm)
- Weight: 35 lb (15.9 kg)
- Aluminum enclosure, powder coated; high-impact polycarbonate face; NEMA 3R rating
Communication
Power
- 12 VDC nominal, very low standby consumption (~8.5 W daytime, ~1.5 W nighttime)
- Operating voltage: 9–30 VDC
- Battery protection at ~11.5 VDC and ~10.8 VDC; startup at ~12.3 VDC
- Solar package includes the 20 W panel, rack, and integrated smart solar charger; integrated ~30 Ah NiMH battery pack
Environmental
- Operating temperature range: -29 °F to +165 °F (-34 °C to +74 °C)
Warranty
- 3-year limited warranty on electronics
- 1-year warranty on the battery pack
Why Choose This Model?
- Larger 12″ display ensures higher visibility from longer distances
- Economical solar-powered solution for permanent installations
- Rugged construction and simplified setup make it ideal for neighborhood and municipal deployments
Hand-held infrared remote control
