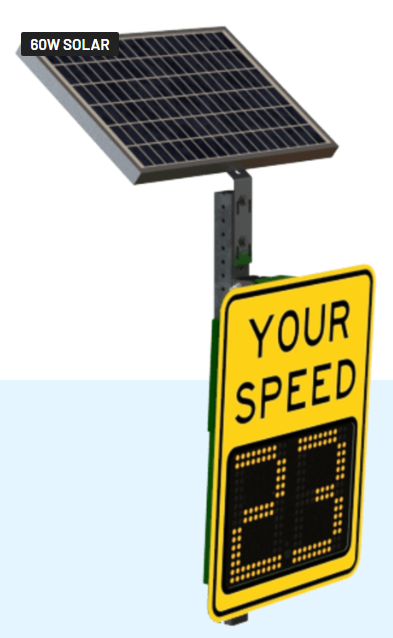

9″ Radar Speed Value Sign – 60 W Solar System

Part Number: M75-009SE-002x (various color options)

Summary

The Value Series features bright 9″ (22.9 cm) LED characters that can be legible from up to 450 ft (137.2 m) away. This sign is designed to raise driver awareness of their speed on neighborhood streets, providing a cost-effective solution for traffic calming.

Product Options

• M75-009SE-0021: 9″ Radar Speed Value Sign – White – 60 W Solar System
• M75-009SE-0022: 9″ Radar Speed Value Sign – Fluorescent Yellow-Green – 60 W Solar System
• M75-009SE-0023: 9″ Radar Speed Value Sign – Orange – 60 W Solar System
• M75-009SE-0024: 9″ Radar Speed Value Sign – Yellow – 60 W Solar System

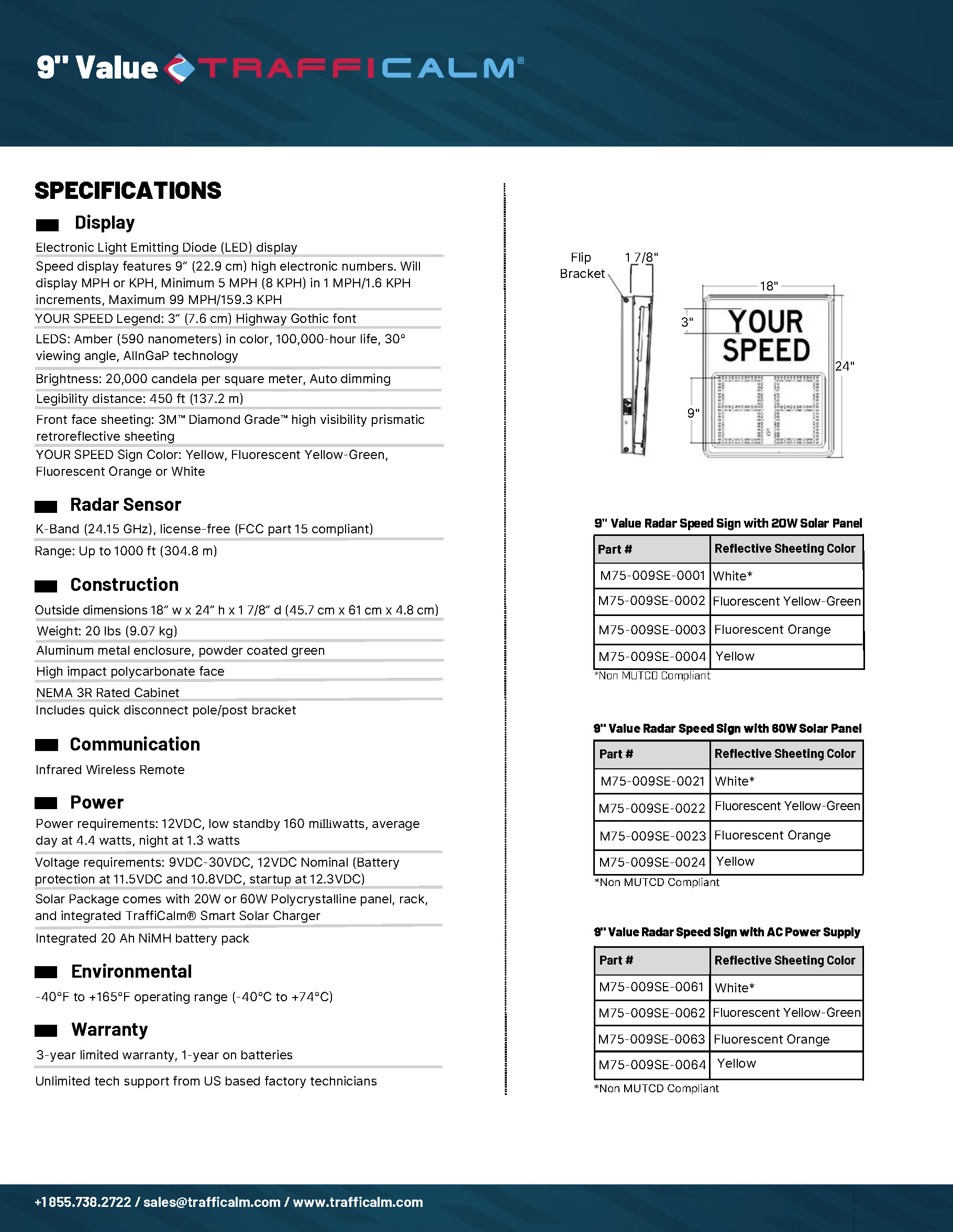

Specifications

Display

• 9″ (22.9 cm) high electronic numbers
  • Displays from minimum 5 mph (8 kph) in 1 mph/1.6 kph increments, up to maximum 99 mph (159.3 kph)
• “YOUR SPEED” legend uses 3″ (7.6 cm) Highway Gothic font
• Amber LEDs (590 nm), with 100,000-hour life, 30° viewing angle, AlInGaP technology
• Brightness up to 20,000 cd/m², with automatic ambient dimming
• Legibility distance: up to 450 ft (137.2 m)
• Front-face sheeting: 3M™ Diamond Grade™ high visibility prismatic retroreflective sheeting

Radar Sensor

• K-Band (24.15 GHz), license-free (FCC part 15 compliant)
• Detection range: Up to 1,000 ft (304.8 m)

Construction

• Size: 18″ W × 24″ H × 1 7/8″ D (45.7 cm × 61 cm × 4.8 cm)
• Weight: 20 lb (9.07 kg)
• Enclosure: Powder-coated aluminum, green finish
• Face: High-impact polycarbonate
• Cabinet rating: NEMA 3R
• Includes quick-disconnect pole/post mounting bracket

Power

• Nominal: 12 VDC
• Low standby power consumption: average ~8.5 W during day, ~1.5 W at night
• Operating voltage range: 9–30 VDC; nominal 12 VDC
• Battery protection: Disconnect at 11.5 VDC and 10.8 VDC; startup at 12.3 VDC
• Solar package includes: 60 W polycrystalline panel, rack, and integrated smart solar charger
• Battery pack: Integrated 20 Ah NiMH battery

Environmental

Warranty

• 3-year limited warranty on sign electronics
• 1-year warranty on batteries
• U.S.-based technical support included

Why Choose the Value Series?

• Most cost-effective traffic calming radar speed sign solution
• Simple operation via handheld IR remote control
• Durable metal enclosure designed for long-term deployment
• Proven high-visibility LED display enhances driver awareness and speed compliance

Operating range: –29.2 °F to +165.2 °F (–34 °C to +74 °C)
