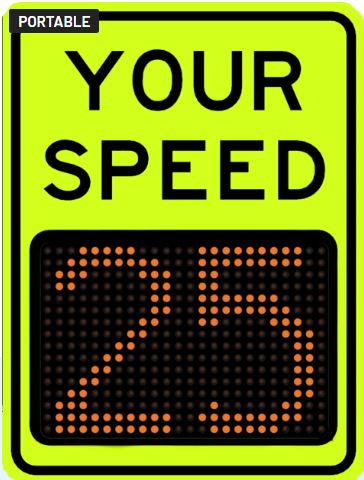

12″ Value Portable Radar Speed Sign – 30Ah Battery

Part Number: M75-012SE-PK0x

Summary

This portable model offers the same high-visibility 12″ (30.5 cm) LED digits as the permanent Value Series but in a fully mobile, self-contained package. Designed for temporary deployments, rotating sites, and event use, the unit includes an integrated 30Ah battery pack and AC charger so no solar or external power up front is required. The display is legible up to 600 ft (182.9 m).

Product Options

• M75-012SE-PK01: 12″ Value Portable Sign – White – 30Ah Battery
• M75-012SE-PK02: 12″ Value Portable Sign – Fluorescent Yellow-Green – 30Ah Battery
• M75-012SE-PK03: 12″ Value Portable Sign – Orange – 30Ah Battery
• M75-012SE-PK04: 12″ Value Portable Sign – Yellow – 30Ah Battery

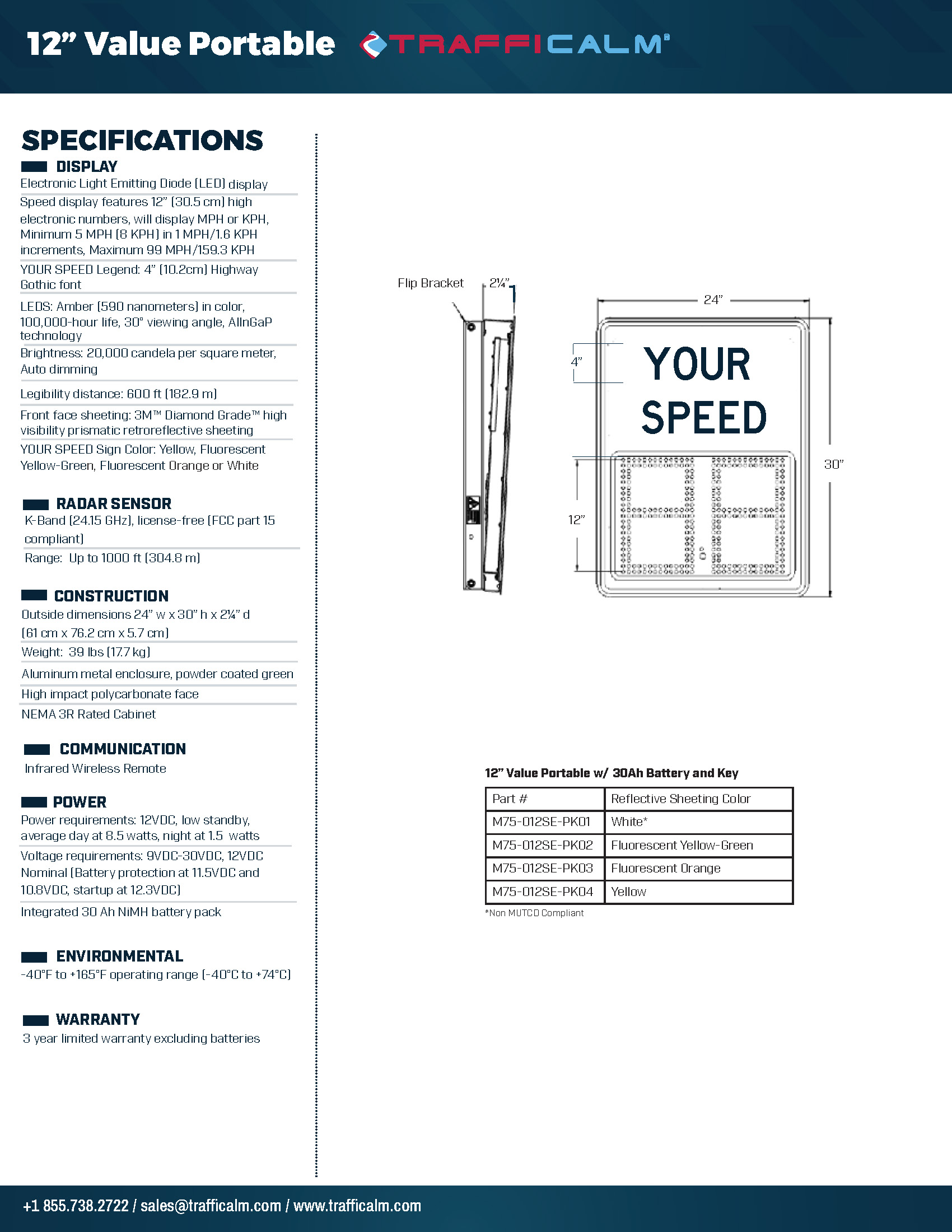

Specifications

Display

• 12″ (30.5 cm) high electronic numbers
• Displays from 5 mph (8 kph) to 99 mph (159.3 kph) in 1 mph increments
• “YOUR SPEED” legend uses 4″ (10.2 cm) Highway Gothic font
• Amber LEDs (590 nm), 100,000-hour rated life
• Viewing angle up to 15°
• Brightness up to 20,000 cd/m² with automatic dimming
• Legibility distance: up to 600 ft (182.9 m)
• Front face uses high-visibility prismatic retroreflective sheeting

Radar Sensor

• K-Band (24.15 GHz), license-free (FCC Part 15 compliant)
• Detection range up to ~1,000 ft (304.8 m)

Construction

• Size: 24″ W × 30″ H × 2¼″ D (61 cm × 76.2 cm × 5.7 cm)
• Weight: approximately 39 lb (17.7 kg)
• Aluminum powder-coated enclosure, high-impact polycarbonate face, NEMA 3R rated cabinet

Communication

• Infrared wireless remote control

Power

• Integrated 30 Ah NiMH battery pack
• Nominal 12 VDC operation; low standby consumption (~8.5 W day, ~1.5 W night)
• Operating voltage: 9–30 VDC; startup at ~12.3 V; battery protection disconnects around ~11.5 V and ~10.8 V

Environmental

• Operating temperature range: -29 °F to +165 °F (-34 °C to +74 °C)

Warranty

• 3-year limited warranty on electronics
• 1-year warranty on the battery pack

Why Choose This Model?

• Fully self-contained 12″ radar speed sign with no solar kit required
• Ideal for temporary, mobile, rotating, or event-based deployments
• High visibility display promotes driver awareness and speed compliance
• Lightweight enough for rapid relocation, yet rugged enough for outdoor use
