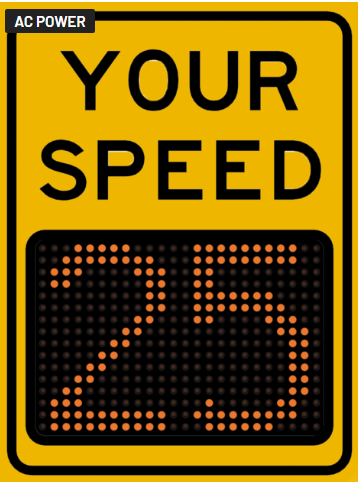

12″ Radar Speed Value Sign – AC Power Supply

12" high-visibility LED speed sign: permanent installation, displays speeds 5-99 mph, legible to 600 ft

Dylan Solberg
Updated by Dylan Solberg

Part Number: M75-012SE-006x

TraffiCalm Pelco Solutions


Summary

The Value Series features bright 12″ (30.5 cm) LED characters that are legible from up to 600 ft (182.9 m) away. Designed for permanent installations with dedicated AC power, this version provides a cost-effective, high-visibility driver feedback sign solution for neighborhood streets and higher-volume traffic zones.


Product Options

  • M75-012SE-0061: 12″ Radar Speed Value Sign – White – AC Power Supply
  • M75-012SE-0062: 12″ Radar Speed Value Sign – Fluorescent Yellow-Green – AC Power Supply
  • M75-012SE-0063: 12″ Radar Speed Value Sign – Orange – AC Power Supply
  • M75-012SE-0064: 12″ Radar Speed Value Sign – Yellow – AC Power Supply

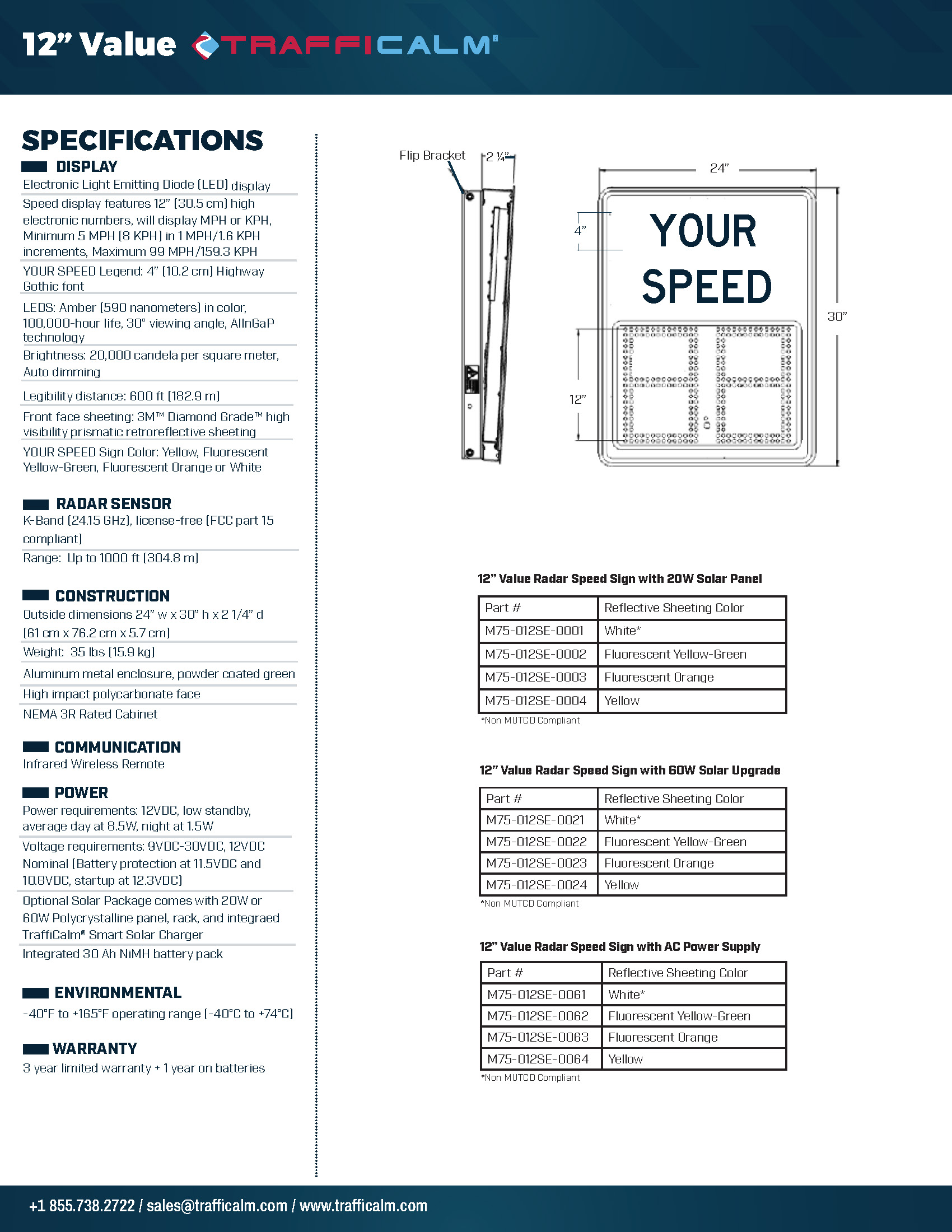

Specifications

Display
  • 12″ (30.5 cm) high electronic numbers
  • Displays from 5 mph (8 kph) in 1 mph/1.6 kph increments, up to 99 mph (159.3 kph)
  • “YOUR SPEED” legend uses 4″ (10.2 cm) Highway Gothic font
  • Amber LEDs (590 nm), rated 100,000 hours, 15° viewing angle
  • Brightness up to 20,000 cd/m² with automatic dimming
  • Legibility distance: up to 600 ft (182.9 m)
  • Front face uses high-visibility prismatic retroreflective sheeting
Radar Sensor
  • K-Band (24.15 GHz), unlicensed (FCC part 15 compliant)
  • Range up to approximately 1000 ft (304.8 m)
Construction
  • Size: 24″ W × 30″ H × 2¼″ D (61 cm × 76.2 cm × 5.7 cm)
  • Weight: approximately 35 lb (15.9 kg)
  • Aluminum enclosure with powder-coated finish
  • High-impact polycarbonate face
  • Cabinet rated NEMA 3R
Communication
  • Infrared wireless remote control
Power
  • Nominal: 12 VDC
  • Low standby consumption: approx. 8.5 W day, 1.5 W night
  • Operating voltage range: 9–30 VDC
  • Battery protection disconnects: approx. 11.5 VDC & 10.8 VDC
  • Auto-startup at approx. 12.3 VDC
Environmental
  • Operating temperature range: -29 °F to +165 °F (-34 °C to +74 °C)
Warranty
  • 3-year limited warranty on sign electronics
  • 1-year warranty on batteries (if applicable)

Why Choose This Model?

  • Built for permanent installations with AC power available
  • Larger 12″ display offers higher visibility from longer range
  • Same high-visibility LED performance as solar models, with simpler power requirements
  • Durable construction with quick-disconnect mounting for ease of service
