9″ Radar Speed Value Sign – AC Power Supply

Part Number: M75-009SE-006x

MUTCD Sign Rings: If your controller is running firmware 401N or >, adjust brightness from 100% to 60%. Failure to do so will result in higher power draw and solar systems may fail.

Is my ring MUTCD?
There is a -M at the end of the model number for MUTCD compliant rings

Summary

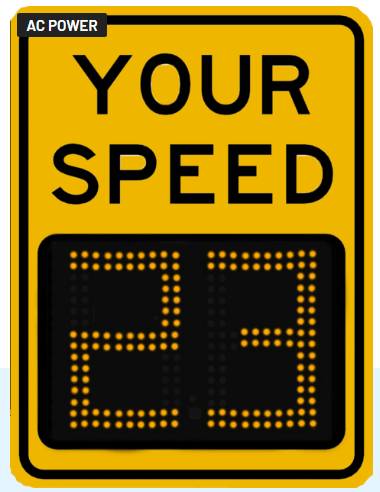

The Value Series features bright 12″ LED characters that are legible from up to 600 feet away. Designed for permanent installations with dedicated AC power, this model provides a cost-effective, high-visibility solution to improve driver awareness and reduce speeding in residential streets and traffic corridors.

Product Options

• M75-009SE-0061: 9″ Radar Speed Value Sign – White – AC Power Supply
• M75-009SE-0062: 9″ Radar Speed Value Sign – Fluorescent Yellow-Green – AC Power Supply
• M75-009SE-0063: 9″ Radar Speed Value Sign – Orange – AC Power Supply
• M75-009SE-0064: 9″ Radar Speed Value Sign – Yellow – AC Power Supply

Specifications

Display

• 12″ (30.5 cm) high digits
• Displays from 5 mph (8 kph) to 99 mph (159 kph) in 1 mph increments
• “YOUR SPEED” legend uses 4″ (10.2 cm) Highway Gothic font
• Amber LEDs (590 nm), 100,000-hour rated life
• Viewing angle approximately 15°–30° depending on model
• Automatic ambient dimming
• Legible up to 600 ft (182.9 m)
• Front face uses high-visibility, prismatic retroreflective sheeting

Radar Sensor

• K-Band (24.15 GHz)
• FCC Part 15 compliant
• Detection range up to approximately 1000 ft (305 m)

Construction

• Dimensions: approximately 24″ W × 30″ H × 2.25″ D
• Weight: approximately 35 lb (15.9 kg)
• Aluminum enclosure with powder-coated finish
• High-impact polycarbonate face
• Cabinet rated NEMA 3R
• Includes quick-disconnect pole/post mounting bracket

Communication

• Configured via handheld infrared remote

Power

• Nominal 12 VDC operation
• Typical standby consumption: ~8.5 W daytime, ~1.5 W nighttime
• Voltage operating range: 9–30 VDC
• Battery protection features:
  • Disconnect at approximately 11.5 V and 10.8 V
  • Automatic startup above 12.3 V
• Designed specifically for AC-powered installations (DC supply required)

Environmental

• Operating temperature: −29 °F to +165 °F (−34 °C to +74 °C)

Warranty

• 3-year limited warranty on electronics
• 1-year warranty on batteries (if included with specific kits)

Why Choose the Value Series – AC Powered?

• Ideal for permanent installations with available AC power
• Same high-visibility LED performance as solar models
• Simplified power requirements
• Cost-effective and easy to operate
• Rugged, long-lasting construction with quick-mount hardware
