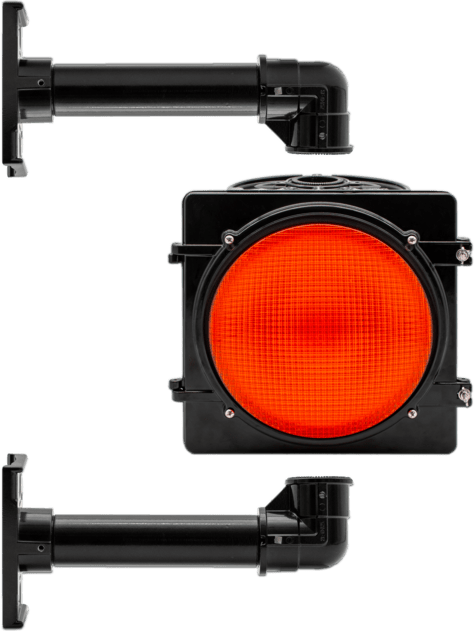

Universal Beacon – Poly Housing – Red

Part Number: M75-BCNSQ-SBP2

MUTCD Sign Rings: If your controller is running firmware 401N or >, adjust brightness from 100% to 60%. Failure to do so will result in higher power draw and solar systems may fail.

Is my ring MUTCD?
There is a -M at the end of the model number for MUTCD compliant rings

Summary

This beacon uses high-durability polycarbonate housing and red illumination for strong visual command signaling. The lightweight shatter-resistant housing ensures longevity and low maintenance.

Product Options

• M75-BCNSQ-SBP2: Black Poly Housing, 12" Red Ball

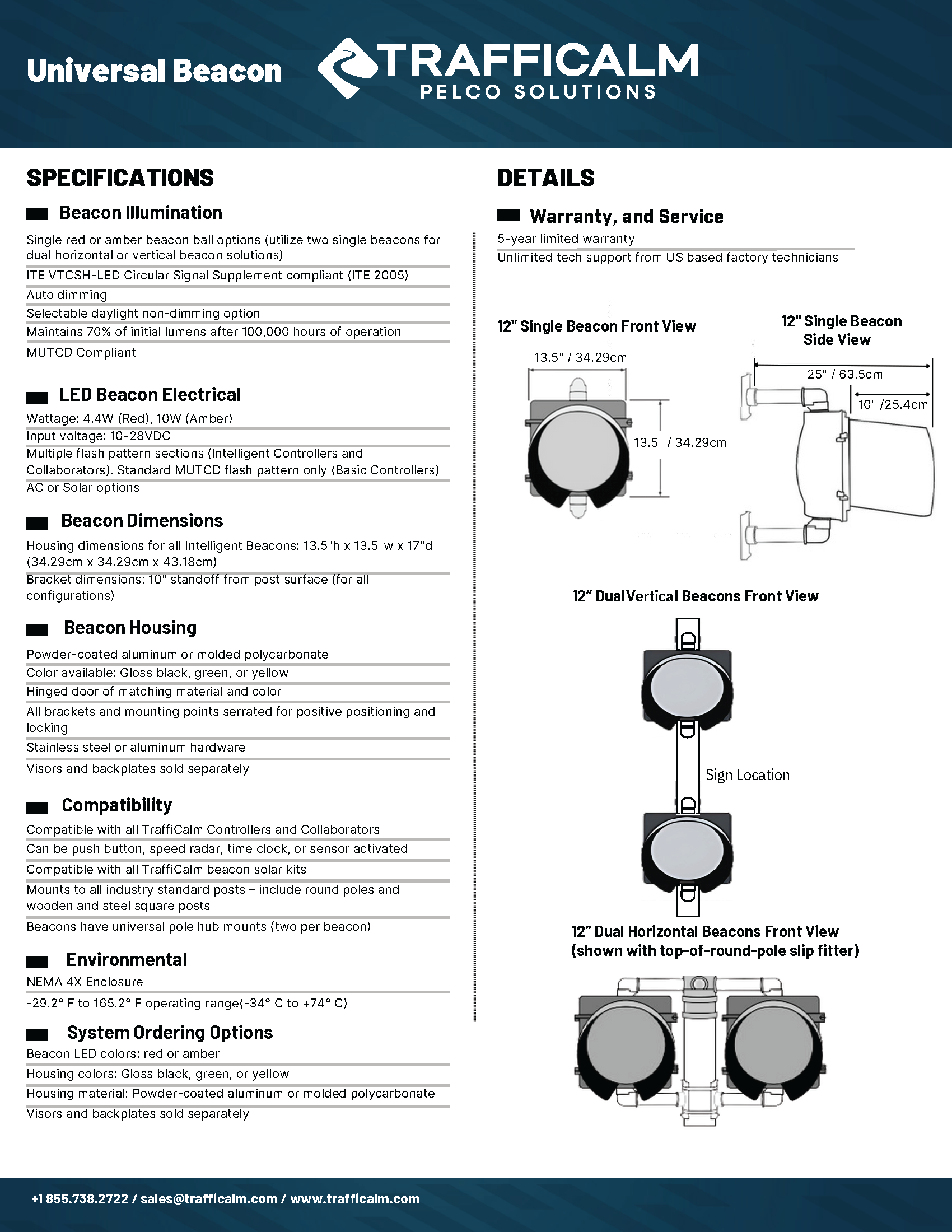

Specifications

Illumination

• 12" red circular LED beacon
• Auto-dimming
• High-output LED array
• 100,000-hour LED life
• MUTCD compliant

Electrical

• Operating voltage: 10–28 VDC
• Power draw: 4.4W

Housing

• Molded polycarbonate enclosure
• UV-proof and corrosion-resistant
• Does not include visor
• Does not include back plate

Mounting and Size

• Universal pole mount bracket
• 10" standoff
• Approx. 13.5" × 13.5" × 17"

Compatibility

• Works with all TraffiCalm systems
• Solar or AC operation

Environmental

• IP-rated moisture protection
• Operating range: −29.2°F to +165.2°F (−34°C to +74°C)

Warranty

• 5-year limited warranty
• Unlimited support

Why Choose Poly – Red?

• Lightweight corrosion-proof housing
• Intense high-urgency red illumination
• Suited for STOP and access-restriction warnings
• U.S.-manufactured
• Build America / Buy America compliant
