Post Top Beacon – Aluminum Housing – Amber
Rugged 12" amber LED pole beacon: industrial-grade warning signal for harsh environments w/ NEMA 4X
Updated
by Dylan Solberg
Part Numbers: M75-BCNPT-SBA1, M75-BCNPT-SYA1
M75-BCNPT-SBA1
M75-BCNPT-SYA1
Summary
This Post Top Beacon configuration uses a rugged aluminum enclosure to house a high-visibility 12" amber LED beacon. Designed for mounting directly on top of standard round poles, this beacon is ideal for warning, caution, and general alert illumination in high-visibility applications.
Product Options

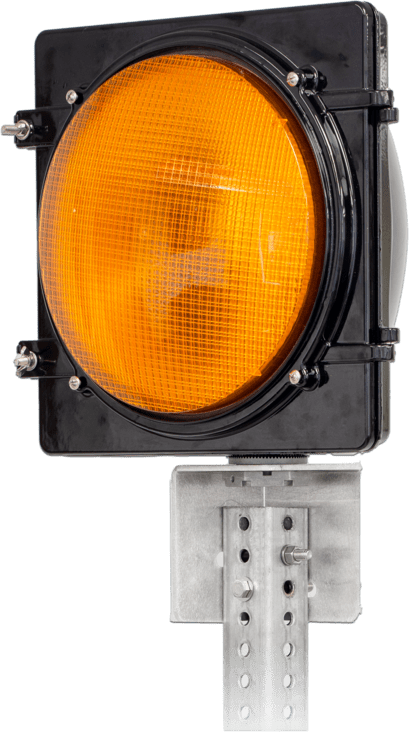

- M75-BCNPT-SBA1: Black Aluminum Housing, 12" Amber Ball

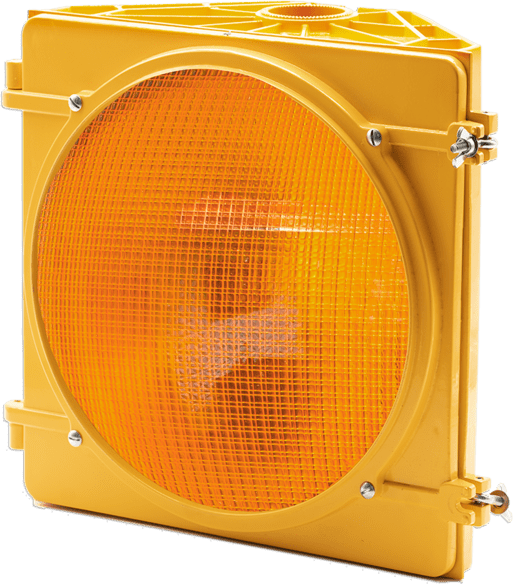

- M75-BCNPT-SYA1: Yellow Aluminum Housing, 12" Amber Ball

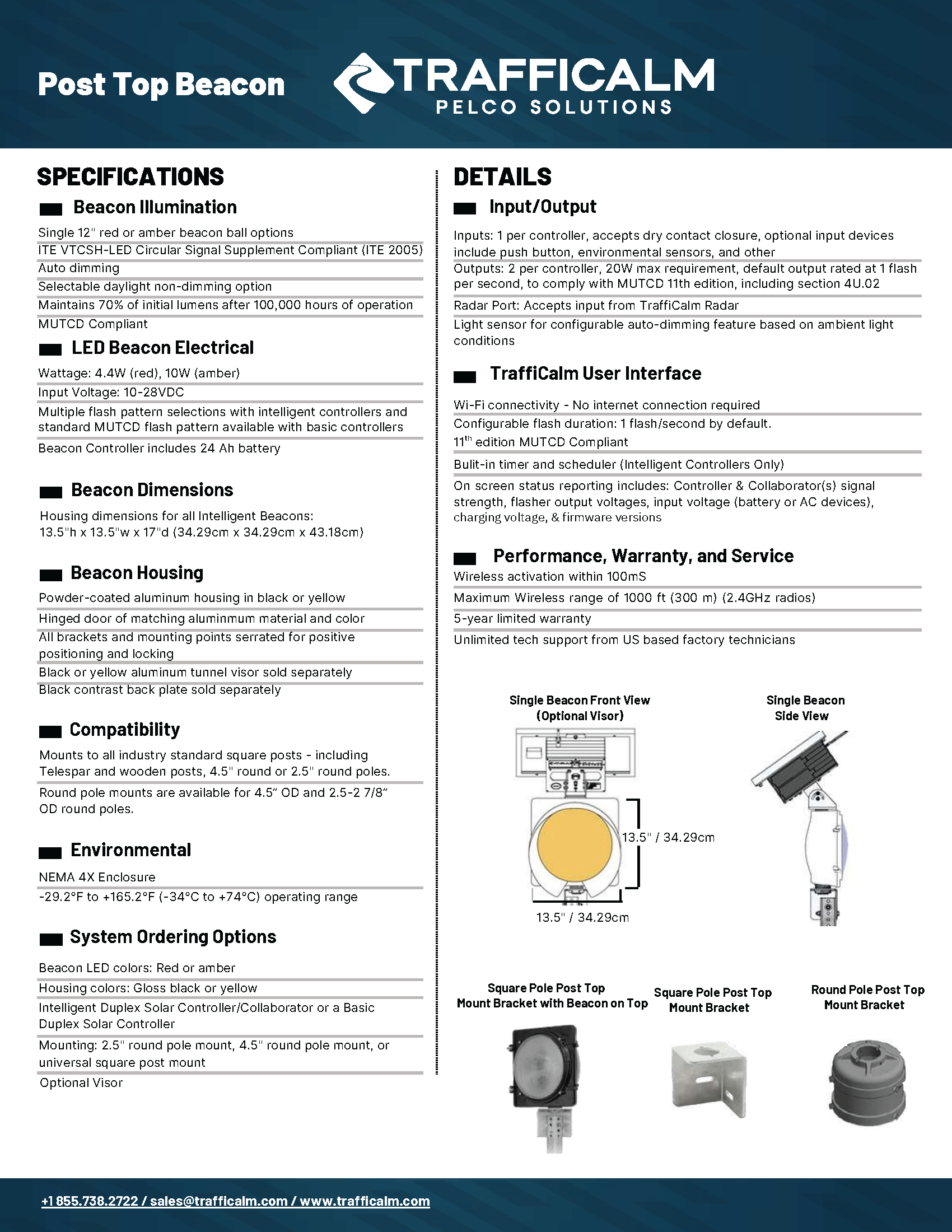

Specifications
LED Illumination
- 12" amber LED beacon
- Auto-dimming
- Long-life LED array
- MUTCD compliant
- ITE VTCSH compliant
Electrical
- Powered by 10–28 VDC
- Power draw: 10W
Housing
- Aluminum housing
- Powder-coated finish
- Stainless hardware
- Does not include visor
- Does not include back plate
Mounting
- Fits standard pole top mounting
- Designed for post-top vertical installation
- Fixed mount base
Environmental
- NEMA 4X weather protection
- Operating temperature: −29.2°F to +165.2°F (−34°C to +74°C)
Warranty
- 5-year limited warranty
- Unlimited technical support
Why Choose Post Top Aluminum – Amber?
- Rugged aluminum enclosure
- High-visibility amber indication
- Industrial-grade LED signal
- Excellent weather resistance
- Build America / Buy America compliant
- Made in ISO-certified U.S. facility
