Universal Beacon – Aluminum Housing – Red

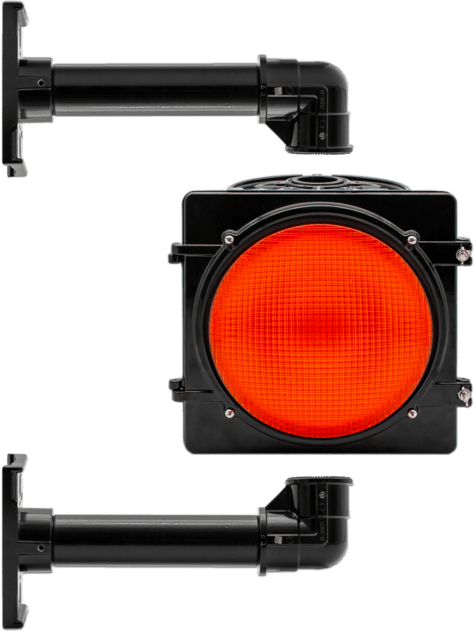

12" red LED traffic beacon: Rugged aluminum housing, universal mount, high-intensity signaling for critical areas
Updated
by Dylan Solberg
Part Number: M75-BCNSQ-SBA2
Summary
This model features durable aluminum housing and a 12" red LED beacon for high-urgency traffic signaling. The bold red indication is ideal for STOP, DO NOT ENTER, WRONG WAY, and restricted-area notifications.
Product Options
- M75-BCNSQ-SBA2: Black Aluminum Housing, 12" Red Ball
Specifications
Illumination
- 12" red circular LED beacon
- Auto-dimming
- High-intensity LED perimeter
- 100,000-hour LED lifespan
- Meets ITE VTCSH standards
- MUTCD compliant
Electrical
- Operating voltage: 10–28 VDC
- Power draw: 4.4W
Housing
- Powder-coated black aluminum
- Heavy-duty access panel
- Rust-resistant hardware
- Does not include visor
- Does not include back plate
Mounting and Size
- Universal pole mount bracket
- 10" bracket standoff
- Housing dimensions: approx. 13.5" × 13.5" × 17"
Compatibility
- Fully compatible with TraffiCalm controllers and collaborators
- Supports AC and solar configurations
Environmental
- NEMA 4X housing
- Operating range: −29.2°F to +165.2°F (−34°C to +74°C)
Warranty
- 5-year limited warranty
- Unlimited U.S.-based technical support
Why Choose Aluminum – Red?
- Red beacon provides strong visual urgency
- Durable aluminum enclosure
- Reliable operation in all weather conditions
- Made in ISO-certified U.S. facility
- Build America / Buy America compliant
