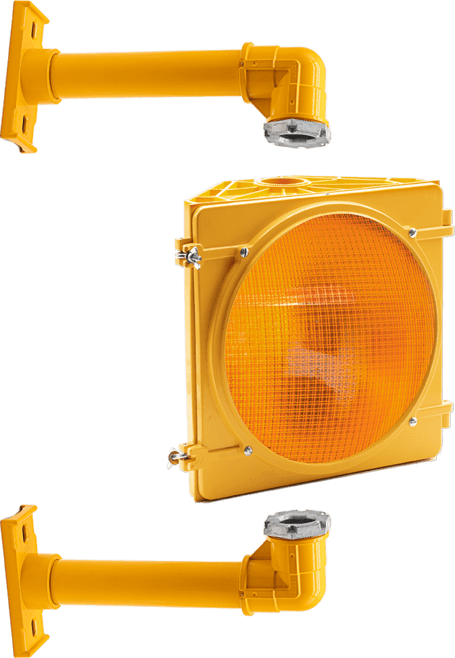

Universal Beacon – Aluminum Housing – Amber
Aluminum universal beacon with 12" amber LED: high-visibility warning for traffic safety, extreme durability
Updated
by Dylan Solberg
Part Numbers: M75-BCNSQ-SBA1, M75-BCNSQ-SYA1


M75-BCNSQ-SBA1

M75-BCNSQ-SYA1

Summary
This variant uses aluminum housing and amber illumination for high-visibility warning applications. Featuring a 12" amber LED beacon with robust metal housing, this unit sets the standard for durability and reliability in outdoor traffic safety environments.
Product Options
- M75-BCNSQ-SBA1: Black Aluminum Housing, 12" Amber Ball
- M75-BCNSQ-SYA1: Yellow Aluminum Housing, 12" Amber Ball
Specifications
Illumination
- 12" amber circular LED beacon
- Auto-dimming
- Internal optical diffusing
- 100,000-hour LED life
- Meets ITE VTCSH requirements
- MUTCD compliant
Electrical
- Operating voltage: 10–28 VDC
- Power draw: 10W
Housing
- Powder-coated aluminum housing
- Hinged front access door
- Corrosion-resistant fasteners
- Does not include visor
- Does not include back plate
Mounting and Size
- Universal pole mount bracket
- 10" standoff
- Approximate housing dimensions: 13.5" × 13.5" × 17"
Compatibility
- Works with all TraffiCalm LED signage systems
- Compatible with solar and AC power installations
- Integrates with controllers, push buttons, sensors, and radar triggers
Environmental
- NEMA 4X enclosure
- Operating range: −29.2°F to +165.2°F (−34°C to +74°C)
Warranty
- 5-year limited warranty
- Unlimited technical support available from U.S.-based technicians
Why Choose Aluminum – Amber?
- High-visibility amber illumination for general warning
- Strong corrosion-resistant housing
- Ideal for pedestrian crossings and cautionary alerts
- Designed and manufactured in an ISO-certified U.S. facility
- Build America / Buy America compliant
