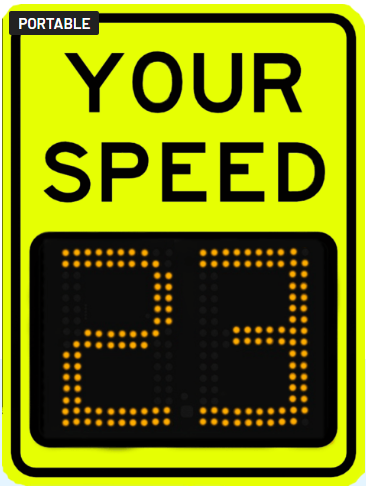

9″ Value Portable Radar Speed Sign – 20Ah Battery

Part Number: M75-009SE-PK0x

Summary

The Value Portable Series provides the same bright 9-inch LED display as the permanent Value signs but in a fully mobile, self-contained system. The unit includes an integrated 20Ah battery and AC charger, making it ideal for temporary traffic calming, rotating deployments, speed enforcement, and event use. The display is legible up to 450 feet and designed for quick, tool-free installation.

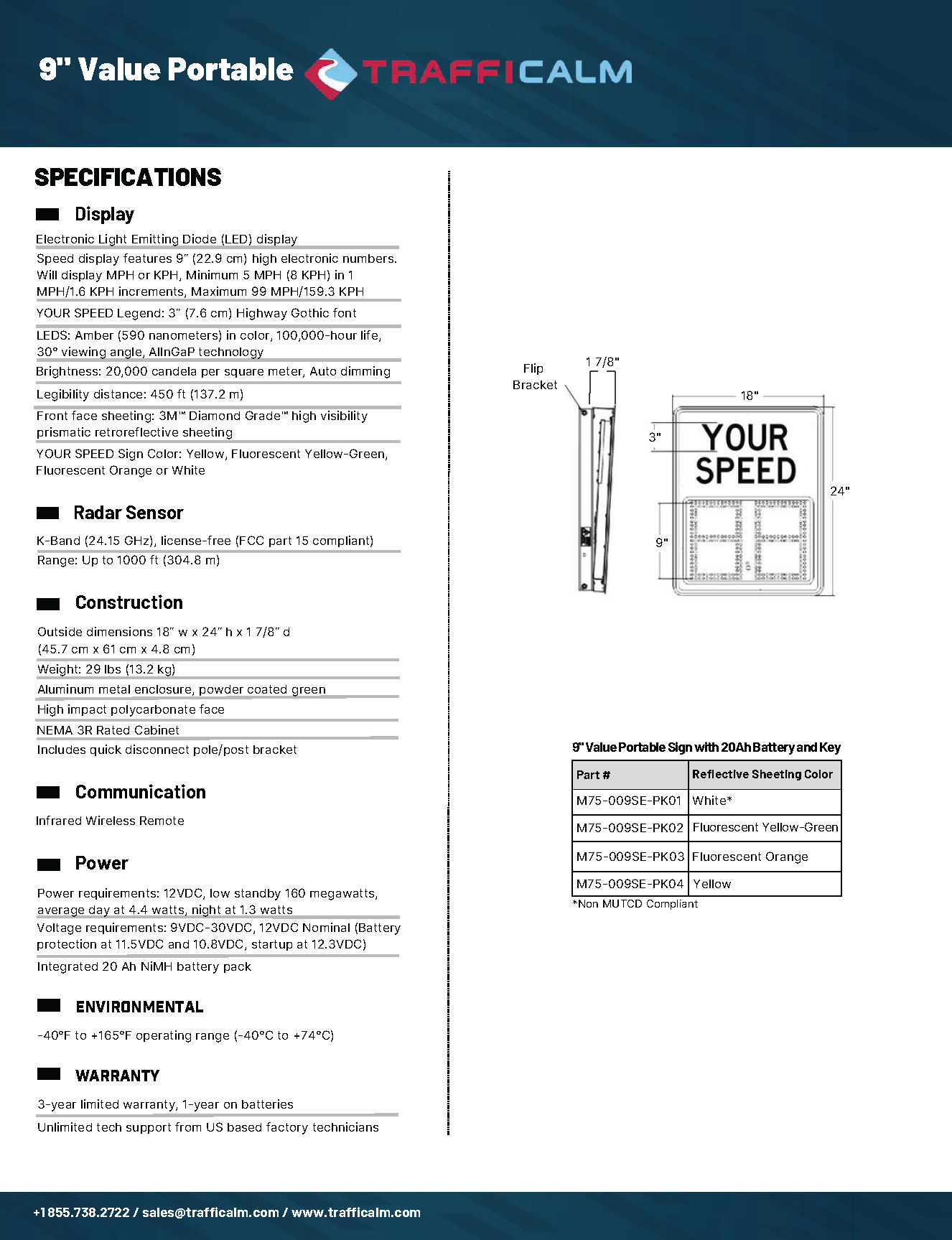

Specifications

Display

• 9-inch (22.9 cm) high LED digits
• Displays speeds from 5 mph (8 kph) to 99 mph (159 kph)
• 1 mph / 1.6 kph increments
• “YOUR SPEED” legend uses 3-inch Highway Gothic font
• Amber LEDs, 100,000-hour life
• 30-degree viewing angle
• Automatically dims based on ambient light
• Legible up to 450 feet
• High-visibility prismatic reflective face panel

Radar Sensor

• K-Band, 24.15 GHz
• FCC Part 15 compliant
• Detection range up to 1000 feet

Construction

• Dimensions: 18 in W × 24 in H × 1 7/8 in D
• Weight: approximately 29 lb
• Aluminum enclosure with powder-coated finish
• High-impact polycarbonate face
• NEMA 3R rated cabinet
• Includes quick-disconnect pole or post mounting bracket

Power

• Integrated 20Ah NiMH battery pack
• 12 VDC nominal operation
• Very low power consumption (approximately 8.5 W during day, 1.5 W at night)
• Operating voltage range: 9 to 30 VDC
• Battery protection disconnects around 11.5 V and 10.8 V
• Automatically starts up above 12.3 V
• Includes AC charger for recharging the internal battery

Environmental

• Operating temperature range: –29 °F to +165 °F (–34 °C to +74 °C)

Warranty

• 3-year limited warranty on sign electronics
• 1-year warranty on the battery pack

Why Choose the Value Portable?

• Completely self-contained portable radar speed sign
• Fast and tool-free setup
• Ideal for temporary zones, rotating locations, and enforcement
• High visibility LED display improves driver awareness
• Lightweight and easy to transport
