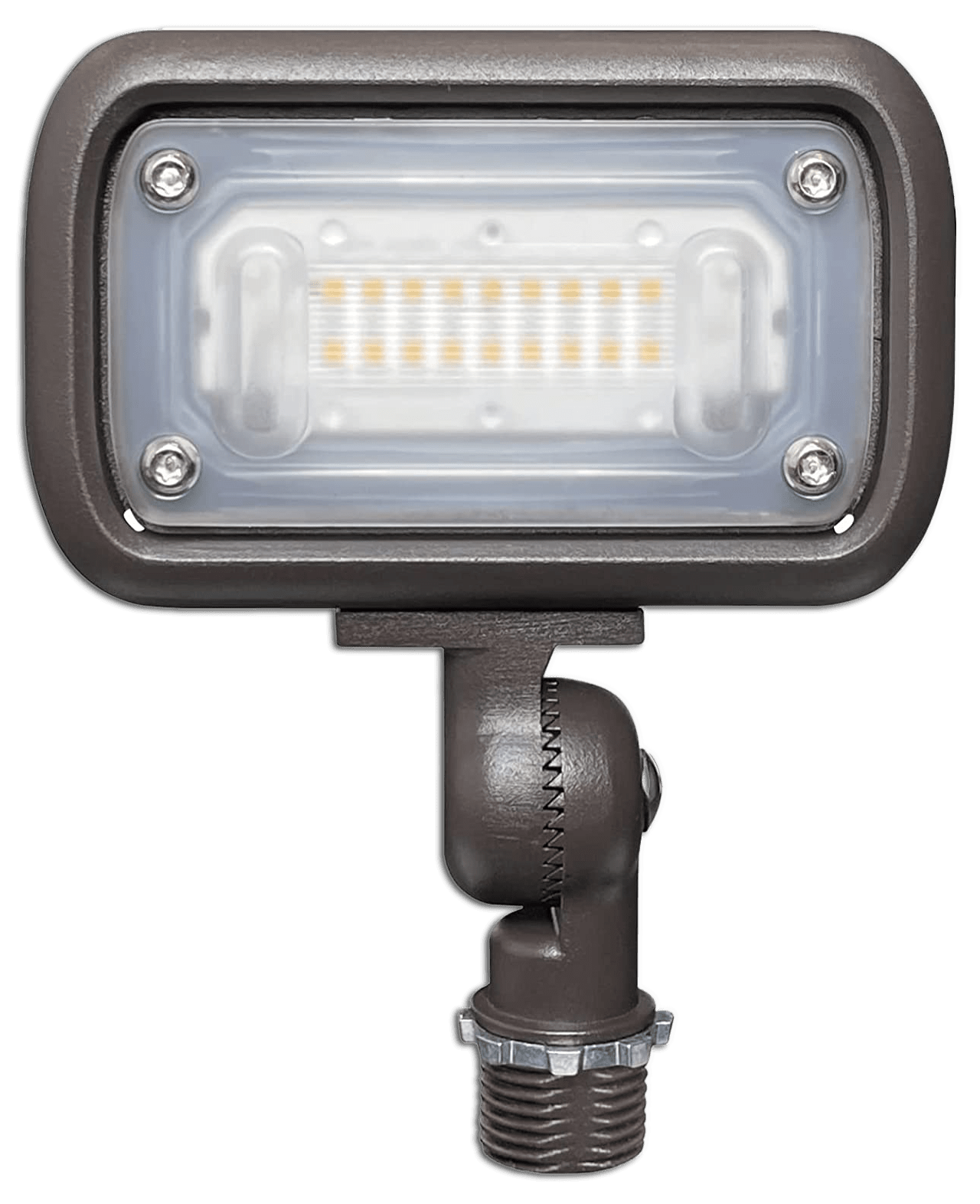

Crosswalk Illuminator

Part Number: M75-SA314-0000

Summary

The Crosswalk Illuminator enhances pedestrian visibility during nighttime crossings by projecting focused lighting onto the crosswalk area. Activated simultaneously with RRFBs or flashing pedestrian signs, the illuminator provides steady illumination for the full duration of the activation cycle, increasing visibility and safety at mid-block and uncontrolled crossings.

Product Options

Product is available under a single part number: M75-SA314-0000.

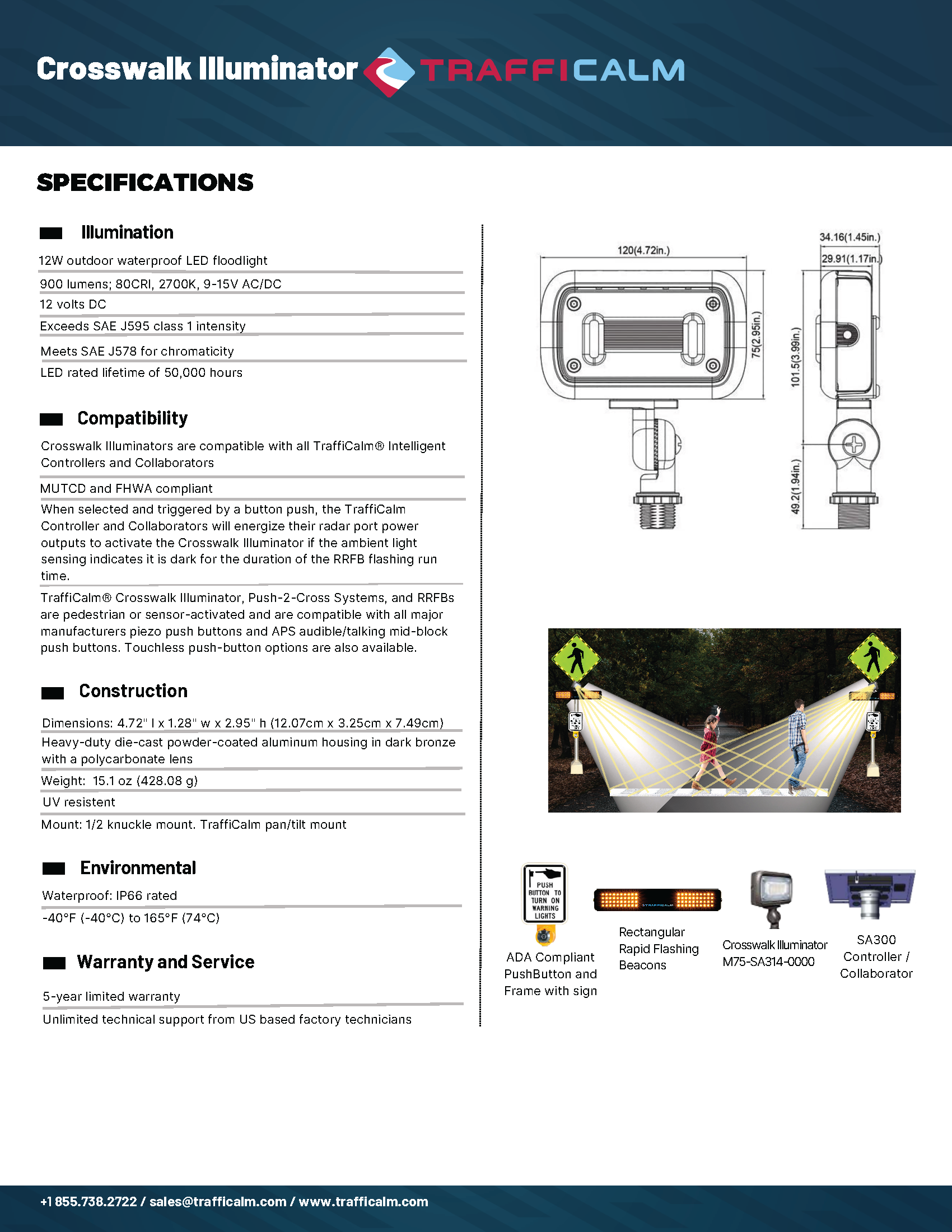

Specifications

Illumination

• 12W outdoor waterproof LED floodlight
• Output: 900 lumens
• Color rendering: 80CRI
• Color temperature: 2700K
• Rated lifetime: 50,000 hours
• Meets SAE J578 chromaticity
• Exceeds SAE J595 class 1 intensity
• 12V DC operation

Compatibility

• Works with all TraffiCalm Intelligent Controllers and Collaborators
• Activates during RRFB or pedestrian sign flash cycle
• Automatically adjusts based on ambient light using in-system light sensing
• Compatible with standard and APS/talking pedestrian push buttons
• Compatible with touchless push-button options

Construction

• Dimensions: 4.72" × 1.28" × 2.95" (12.07 cm × 3.25 cm × 7.49 cm)
• Heavy-duty die-cast powder-coated aluminum housing
• Polycarbonate lens
• UV-resistant
• Weight: 15.1 oz (428.08 g)

Mounting

• 1/2" knuckle mount
• TraffiCalm pan/tilt aiming bracket

Environmental

• Waterproof rating: IP66
• Operating temperature: −40°F (−40°C) to +165°F (74°C)

Warranty

• 5-year limited warranty
• Unlimited technical support from U.S.-based factory technicians

Why Choose the Crosswalk Illuminator?

• Provides improved nighttime pedestrian visibility
• Meets FHWA and MUTCD crosswalk illumination requirements
• Highly durable for outdoor deployment
• Plug-and-play integration into Push-2-Cross systems
• Supports compliance with ADA accessibility standards
• Designed and manufactured in the USA
• Build America / Buy America compliant
