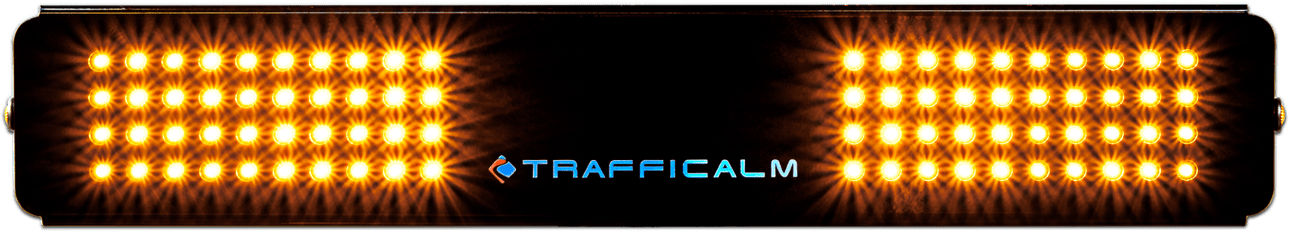

TraffiCalm RRFB — Amber Pedestrian Crossing Application

Part Numbers: M75-SA328-0000 / M75-SA328-0004 / M75-SA328-7500

Summary

TraffiCalm Amber RRFB units are used for pedestrian mid-block and crosswalk applications. These beacons deliver high-intensity pulsed amber light to alert drivers of pedestrian presence, significantly improving driver yielding compliance. Designed for Push-2-Cross activation and compliant with MUTCD Section 4L standards.

Product Options

• M75-SA328-0000 — 15ft cable, Black Alum. Housing
• M75-SA328-0004 — 15ft cable, Yellow Alum. Housing
• M75-SA328-7500 — 75ft cable, Black Alum. Housing

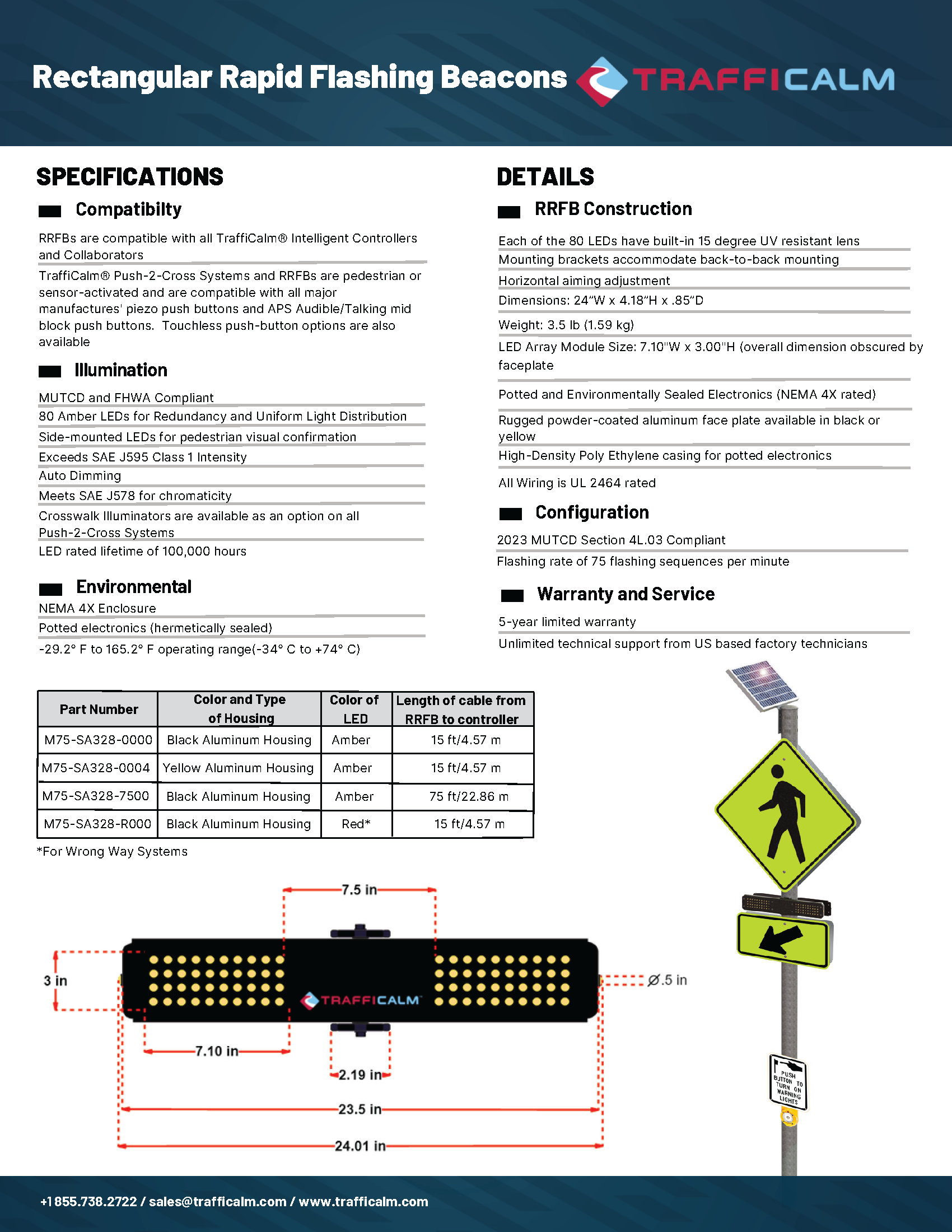

Specifications

Optical Output

• High-visibility amber LED indication
• MUTCD compliant irregular flash pattern
• Wide optical dispersion for multi-lane visibility
• Wig-wag plus simultaneous" (WW+S)

Activation Methods

• Push-2-Cross pedestrian-activated input
• Optional sensor detection inputs
• Compatible with all standard TraffiCalm controllers
  • CTLE E-Series
  • CTLS S-Series
  • CTLT T-Series
  • CTLW W-Series
  • CTLZ Slimline systems

Electrical / Power

• Operates from 12VDC bus supplied by controller
• Consumption ≤ 12W max

Installation

• Mounts directly to signpost or mast-arm
• Adjustable aiming bracket
• Available with integrated confirmation light

Housing

• Aluminum body
• Weather-sealed cable ingress
• Available in: yellow or black finish

Environmental Rating

• Designed for long-term exterior roadway use
• Operating range: −29.2°F to +165.2°F

Warranty & Support

• 5-year product warranty
• Unlimited US-based technical support

Ordering

• M75-SA328-0000
• M75-SA328-0004
• M75-SA328-7500
