150 Watt Solar Panel Kit – Side of Pole Mount

High-capacity 150W solar panel kit: Rugged, USA-made design for powerful off-grid TraffiCalm systems.

Dylan Solberg
Updated by Dylan Solberg

Part Number: M75-SLRPN-150W

TraffiCalm Pelco Solutions

For use with CTL/CLB controller & collaborators ONLY

Side of Pole mounting (Universal)

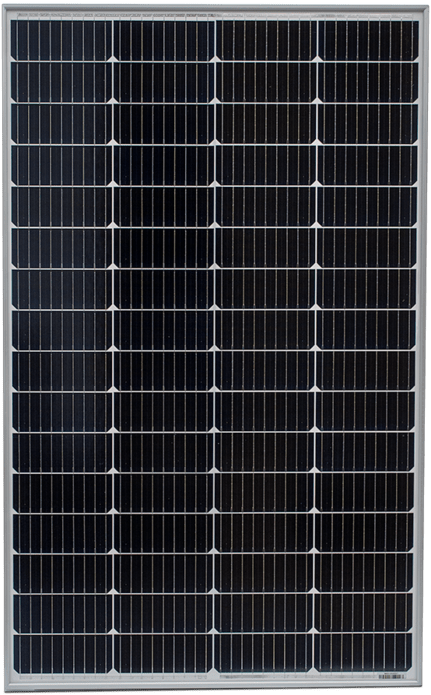

150 Watt Solar Panel Kit

150 Watt Solar Panel Kit
Summary

The 150 Watt Solar Panel Kit provides the highest solar collection capacity in the SLRPN side-of-pole series. Engineered for powering high-duty TraffiCalm systems with extended operational demands, this kit includes a high-efficiency monocrystalline solar panel, reinforced mounting hardware, and outdoor-rated cabling to ensure reliable long-term off-grid performance.

Product Options

Product is available under a single part number: M75-SLRPN-150W. Configuration is specified at time of order.

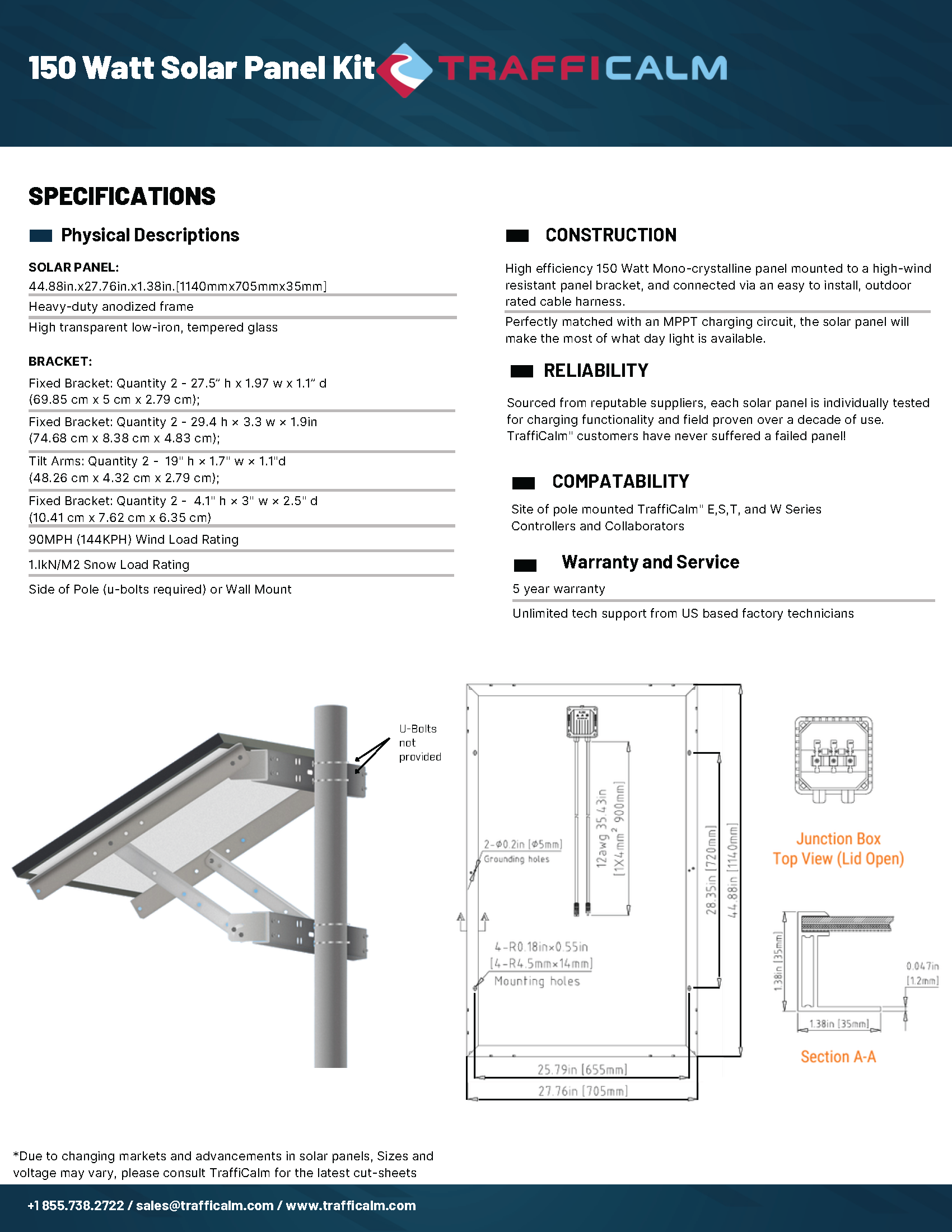

Specifications
Physical Descriptions
  • Solar panel dimensions: 44.88" x 27.76" x 1.38" (1140 mm x 705 mm x 35 mm)
  • Heavy-duty anodized frame
  • High-transparency low-iron tempered glass
Construction
  • 150W monocrystalline panel
  • Mounted to a high-wind-resistant bracket
  • Connected via outdoor-rated cable harness
  • Optimized for use with MPPT charging systems
Bracket
  • Fixed Bracket: Quantity 2 – 27.5" h x 1.97" w x 1.1" d (69.85 cm x 5 cm x 2.79 cm)
  • Fixed Bracket: Quantity 2 – 29.4" h x 3.3" w x 1.9" d (74.68 cm x 8.38 cm x 4.83 cm)
  • Fixed Bracket: Quantity 2 – 4.1" h x 3" w x 2.5" d (10.41 cm x 7.62 cm x 6.35 cm)
  • Tilt Arms: Quantity 2 – 19" h x 1.7" w x 1.1" d (48.26 cm x 4.32 cm x 2.79 cm)
  • Wind load rating: 90 mph (144 kph)
  • Snow load rating: 1.1 kN/m²
  • Side-of-pole or wall-mount installation
  • U-bolts required for pole mounting
Compatibility
  • Side-of-pole mounted TraffiCalm E, S, T, and W Series controllers and collaborators
Reliability
  • Each solar panel individually tested for charging functionality
  • Field proven in more than a decade of deployments
  • No known panel failures reported by TraffiCalm users
Environmental
  • Operating temperature range: −40°F to +185°F (−40°C to +85°C)
Warranty
  • 5-year warranty
  • Unlimited technical support from U.S.-based factory technicians
Why Choose the 150 Watt Side-of-Pole Solar Kit?
  • Maximum power capacity for heavy-load systems
  • Reliable power for extended or continuous operation
  • Rugged construction with corrosion-resistant components
  • Manufactured in the USA at an ISO-certified facility
  • Build America / Buy America compliant
  • Standardized connectors across TraffiCalm products
