Post Top Solar Panel Kit: 100 Watt
100W monocrystalline solar kit delivers reliable off-grid power for traffic systems with zero infrastructure
Updated
by Dylan Solberg
Part Number: M75-SPTOP-100W
For use with CTL/CLB controller & collaborators ONLY

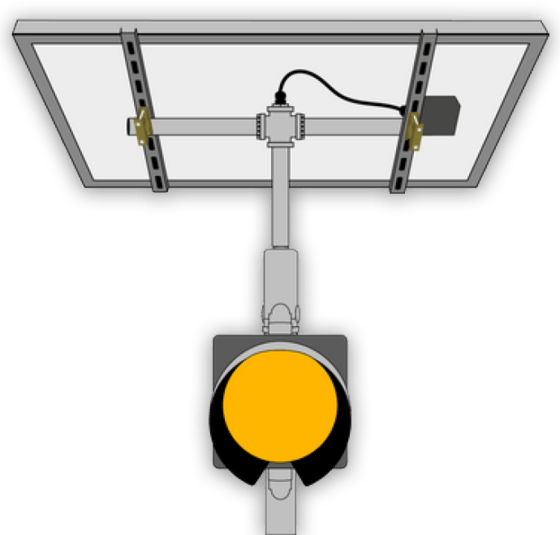

Top of pole mounting for 4.5" Poles
Summary
The Post Top 100W Solar Kit provides high-capacity solar power for TraffiCalm Intelligent Beacon systems, suitable for locations with limited sunlight, higher-power configurations, or multiple connected devices. Built with monocrystalline solar technology, rugged hardware, and sealed electronics, this kit delivers dependable off-grid operation year-round with no trenching or AC line installations required.
Product Options
Product is available under a single part number: M75-SPTOP-100W. Configuration is specified at time of order.

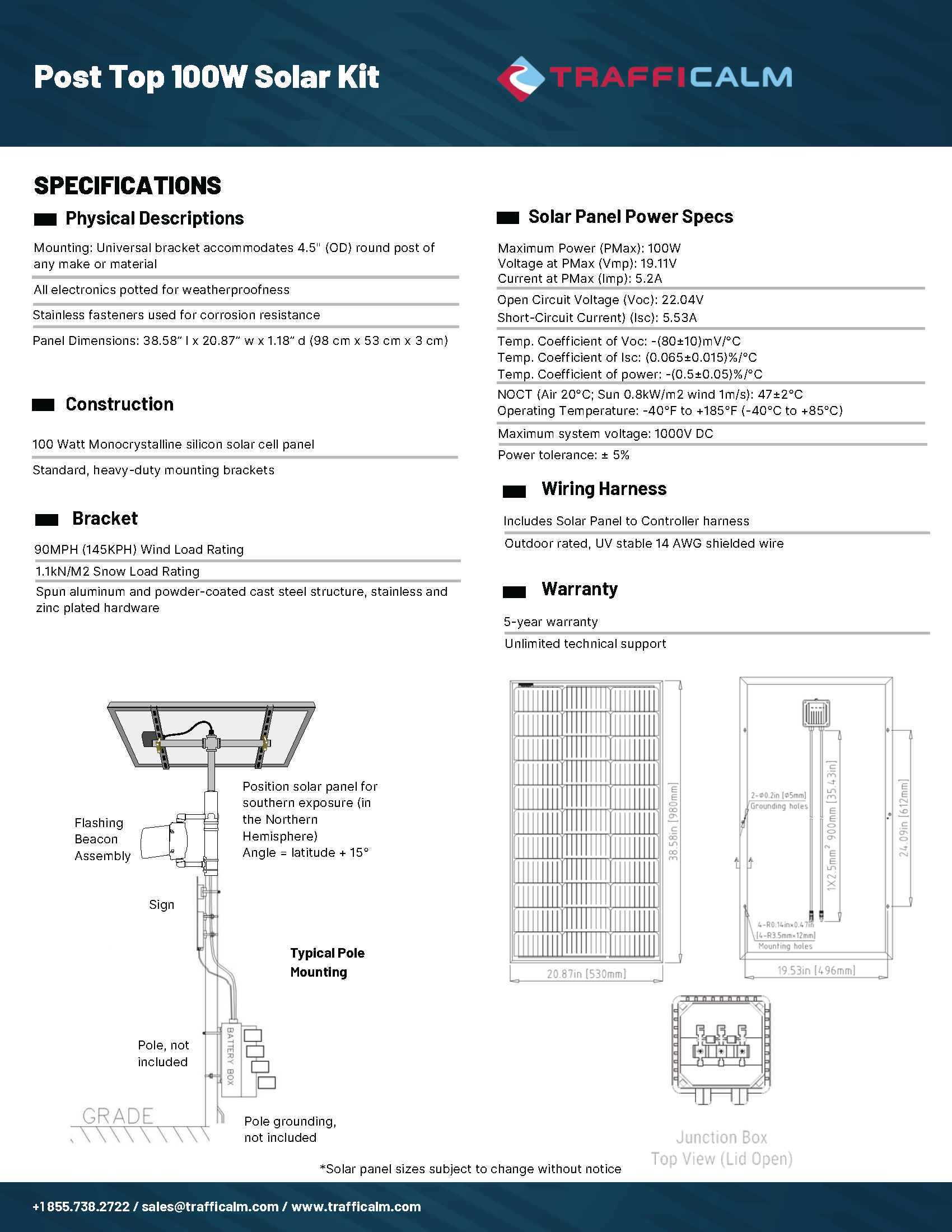

Specifications
Physical Descriptions
- Universal bracket accommodates 4.5" O.D. round posts
- All electronics potted for weatherproofing
- Stainless fasteners for corrosion resistance
- Solar panel dimensions: 38.58" x 20.87" x 1.18" (98 cm x 53 cm x 3 cm)
Construction
- 100W monocrystalline silicon solar cells
- Standard heavy-duty mounting brackets
- Spun aluminum and powder-coated cast steel structure
- Stainless and zinc-plated hardware
Bracket
- Wind load rating: 90 mph (145 kph)
- Snow load rating: 1.1 kN/m²
Solar Panel Power Specs
- Maximum Power (PMax): 100 W
- Voltage at PMax (Vmp): 19.11 V
- Current at PMax (Imp): 5.2 A
- Open Circuit Voltage (Voc): 22.04 V
- Short-Circuit Current (Isc): 5.53 A
- Maximum system voltage: 1000 V DC
- Power tolerance: ±5%
- Temperature coefficient of Voc: −(80±10) mV/°C
- Temperature coefficient of Isc: (0.065±0.015)%/°C
- Temperature coefficient of power: −(0.5±0.05)%/°C
- Normal operating cell temperature (NOCT): 47±2°C
- Operating temperature: −40°F to +185°F (−40°C to +85°C)
Wiring Harness
- Includes solar-panel-to-controller harness
- Outdoor-rated UV-stable 14 AWG shielded cabling
Mounting
- Designed for southern solar exposure
- Recommended panel angle: latitude + 15°
- Pole not included
- Pole grounding not included
Environmental
- Operating temperature: −40°F to +185°F (−40°C to +85°C)
- All electronics hermetically sealed and potted
Warranty
- 5-year limited warranty
- Unlimited technical support for life of unit
Why Choose the Post Top 100W Solar Kit?
- Highest solar power output in the post-top series
- Supports heavy-load or multi-device installations
- No trenching or AC power infrastructure required
- Reliable monocrystalline cell performance
- Built in the USA in ISO 9001:2015 facility
- Build America / Buy America compliant
