Post Top Solar Panel Kit: 150 Watt
150W solar kit: max power, autonomous operation, rugged design for intelligent beacons in any environment
Updated
by Dylan Solberg
Part Number: M75-SPTOP-150W
For use with CTL/CLB controller & collaborators ONLY

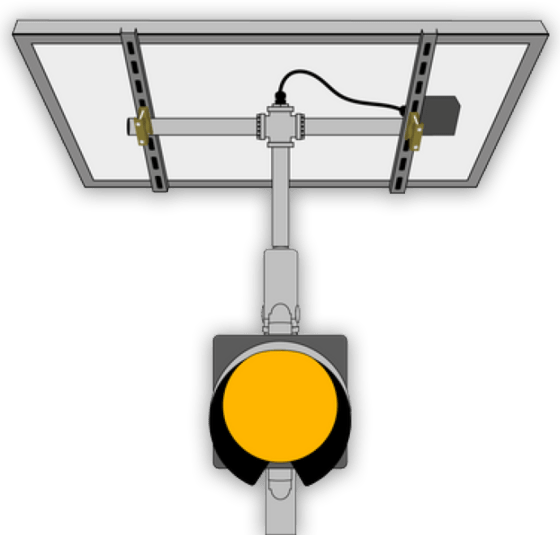

Top of pole mounting for 4.5" Poles
Summary
The Post Top 150W Solar Kit provides the highest solar power capacity available in the TraffiCalm post-top solar family. Built for high-duty Intelligent Beacon installations, low-sunlight environments, and extreme-power configurations, this kit enables year-round autonomous operation without trenching, AC service, or field-powered connections. Potted and sealed electronics ensure long-term reliability in harsh outdoor environments.
Product Options
Product is available under a single part number: M75-SPTOP-150W. Configuration is specified at time of order.

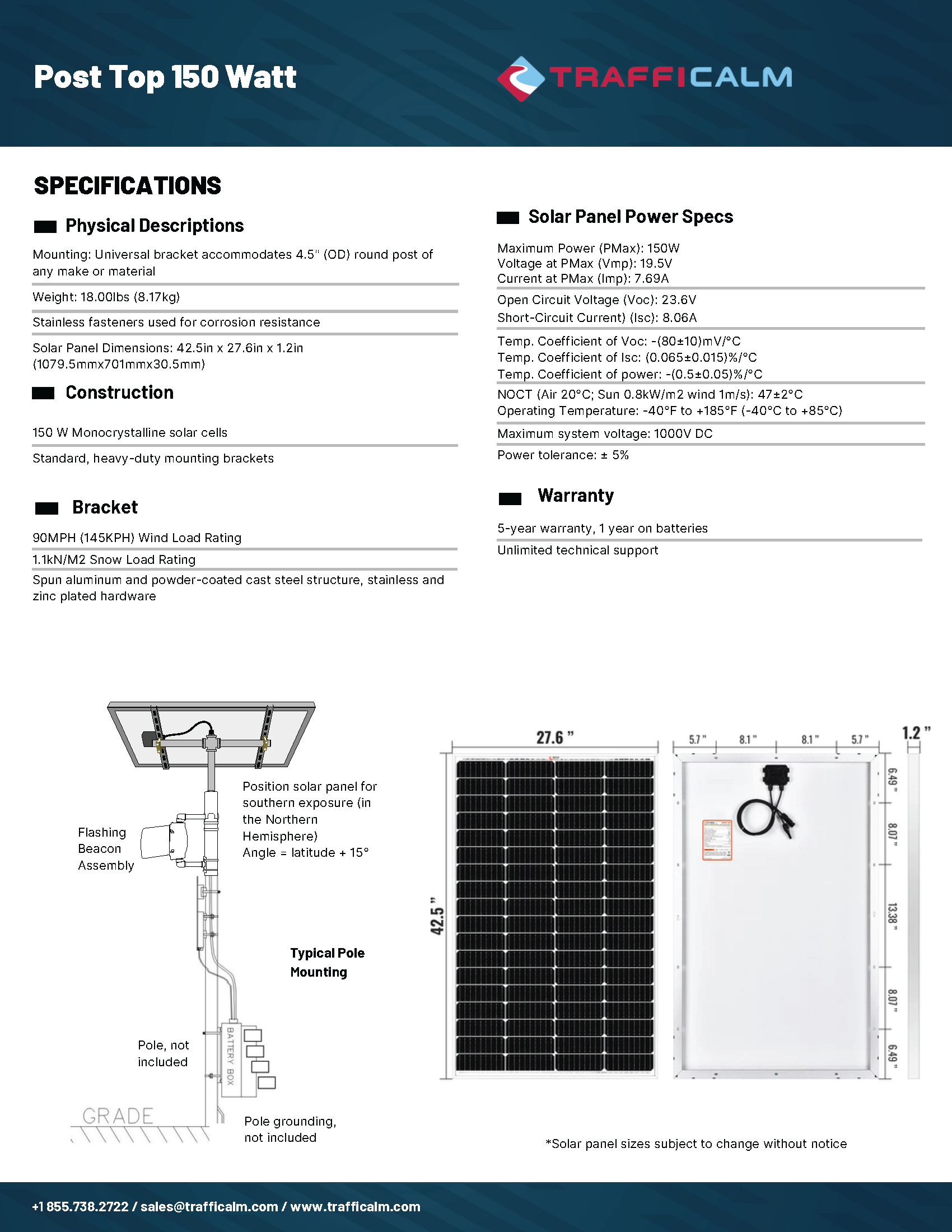

Specifications
Physical Descriptions
- Universal mounting bracket accommodates 4.5" O.D. round posts
- Weight: 18.00 lbs (8.17 kg)
- Stainless fasteners for corrosion resistance
- Solar panel dimensions: 42.5" x 27.6" x 1.2" (1079.5 mm x 701 mm x 30.5 mm)
Construction
- 150W monocrystalline solar cells
- Standard heavy-duty mounting brackets
- Spun aluminum and powder-coated cast steel structure
- Stainless and zinc-plated hardware
Bracket
- Wind load rating: 90 mph (145 kph)
- Snow load rating: 1.1 kN/m²
Solar Panel Power Specs
- Maximum Power (PMax): 150 W
- Voltage at PMax (Vmp): 19.5 V
- Current at PMax (Imp): 7.69 A
- Open Circuit Voltage (Voc): 23.6 V
- Short-Circuit Current (Isc): 8.06 A
- Maximum system voltage: 1000 V DC
- Power tolerance: ±5%
- Temperature coefficient of Voc: −(80±10) mV/°C
- Temperature coefficient of Isc: (0.065±0.015)%/°C
- Temperature coefficient of power: −(0.5±0.05)%/°C
- NOCT: 47±2°C
- Operating temperature: −40°F to +185°F (−40°C to +85°C)
Mounting
- Designed for southern solar exposure
- Panel alignment angle: latitude + 15°
- Pole not included
- Pole grounding not included
- Compatible with typical Intelligent Beacon pole mounting
Environmental
- Operating temperature: −40°F to +185°F (−40°C to +85°C)
- Electronics potted and weather-sealed
Warranty
- 5-year warranty
- 1-year warranty on batteries
- Unlimited technical support
Why Choose the Post Top 150W Solar Kit?
- Highest-capacity solar kit for maximum power output
- Supports smart beacons with continuous or heavy cycling usage
- No trenching or AC installation required
- Designed and manufactured in the USA
- Build America / Buy America compliant
- Installed with corrosion-resistant fasteners and sealed electronics
- Rugged design for harsh climate and winter operation
