100 Watt Solar Panel Kit – Side of Pole Mount

100W solar panel kit: high-efficiency monocrystalline cells, side-mount design for TraffiCalm systems, extreme temp range

Dylan Solberg
Updated by Dylan Solberg

Part Number: M75-SLRPN-100W

TraffiCalm Pelco Solutions

For use with CTL/CLB controller & collaborators ONLY

Side of Pole mounting (Universal)

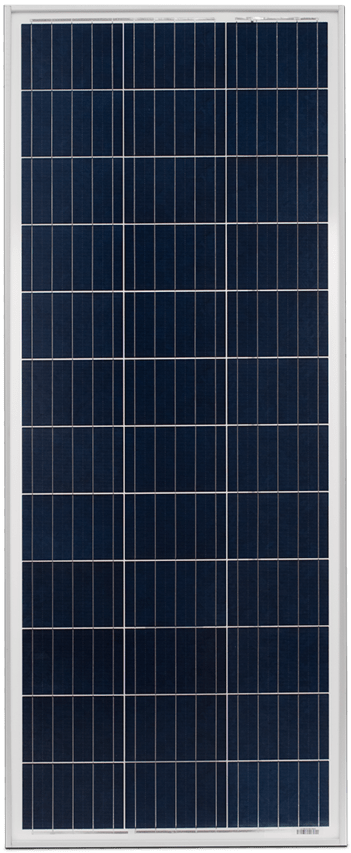

100 Watt Solar Panel Kit

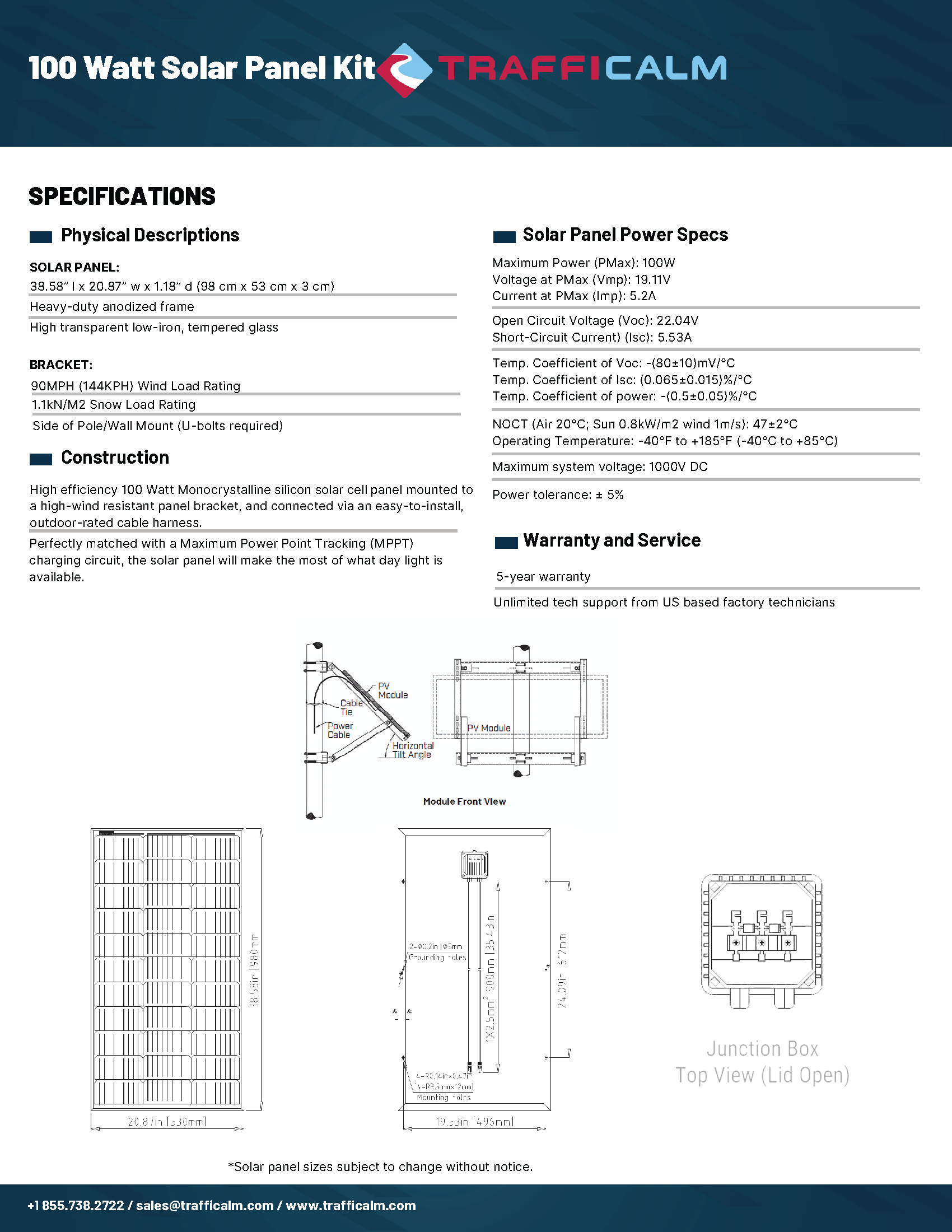

100 Watt Solar Panel Kit Data sheet
Summary

The 100 Watt Solar Panel Kit provides substantial solar power capacity for TraffiCalm Flashing Sign Systems. Designed for side-of-pole and wall mounting, this system allows for dependable off-grid performance using high-efficiency monocrystalline cells, weather-resistant components, and standardized hardware compatible across TraffiCalm platforms.

Product Options

Product is available under a single part number: M75-SLRPN-100W. Configuration is specified at time of order.

Specifications
Physical Descriptions
  • Solar panel dimensions: 38.58" x 20.87" x 1.18" (98 cm x 53 cm x 3 cm)
  • Heavy-duty anodized aluminum frame
  • High-transparent low-iron tempered glass
Construction
  • 100W monocrystalline solar cells
  • Matched for optimal performance with MPPT charging circuitry
  • Connected via outdoor-rated cable harness
Bracket
  • Wind load rating: 90 mph (144 kph)
  • Snow load rating: 1.1 kN/m²
  • Supports side-of-pole or wall-mount installation
  • U-bolts required for pole attachment
Solar Panel Power Specs
  • Maximum power (PMax): 100 W
  • Voltage at PMax (Vmp): 19.11 V
  • Current at PMax (Imp): 5.2 A
  • Open circuit voltage (Voc): 22.04 V
  • Short-circuit current (Isc): 5.53 A
  • Temperature coefficient of Voc: −(80 ± 10) mV/°C
  • Temperature coefficient of Isc: (0.065 ± 0.015)%/°C
  • Temperature coefficient of power: −(0.5 ± 0.05)%/°C
  • NOCT: 47 ± 2°C
  • Operating temperature: −40°F to +185°F (−40°C to +85°C)
  • Maximum system voltage: 1000 V DC
  • Power tolerance: ±5%
Compatibility
  • Fully compatible with TraffiCalm Flashing Sign Systems hardware and power architecture
Environmental
  • Operating temperature range: −40°F to +185°F (−40°C to +85°C)
Warranty
  • 5-year warranty
  • Unlimited technical support from U.S.-based technicians
Why Choose the 100 Watt Solar Kit – Side of Pole?
  • Largest output in the side-mount family
  • Supports extended runtime and higher energy load
  • Easy installation with standard hardware
  • Durable and corrosion-resistant panel and frame
  • Designed and manufactured in the USA
  • Build America / Buy America compliant
  • Consistent fastener and connector compatibility across TraffiCalm systems
