Post Top Solar Panel Kit: 60 Watt
60W monocrystalline pole-top solar kit: High efficiency, no trenching, built for tough traffic beacon power needs
Updated
by Dylan Solberg
Part Number: M75-SPTOP-060W
For use with CTL/CLB controller & collaborators ONLY

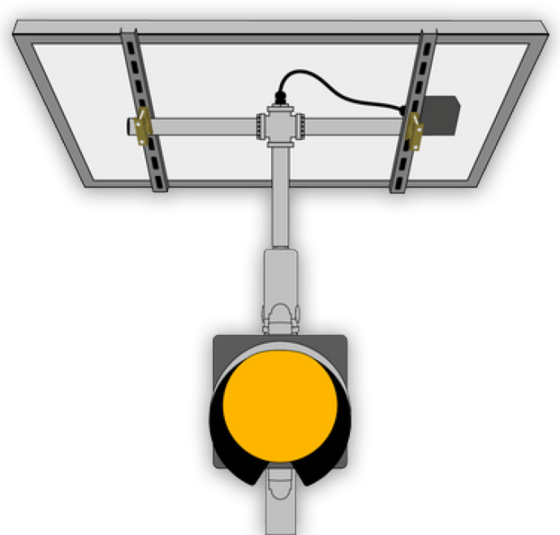

Top of pole mounting for 4.5" Poles
Summary
The Post Top 60W Solar Kit provides increased solar collection capacity for powering TraffiCalm Intelligent Beacons in higher-demand or lower-sunlight regions. Built using monocrystalline solar technology with a rugged pole-top mounting structure, this kit ensures dependable, year-round power delivery without trenching or external AC wiring. All electronics are potted and weather-sealed for long-term reliability.
Product Options
Product is available under a single part number: M75-SPTOP-060W. Configuration is specified at time of order.

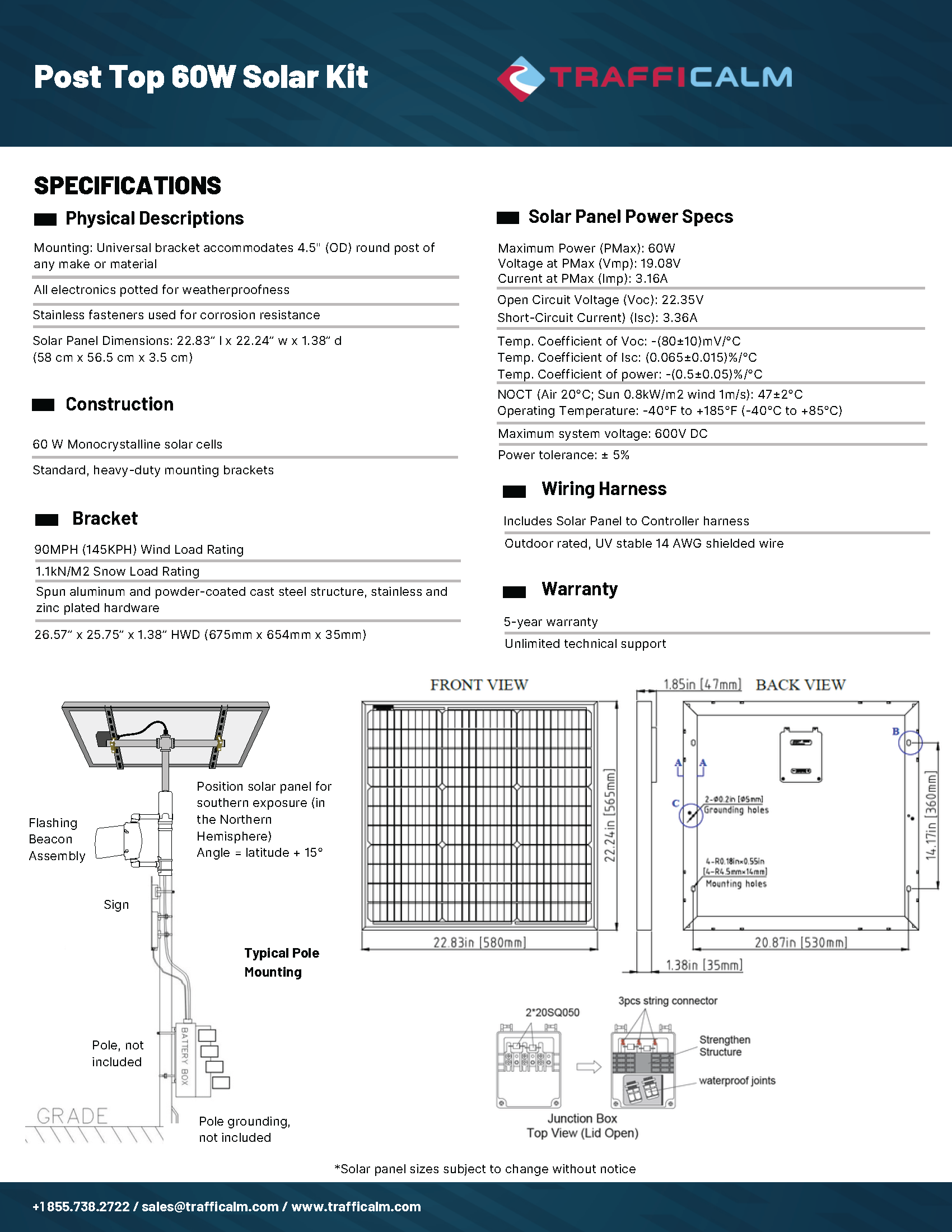

Specifications
Physical Descriptions
- Universal bracket accommodates 4.5" O.D. round posts
- All electronics potted for weatherproofing
- Stainless fasteners for corrosion resistance
- Solar panel dimensions: 22.83" x 22.24" x 1.38" (58 cm x 56.5 cm x 3.5 cm)
Construction
- 60W monocrystalline solar cells
- Standard heavy-duty mounting brackets
- Spun aluminum and powder-coated steel structure
- Stainless and zinc-plated hardware
Bracket
- Wind load rating: 90 mph (145 kph)
- Snow load rating: 1.1 kN/m²
Solar Panel Power Specs
- Maximum Power (PMax): 60 W
- Voltage at PMax (Vmp): 19.08 V
- Current at PMax (Imp): 3.16 A
- Open Circuit Voltage (Voc): 22.35 V
- Short-Circuit Current (Isc): 3.36 A
- Maximum system voltage: 600 V DC
- Power tolerance: ±5%
- Temperature coef. of Voc: −(80±10) mV/°C
- Temperature coef. of Isc: (0.065±0.015)%/°C
- Temperature coef. of power: −(0.5±0.05)%/°C
- NOCT: 47±2°C
- Operating temperature: −40°F to +185°F (−40°C to +85°C)
Wiring Harness
- Includes solar-panel-to-controller harness
- Outdoor-rated UV-stable 14 AWG shielded cabling
Mounting
- Designed for southern solar exposure
- Recommended angle: latitude + 15°
- Pole not included
- Pole grounding not included
Environmental
- Operating temperature: −40°F to +185°F (−40°C to +85°C)
- All electronics hermetically sealed and potted
Warranty
- 5-year limited warranty
- Unlimited technical support for life of unit
Why Choose the Post Top 60W Solar Kit?
- Higher power output for increased system load or reduced sunlight conditions
- No trenching or AC infrastructure required
- Strong wind and snow load ratings
- Dependable monocrystalline panel efficiency
- Built in the USA in an ISO 9001:2015 facility
- Build America / Buy America compliant
