Speed Limit Sign Flashing LED Ring

Part Number: M75-Rxxxx-BW32

Summary

The Speed Limit Sign Flashing LED Ring enhances existing or new regulatory R2-1 Speed Limit signs with high-visibility perimeter illumination. White LEDs arranged around the border of the sign significantly increase driver awareness, especially in adverse conditions. The LED Ring operates on 12 VDC, with options for radar-triggered flashing when vehicles exceed the posted speed, scheduled operation, or continuous flashing.

Product Options

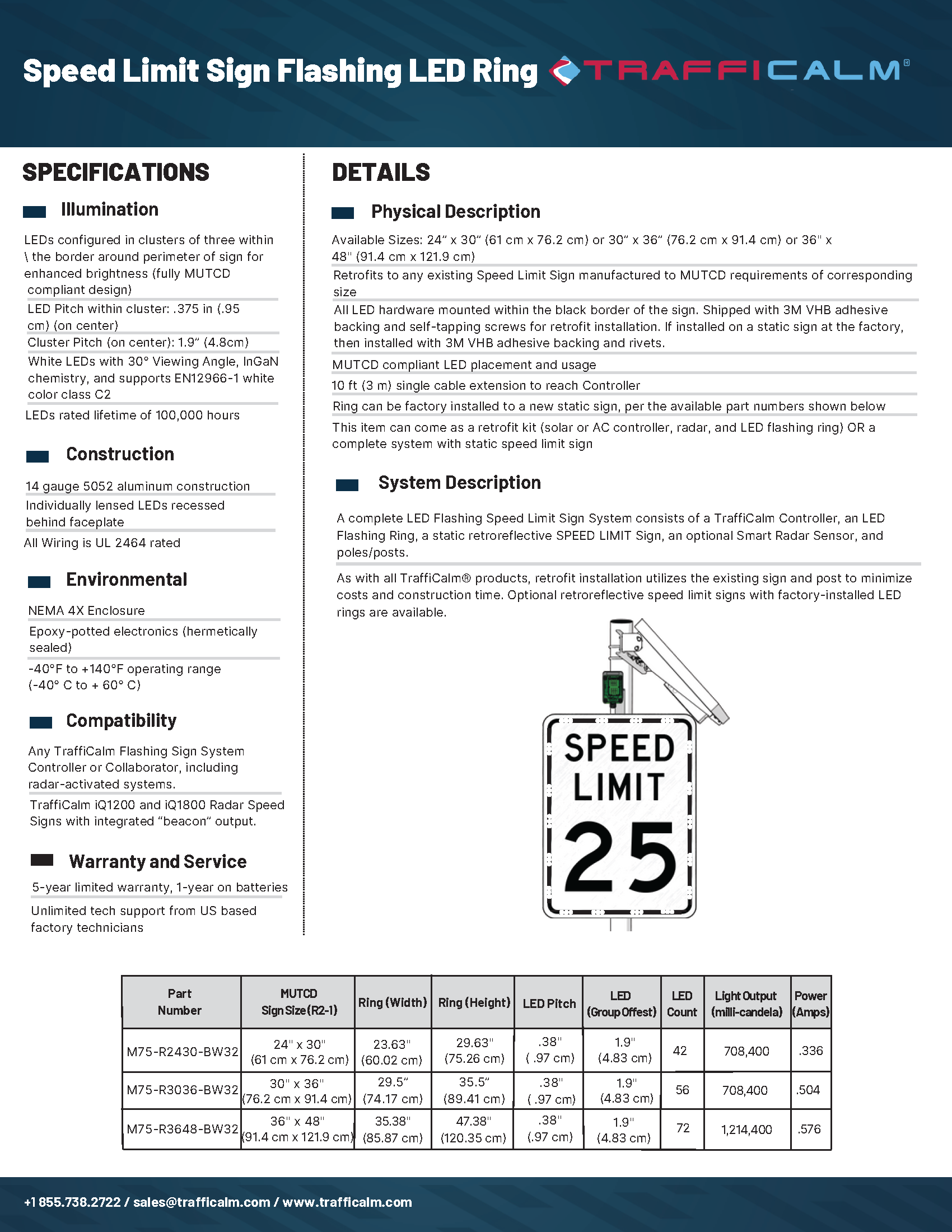

Available configurations as shown in the datasheet:

• M75-R2430-BW32 – for 24" x 30" signs
• M75-R3036-BW32 – for 30" x 36" signs
• M75-R3648-BW32 – for 36" x 48" signs

Specifications

Available Sizes

• 24" x 30"
• 30" x 36"
• 36" x 48"

Illumination

• LEDs arranged in clusters of three around perimeter
• LED pitch inside cluster: 0.375" (0.95 cm)
• Cluster pitch (between groups): 1.9" (4.83 cm)
• White LEDs with 30° viewing angle
• LED lifetime: 100,000 hours
• Placement fully MUTCD-compliant

LED Performance and Electrical

• Operating voltage: 12 VDC
• Light Output (millicandela) and Amperage by size:
  • 24" x 30": 708,400 mcd – 0.336 A – 42 LEDs
  • 30" x 36": 708,400 mcd – 0.504 A – 56 LEDs
  • 36" x 48": 1,214,400 mcd – 0.576 A – 72 LEDs

Construction

• 14-gauge 5052 aluminum construction
• Individually lensed LEDs recessed behind the faceplate
• All electronics epoxy-potted (hermetically sealed)
• Wiring UL-2464 rated

Physical Description

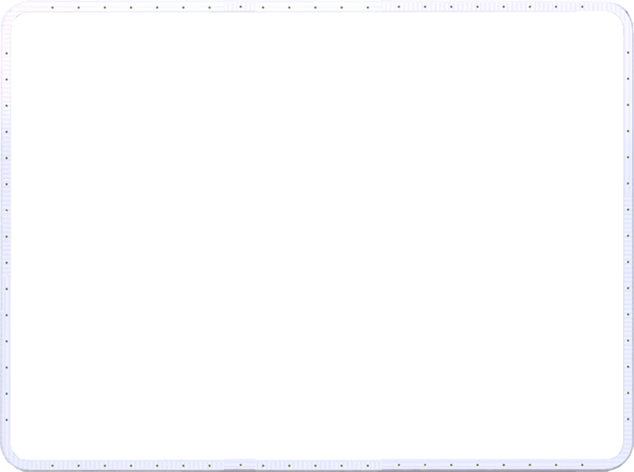

• Ring attaches inside the black sign border
• 10 ft (3 m) single-lead cable to controller
• Available as retrofit ring or factory-installed to static sign

Mounting

• Secured using 3M VHB adhesive & self-tapping screws for retrofit installs
• Rivet-mounting used for factory-installed applications

Compatibility

• Works with any TraffiCalm Flashing Sign System controller or collaborator
• Includes compatibility with iQ1200 / iQ1800 Speed Signs

Environmental

• Operating temperature: −40°F to +140°F (−40°C to +60°C)
• NEMA 4X enclosure rating

Warranty

• 5-year limited warranty
• 1-year warranty on batteries
• Unlimited technical support

Why Choose the Speed Limit Sign Flashing LED Ring?

• Significantly increases the visibility and effectiveness of speed limit postings
• Demonstrated reduction in speeding incidents when flashing is active
• Retrofit-ready for existing signs
• Meets all MUTCD requirements
• Built with rugged, sealed electronics
• Made in the USA
• Build America / Buy America compliant
