Railroad Crossing Advanced Warning LED Ring
MUTCD-compliant LED ring enhances railroad crossing visibility with high-output amber warning system
Updated
by Dylan Solberg
Part Number: M75-RXXXX-BARX
Amber LEDs
Summary
The Railroad Crossing Advanced Warning LED Ring provides high-visibility flashing perimeter illumination for MUTCD-compliant railroad advance warning signs. Using high-output amber LEDs, the ring draws driver attention to upcoming rail crossings, especially in limited-visibility conditions and higher-speed environments. This system integrates with TraffiCalm 12 VDC controllers for activation by timer, sensor, PLC input, or 24-hour operation.
Product Options
Available configurations for standard railroad warning sign sizes:
- M75-R3030-BA44 – 30" warning sign LED ring
- M75-R3636-BA44 – 36" warning sign LED ring
- M75-R4848-BA44 – 48" warning sign LED ring

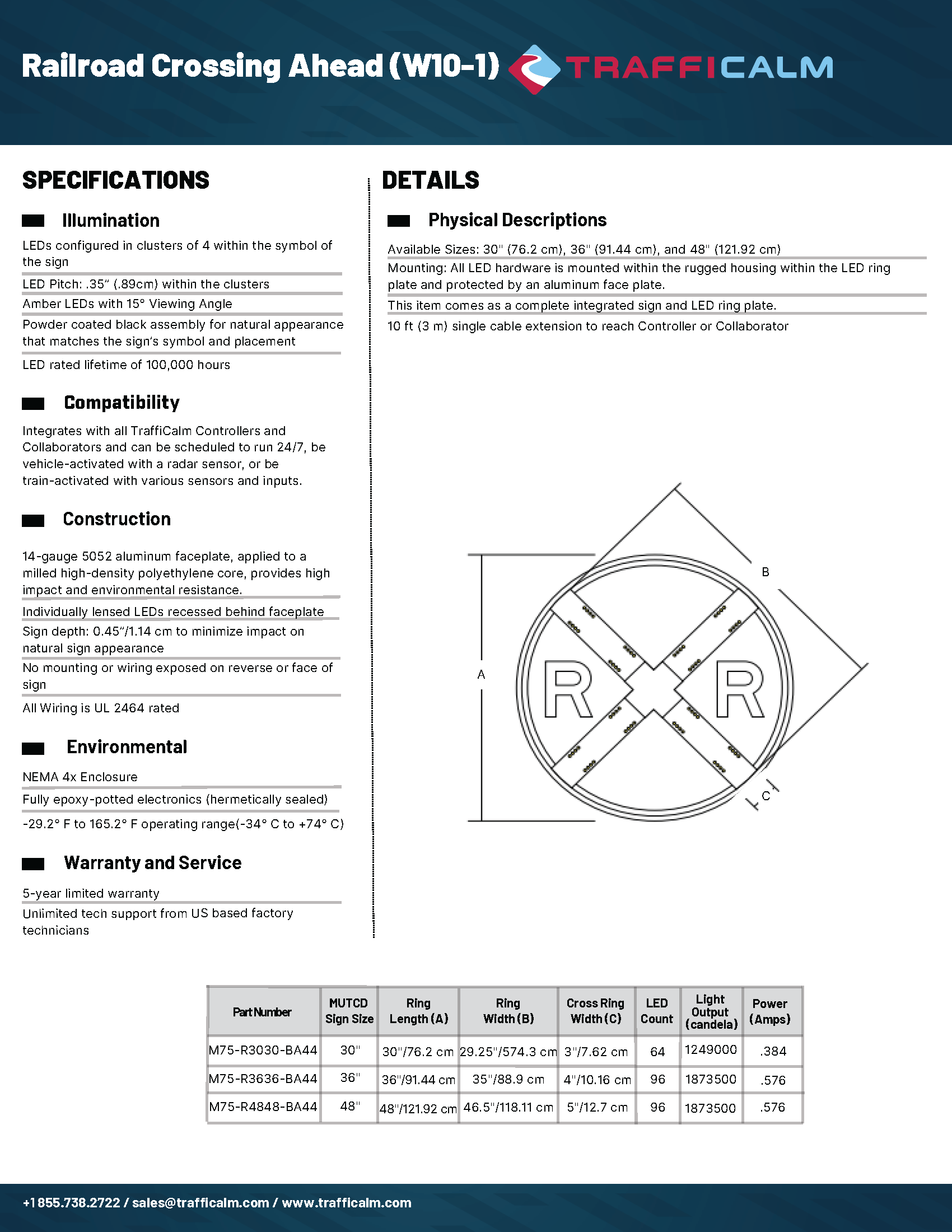

Specifications
Available Sizes
- 30"
- 36"
- 48"
Illumination
- Amber LEDs positioned around sign perimeter
- Individually lensed LEDs
- LED grouping spaced for MUTCD boundary visibility
- LED lifetime rating: 100,000 hours
- Flash rate: 60 flashes per minute
LED Electrical Characteristics
- Operating voltage: 12 VDC
- 30" model power draw: approx. 0.384 A
- 36" model power draw: approx. 0.480 A
- 48" model power draw: approx. 0.672 A
Construction
- 14-gauge aluminum structural base
- Black powder-coated finish
- Fully potted and sealed electronics
- UV-and-weather-resistant design
- UL-rated wiring harness included
Physical Description
- Standard MUTCD advance warning circle geometry
- Ring thickness: approximately 0.4"
- LED cluster spacing: approx. 6" evenly distributed
Mounting
- Installs behind sign or integrated as a complete assembly
- Uses standard mounting holes corresponding to sign pattern
- Includes 10 ft (3 m) cable lead to TraffiCalm controller
Environmental
- Operating temperature: −29.2°F to +165.2°F (−34°C to +74°C)
- IP-rated environmental sealing
Warranty
- 5-year limited warranty on LEDs and electronics
- Unlimited technical support
Why Choose the Railroad Crossing Advanced Warning LED Ring?
- Alerts drivers earlier to rail crossings
- Improves compliance and recognition in low-visibility scenarios
- Simple retrofit installation
- Extremely low power consumption
- Robust weather-sealed construction
- U.S.-built with BABA compliance
- Supports integration into networked TraffiCalm systems
